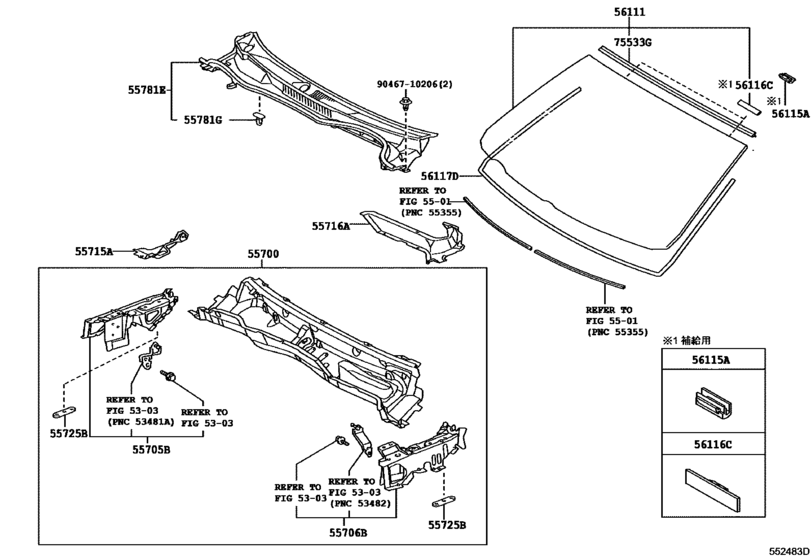

Cowl Panel & Windshield Glass ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55700
|
55700
55700-53905 Panel Assy, Front[04.2009 - 08.2011] GSE2# |
55700-53905 |
US $430.98 |
||
| replacement | |||||
|
55700
|
55700
55700-53907 Panel Assy, Front[04.2009 - 08.2011] GSE2# |
55700-53907 |
US $430.98 |
||
|
55700
|
55700
55700-53907 Panel Assy, Front[08.2011 - 08.2014] GSE2# |
55700-53907 |
US $430.98 |
||
|
55705B
|
55705B
55705-53010 Panel Sub-Assy, Cowl Top Side, Rh[04.2009 - 08.2014] GSE2# |
55705-53010 |
from US $39.75 |
||
|
55706B
|
55706B
55706-53010 Panel Sub-Assy, Cowl Top Side, Lh[04.2009 - 08.2014] GSE2# |
55706-53010 |
US $39.75 |
||
|
55715A
|
55715A
55715-53030 Brace, Cowl Top To Apron, Rh[04.2009 - 08.2014] GSE2# |
55715-53030 |
US $19.95 |
||
|
55716A
|
55716A
55716-53030 Brace, Cowl Top To Apron, Lh[04.2009 - 08.2014] GSE2# |
55716-53030 |
US $22.71 |
||
|
55725B
|
55725B
55725-51020 Reinforcement, Hood Hinge Mounting[04.2009 - 08.2014] GSE2# |
55725-51020 |
US $5.39 |
||
|
55781E
|
55781E
55708-53040
Louver Sub-Assy, Cowl Top Ventilator
[04.2009 - 08.2009] GSE20 |
55708-53040 |
— | ||
| replacement | |||||
|
55781E
|
55781E
55708-53041 Louver Sub-Assy, Cowl Top Ventilator[04.2009 - 08.2009] GSE20 |
55708-53041 |
US $184.96 |
||
|
55781E
|
55781E
55708-53041 Louver Sub-Assy, Cowl Top Ventilator[09.2009 - 08.2014] GSE2# |
55708-53041 |
US $184.96 |
||
|
55781E
|
55781E
55708-53050
Louver Sub-Assy, Cowl Top Ventilator
[04.2009 - 08.2009] GSE20 寒冷地仕様 |
55708-53050 |
— | ||
| replacement | |||||
|
55781E
|
55781E
55708-53051 Louver Sub-Assy, Cowl Top Ventilator[04.2009 - 08.2009] GSE20 寒冷地仕様 |
55708-53051 |
US $226.57 |
||
|
55781E
|
55781E
55708-53051 Louver Sub-Assy, Cowl Top Ventilator[09.2009 - 08.2014] GSE2# 寒冷地仕様 |
55708-53051 |
US $226.57 |
||
|
55781G
|
55781G
90467-08108 Clip(For Hood To Cowl Top Seal)[04.2009 - 08.2014] GSE2# |
90467-08108 |
from US $0.21 |
||
|
56111
|
56111
56101-53320
Glass, Windshield
[04.2009 - 08.2014] GSE2# ＊ＥＨＬ，Ｔ＝４．７６，グリーン,寒冷地仕様 |
56101-53320 |
— | ||
|
56111
|
56111
56101-53330
Glass, Windshield
[04.2009 - 08.2014] GSE2# ＊ＬＡＭ，Ｔ＝４．７６，グリーン |
56101-53330 |
— | ||
|
56115A
|
56115A
56115-30110 Stopper, Windshield Glass, No.1[04.2009 - 08.2014] GSE2# |
56115-30110 |
from US $1.25 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[04.2009 - 08.2014] GSE2# |
56116-22050 |
from US $1.41 |
||
|
56117D
|
56117D
56117-64010 Dam, Window Glass Adhesive[04.2009 - 08.2014] GSE2# 長さ＝２６６５; GSE2# 長さ＝２６６５,寒冷地仕様 |
56117-64010 |
from US $18.01 |
||
|
75533G
|
75533G
75533-53040 Moulding, Windshield, Outside[04.2009 - 08.2014] GSE2# |
75533-53040 |
from US $16 |
||
|
9046710206
|
9046710206
90467-10206 Clip, Front Fender Liner, No.3 |
90467-10206 |
from US $1.10 |
||
