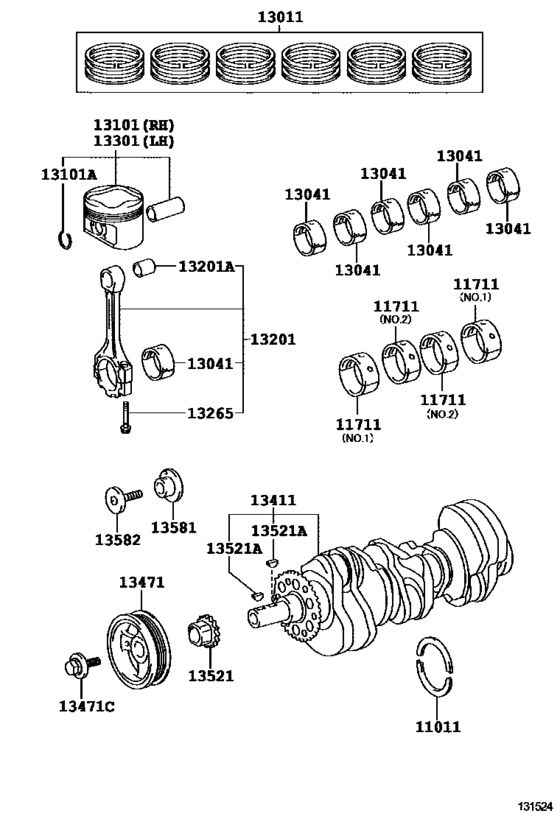

Crankshaft & Piston ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-31060
Washer Set, Crankshaft Thrust
[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# ＳＴＤ |
11011-31060 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-31080 Washer Set, Crankshaft Thrust[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# ＳＴＤ |
11011-31080 |
from US $21.84 |
||
|
11711
|
11711
11071-31031-01
Bearing, Crankshaft
[04.2009 - 08.2014] 4GRFSE..GSE20 MARK1,ＮＯ．２，修理書 参照 |
11071-31031-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-31060-A1 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK1,ＮＯ．２，修理書 参照 |
11071-31060-A1 |
from US $16.80 |
||
|
11711
|
11711
11071-31031-02
Bearing, Crankshaft
[04.2009 - 08.2014] 4GRFSE..GSE20 MARK2,ＮＯ．２，修理書 参照 |
11071-31031-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-31060-B2 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK2,ＮＯ．２，修理書 参照 |
11071-31060-B2 |
from US $16.91 |
||
|
11711
|
11711
11071-31031-03
Bearing, Crankshaft
[04.2009 - 08.2014] 4GRFSE..GSE20 MARK3,ＮＯ．２，修理書 参照 |
11071-31031-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-31060-C3 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK3,ＮＯ．２，修理書 参照 |
11071-31060-C3 |
from US $16.82 |
||
|
11711
|
11711
11071-31031-04 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK4,ＮＯ．２，修理書 参照 |
11071-31031-04 |
US $33.63 |
||
| replacement | |||||
|
11711
|
11711
11071-31060-D4 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK4,ＮＯ．２，修理書 参照 |
11071-31060-D4 |
from US $16.57 |
||
|
11711
|
11711
11071-31031-05 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK5,ＮＯ．２，修理書 参照 |
11071-31031-05 |
US $33.63 |
||
| replacement | |||||
|
11711
|
11711
11071-31060-E5 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK5,ＮＯ．２，修理書 参照 |
11071-31060-E5 |
US $32.61 |
||
|
11711
|
11711
11701-31061-01 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK1,ＮＯ．１，修理書 参照 |
11701-31061-01 |
US $38.29 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-A1 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK1,ＮＯ．１，修理書 参照 |
11701-31100-A1 |
from US $17.90 |
||
|
11711
|
11711
11701-31061-02 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK2,ＮＯ．１，修理書 参照 |
11701-31061-02 |
US $38.29 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-B2 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK2,ＮＯ．１，修理書 参照 |
11701-31100-B2 |
from US $17.86 |
||
|
11711
|
11711
11701-31061-03
Bearing, Crankshaft
[04.2009 - 08.2014] 4GRFSE..GSE20 MARK3,ＮＯ．１，修理書 参照 |
11701-31061-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-31100-C3 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK3,ＮＯ．１，修理書 参照 |
11701-31100-C3 |
from US $17.75 |
||
|
11711
|
11711
11701-31061-04 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK4,ＮＯ．１，修理書 参照 |
11701-31061-04 |
US $38.29 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-D4 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK4,ＮＯ．１，修理書 参照 |
11701-31100-D4 |
from US $20.27 |
||
|
11711
|
11711
11701-31061-05 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK5,ＮＯ．１，修理書 参照 |
11701-31061-05 |
US $38.29 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-E5 Bearing, Crankshaft[04.2009 - 08.2014] 4GRFSE..GSE20 MARK5,ＮＯ．１，修理書 参照 |
11701-31100-E5 |
from US $17.90 |
||
|
13011
|
13011
13011-31120 Ring Set, Piston[04.2009 - 09.2009] 4GRFSE..GSE20 ＳＴＤ |
13011-31120 |
US $269.36 |
||
| replacement | |||||
|
13011
|
13011
13011-31220 Ring Set, Piston[04.2009 - 09.2009] 4GRFSE..GSE20 ＳＴＤ |
13011-31220 |
from US $192.87 |
||
|
13011
|
13011
13011-31121 Ring Set, PistonPISTON [09.2009 - 06.2012] 4GRFSE..GSE20 ＳＴＤ |
13011-31121 |
US $269.36 |
||
| replacement | |||||
|
13011
|
13011
13011-31220 Ring Set, Piston[09.2009 - 06.2012] 4GRFSE..GSE20 ＳＴＤ |
13011-31220 |
from US $192.87 |
||
|
13011
|
13011
13011-31122 Ring Set, Piston[06.2012 - 09.2012] 4GRFSE..GSE20 ＳＴＤ |
13011-31122 |
US $269.36 |
||
| replacement | |||||
|
13011
|
13011
13011-31220 Ring Set, Piston[06.2012 - 09.2012] 4GRFSE..GSE20 ＳＴＤ |
13011-31220 |
from US $192.87 |
||
|
13011
|
13011
13011-31220 Ring Set, Piston[09.2012 - 08.2014] 4GRFSE..GSE20 ＳＴＤ |
13011-31220 |
from US $192.87 |
||
|
13041
|
13041
13041-31060-01 Bearing, Connecting Rod[04.2009 - 08.2014] 4GRFSE..GSE20 MARK1 |
13041-31060-01 |
from US $12.69 |
||
|
13041
|
13041
13041-31060-02 Bearing, Connecting Rod[04.2009 - 08.2014] 4GRFSE..GSE20 MARK2 |
13041-31060-02 |
from US $12.69 |
||
|
13041
|
13041
13041-31060-03 Bearing, Connecting Rod[04.2009 - 08.2014] 4GRFSE..GSE20 MARK3 |
13041-31060-03 |
US $18.49 |
||
|
13041
|
13041
13041-31060-04 Bearing, Connecting Rod[04.2009 - 08.2014] 4GRFSE..GSE20 MARK4 |
13041-31060-04 |
US $18.49 |
||
|
13101
|
13101
13101-31050-A0 Piston Sub-Assy, W/pin[04.2009 - 08.2014] 4GRFSE..GSE20 ＳＴＤ,MARK A,修理書参照 |
13101-31050-A0 |
from US $42.73 |
||
|
13101
|
13101
13101-31050-B0 Piston Sub-Assy, W/pin[04.2009 - 08.2014] 4GRFSE..GSE20 ＳＴＤ,MARK B,修理書参照 |
13101-31050-B0 |
US $59.40 |
||
|
13101
|
13101
13101-31050-C0 Piston Sub-Assy, W/pin[04.2009 - 08.2014] 4GRFSE..GSE20 ＳＴＤ,MARK C,修理書参照 |
13101-31050-C0 |
US $59.40 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
90520-22025 |
from US $1.90 |
||
|
13201
|
13201
13201-39095 Rod Sub-Assy, Connecting[04.2009 - 05.2010] 4GRFSE..GSE20 修理書参照 |
13201-39095 |
US $147.06 |
||
| replacements | |||||
|
13201
|
13201
13201-39095-A0 Rod Sub-Assy, Connecting[04.2009 - 05.2010] 4GRFSE..GSE20 修理書参照 |
13201-39095-A0 |
US $155.50 |
||
|
13201
|
13201
13201-39095-B0 Rod Sub-Assy, Connecting[04.2009 - 05.2010] 4GRFSE..GSE20 修理書参照 |
13201-39095-B0 |
US $110.66 |
||
|
13201
|
13201
13201-39095-C0 Rod Sub-Assy, Connecting[04.2009 - 05.2010] 4GRFSE..GSE20 修理書参照 |
13201-39095-C0 |
US $110.66 |
||
|
13201
|
13201
13201-39095-A0 Rod Sub-Assy, Connecting[05.2010 - 08.2014] 4GRFSE..GSE20 MARK A,修理書参照 |
13201-39095-A0 |
US $155.50 |
||
|
13201
|
13201
13201-39095-B0 Rod Sub-Assy, Connecting[05.2010 - 08.2014] 4GRFSE..GSE20 MARK B,修理書参照 |
13201-39095-B0 |
US $110.66 |
||
|
13201
|
13201
13201-39095-C0 Rod Sub-Assy, Connecting[05.2010 - 08.2014] 4GRFSE..GSE20 MARK C,修理書参照 |
13201-39095-C0 |
US $110.66 |
||
|
13201A
|
13201A
90999-73144 Bush(For Connecting Rod Small End)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
90999-73144 |
from US $2.32 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[04.2009 - 08.2014] 4GRFSE..GSE20 |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[04.2009 - 08.2014] 4GRFSE..GSE20 |
13265-28020 |
from US $2.77 |
||
|
13301
|
13301
13301-31020-A0 Piston Sub-Assy, W/pin, Lh[04.2009 - 08.2014] 4GRFSE..GSE20 ＳＴＤ,MARK A,修理書参照 |
13301-31020-A0 |
US $61.15 |
||
|
13301
|
13301
13301-31020-B0 Piston Sub-Assy, W/pin, Lh[04.2009 - 08.2014] 4GRFSE..GSE20 ＳＴＤ,MARK B,修理書参照 |
13301-31020-B0 |
from US $42.10 |
||
|
13301
|
13301
13301-31020-C0 Piston Sub-Assy, W/pin, Lh[04.2009 - 08.2014] 4GRFSE..GSE20 ＳＴＤ,MARK C,修理書参照 |
13301-31020-C0 |
US $61.15 |
||
|
13411
|
13411
13401-31030 Crankshaft[04.2009 - 07.2014] 4GRFSE..GSE20 |
13401-31030 |
US $1,158.98 |
||
| replacement | |||||
|
13411
|
13411
13401-31031 Crankshaft[04.2009 - 07.2014] 4GRFSE..GSE20 |
13401-31031 |
US $1,052.69 |
||
|
13411
|
13411
13401-31031 Crankshaft[07.2014 - 08.2014] 4GRFSE..GSE20 |
13401-31031 |
US $1,052.69 |
||
|
13471
|
13471
13470-31021 Pulley, Crankshaft[04.2009 - 12.2013] 4GRFSE..GSE20 |
13470-31021 |
US $167.44 |
||
| replacement | |||||
|
13471
|
13471
13470-31022 Pulley, Crankshaft[04.2009 - 12.2013] 4GRFSE..GSE20 |
13470-31022 |
from US $170.30 |
||
|
13471
|
13471
13470-31022 Pulley, Crankshaft[12.2013 - 08.2014] 4GRFSE..GSE20 |
13470-31022 |
from US $170.30 |
||
|
13471C
|
13471C
90119-16004 Bolt(For Crankshaft Pulley Set)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
90119-16004 |
from US $5.07 |
||
|
13521
|
13521
13521-31041 Gear Or Sprocket, Crankshaft Timing[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
13521-31041 |
from US $17.20 |
||
|
13521A
|
13521A
95161-30516 Key(For Oil Pump Drive Spline)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
95161-30516 |
from US $1.06 |
||
|
13581
|
13581
13581-31030 Shaft, Idle Gear, No.1[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
13581-31030 |
from US $6 |
||
|
13582
|
13582
13582-31031 Shaft, Idle Gear, No.2[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
13582-31031 |
from US $2.34 |
||
