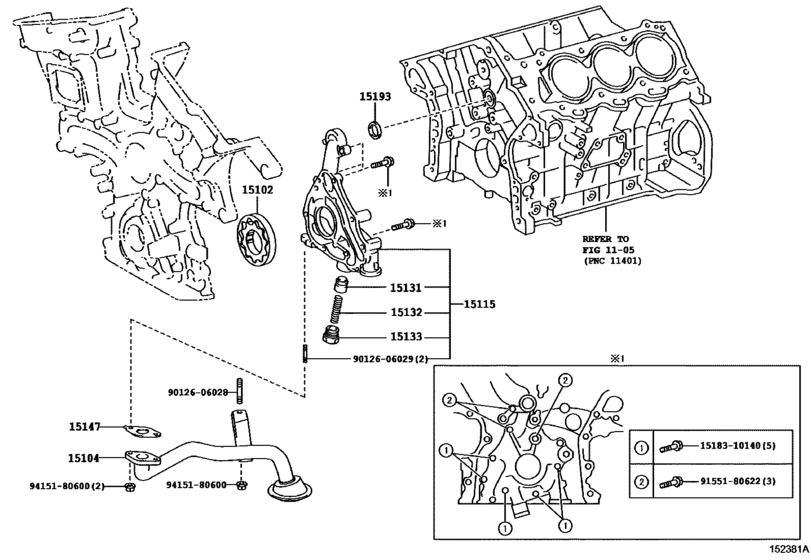

Engine Oil Pump ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15102
|
15102
15103-31050 Rotor Set, Oil Pump[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
15103-31050 |
from US $33.80 |
||
|
15104
|
15104
15104-31080 Strainer Sub-Assy, Oil[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
15104-31080 |
from US $50.43 |
||
|
15115
|
15115
15115-31040 Cover, Oil Pump[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
15115-31040 |
from US $18.34 |
||
|
15131
|
15131
15131-17010 Valve, Oil Pump Relief[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
15131-17010 |
from US $3.36 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
15132-46020 |
from US $1.39 |
||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
15133-28020 |
from US $2.19 |
||
|
15147
|
15147
15147-31060 Gasket, Oil Strainer[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
15147-31060 |
from US $2.58 |
||
|
15193
|
15193
15193-31020 Gasket, Oil Pump[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
15193-31020 |
from US $2.07 |
||
|
1518310140
|
1518310140
15183-10140 Bolt, Union(For Oil Pump) |
15183-10140 |
US $2.62 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.65 |
||
|
9155180622
|
9155180622
91551-80622 BOLT FLANGE |
91551-80622 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
