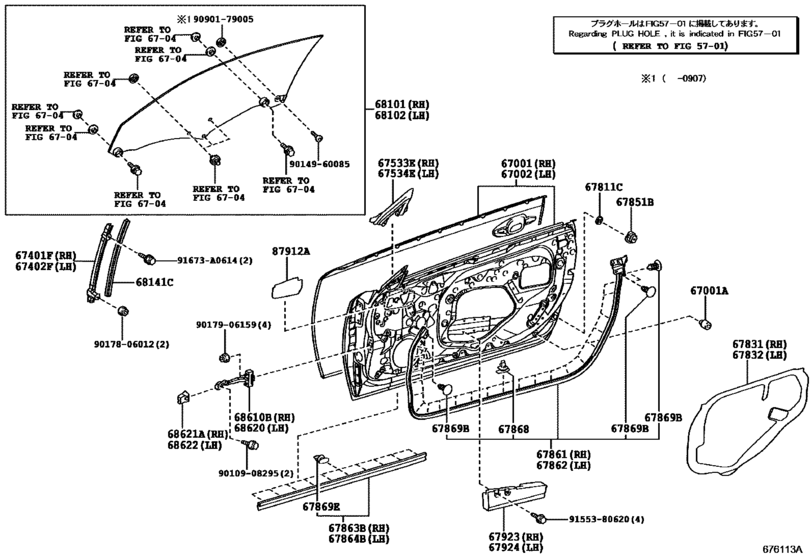

Front Door Panel & Glass ([04.2009 - ] ﾄﾞｱﾊﾟﾈﾙ (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-53060 Panel Sub-Assy, Front Door, RhFRONT DOOR, RH [04.2009 - 08.2014] GSE2# |
67001-53060 |
US $926.02 |
||
|
67001A
|
67001A
90541-09069 Cushion, Hood Bumper[04.2009 - 08.2014] GSE2# |
90541-09069 |
from US $2.17 |
||
|
67002
|
67002
67002-53070 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [04.2009 - 08.2014] GSE2# |
67002-53070 |
US $926.02 |
||
|
67401F
|
67401F
67401-53020 Frame Sub-Assy, Front Door, Front Lower RhFRONT DOOR, FRONT LOWER RH [04.2009 - 08.2014] GSE2# |
67401-53020 |
US $29.56 |
||
|
67402F
|
67402F
67402-53020 Frame Sub-Assy, Front Door, Front Lower LhFRONT DOOR, FRONT LOWER LH [04.2009 - 08.2014] GSE2# |
67402-53020 |
US $29.56 |
||
|
67533E
|
67533E
67533-53010 Seal, Front Door Division Bar, RhFRONT DOOR DIVISION BAR, RH [04.2009 - 08.2014] GSE2# |
67533-53010 |
US $40.48 |
||
|
67534E
|
67534E
67534-53010 Seal, Front Door Division Bar, LhFRONT DOOR DIVISION BAR, LH [04.2009 - 08.2014] GSE2# |
67534-53010 |
US $40.48 |
||
|
67811C
|
67811C
67811-53020 Cover, Front Door HoleFRONT DOOR HOLE [04.2009 - 08.2014] GSE2# |
67811-53020 |
US $1.02 |
||
|
67831
|
67831
67831-53050 Cover, Front Door Service Hole, RhFRONT DOOR SERVICE HOLE, RH [04.2009 - 08.2014] GSE2# |
67831-53050 |
US $16.60 |
||
|
67832
|
67832
67832-53050 Cover, Front Door Service Hole, LhFRONT DOOR SERVICE HOLE, LH [04.2009 - 08.2014] GSE2# |
67832-53050 |
US $16.60 |
||
|
67851B
|
67851B
67844-53020 Cover, Front Door Service Hole, No.5FRONT DOOR SERVICE HOLE, NO.5 [04.2009 - 08.2014] GSE2# |
67844-53020 |
US $2.91 |
||
|
67861
|
67861
67861-53040 Weatherstrip, Front Door, RhFRONT DOOR, RH [04.2009 - 08.2014] GSE2# |
67861-53040 |
US $48.05 |
||
|
67862
|
67862
67862-53040 Weatherstrip, Front Door, LhFRONT DOOR, LH [04.2009 - 08.2014] GSE2# |
67862-53040 |
US $48.05 |
||
|
67863B
|
67863B
67863-53020 Weatherstrip, Front Door, No.2 RhFRONT DOOR, NO.2 RH [04.2009 - 08.2014] GSE2# |
67863-53020 |
US $36.94 |
||
|
67864B
|
67864B
67863-53020 Weatherstrip, Front Door, No.2 RhFRONT DOOR, NO.2 RH [04.2009 - 08.2014] GSE2# |
67863-53020 |
US $36.94 |
||
|
67868
|
67868
67867-12150 Clip(For Hood Air Intake Duct Seal)[04.2009 - 08.2014] GSE2# |
67867-12150 |
from US $1.79 |
||
|
67869B
|
67869B
67869-24010 Clip, Front Door Weatherstrip[04.2009 - 08.2014] GSE2# |
67869-24010 |
US $1.97 |
||
|
67869E
|
67869E
67867-12150 Clip(For Hood Air Intake Duct Seal)[04.2009 - 08.2014] GSE2# |
67867-12150 |
from US $1.79 |
||
|
67923
|
67923
67923-53040 Cushion, Front Door Stiffener, No.1FRONT DOOR STIFFENER, NO.1 [04.2009 - 08.2014] GSE2# |
67923-53040 |
US $30.28 |
||
|
67924
|
67924
67924-53030 Cushion, Front Door Stiffener, No.2FRONT DOOR STIFFENER, NO.2 [04.2009 - 08.2014] GSE2# |
67924-53030 |
US $30.28 |
||
|
68101
|
68101
68101-53060 Glass Sub-Assy, Front Door, RhFRONT DOOR, RH [04.2009 - 08.2012] GSE2# ＊ＵＶＣＴ，厚さ＝５．０，グリーン |
68101-53060 |
US $517.20 |
||
|
68101
|
68101
68101-53120
Glass Sub-Assy, Front Door, Rh
[08.2012 - 08.2014] GSE2# ＊ＵＶＣＴ，厚さ＝５．０，グリーン |
68101-53120 |
— | ||
|
68102
|
68102
68102-53060
Glass Sub-Assy, Front Door, Lh
[04.2009 - 08.2012] GSE2# ＊ＵＶＣＴ，厚さ＝５．０，グリーン |
68102-53060 |
— | ||
|
68102
|
68102
68102-53120
Glass Sub-Assy, Front Door, Lh
[08.2012 - 08.2014] GSE2# ＊ＵＶＣＴ，厚さ＝５．０，グリーン |
68102-53120 |
— | ||
|
68141C
|
68141C
68141-53030 Run, Front Door Glass, RhFRONT DOOR GLASS, RH [04.2009 - 08.2014] GSE2# |
68141-53030 |
US $8.59 |
||
|
68610B
|
68610B
68610-53040 Check Assy, Front Door, RhFRONT DOOR, RH [04.2009 - 08.2011] GSE2# |
68610-53040 |
US $50.09 |
||
| replacement | |||||
|
68610B
|
68610B
68610-53050 Check Assy, Front Door, Rh[04.2009 - 08.2011] GSE2# |
68610-53050 |
US $41.64 |
||
|
68610B
|
68610B
68610-53050 Check Assy, Front Door, Rh[09.2011 - 08.2014] GSE2# |
68610-53050 |
US $41.64 |
||
|
68620
|
68620
68620-53030 Check Assy, Front Door, LhFRONT DOOR, LH [04.2009 - 08.2011] GSE2# |
68620-53030 |
US $50.09 |
||
| replacement | |||||
|
68620
|
68620
68620-53040 Check Assy, Front Door, Lh[04.2009 - 08.2011] GSE2# |
68620-53040 |
US $41.64 |
||
|
68620
|
68620
68620-53040 Check Assy, Front Door, Lh[09.2011 - 08.2014] GSE2# |
68620-53040 |
US $41.64 |
||
|
68621A
|
68621A
68621-53010 Cover, Front Door Check, Rh[04.2009 - 08.2014] GSE2# |
68621-53010 |
from US $2.20 |
||
|
68622
|
68622
68622-53010 Cover, Front Door Check, Lh[04.2009 - 08.2014] GSE2# |
68622-53010 |
from US $2.20 |
||
|
87912A
|
87912A
87912-53030 Protector, Outer MirrorOUTER MIRROR [04.2009 - 08.2014] GSE2# 右側 |
87912-53030 |
US $9.17 |
||
|
87912A
|
87912A
87912-53040 Protector, Outer MirrorOUTER MIRROR [04.2009 - 08.2014] GSE2# 左側 |
87912-53040 |
US $9.17 |
||
|
91673A0614
|
91673A0614
91673-A0614 BOLT, FLANGE W-WASER |
91673-A0614 |
from US $0.63 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.76 |
||
|
9014960085
|
9014960085
90149-60085 New Genuine Part |
90149-60085 |
US $0.61 |
||
|
9017806012
|
9017806012
90178-06012 NUT FLANGE |
90178-06012 |
from US $0.67 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9090179005
|
9090179005
90901-79005 New Genuine Part |
90901-79005 |
US $2.33 |
||
|
9155380620
|
9155380620
91553-80620 BOLT FLANGE |
91553-80620 |
US $1.08 |
||
