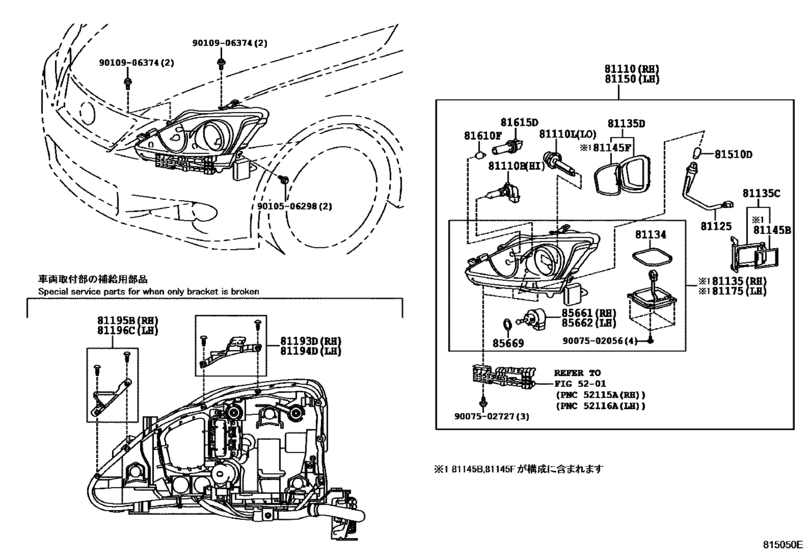

Headlamp ([04.2009 - 08.2010] (0904-1008)) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-53450 Headlamp Assy, RhRH [04.2009 - 08.2010] GSE20 |
81110-53450 |
US $1,907.36 |
||
|
81110
|
81110
81110-53493 Headlamp Assy, Rh[08.2012 - 04.2013] GSE2# Ｆ ＳＰＯＲＴ |
81110-53493 |
US $2,242.24 |
||
|
81110
|
81110
81110-53494 Headlamp Assy, Rh[04.2013 - 08.2014] GSE2# Ｆ ＳＰＯＲＴ |
81110-53494 |
US $1,863.68 |
||
|
81110
|
81110
81110-53590 Headlamp Assy, Rh[08.2010 - 08.2011] GSE2# |
81110-53590 |
US $2,242.24 |
||
|
81110
|
81110
81110-53591 Headlamp Assy, Rh[08.2011 - 09.2011] GSE2# |
81110-53591 |
US $2,242.24 |
||
|
81110
|
81110
81110-53592 Headlamp Assy, Rh[09.2011 - 09.2011] GSE2# |
81110-53592 |
US $2,242.24 |
||
|
81110
|
81110
81110-53593 Headlamp Assy, Rh[09.2011 - 04.2013] GSE2# |
81110-53593 |
US $2,242.24 |
||
|
81110
|
81110
81110-53594 Headlamp Assy, Rh[04.2013 - 08.2014] GSE2# |
81110-53594 |
US $1,863.68 |
||
|
81110B
|
81110B
90981-13046-79 Bulb(For Headlamp, No.1)NO.1) [04.2009 - 08.2014] GSE2# １２Ｖ６５Ｗ（ＳＡＥ），６０Ｗ（ＥＣＥ） |
90981-13046-79 |
US $33.60 |
||
|
81110L
|
81110L
90981-20024-79 Bulb(For Headlamp, No.1)DISCHARGE HEADLAMP [04.2009 - 08.2014] GSE2# ４２Ｖ ３５Ｗ |
90981-20024-79 |
US $208 |
||
|
81125
|
81125
81125-53570 Cord, Headlamp[08.2010 - 08.2014] GSE2# |
81125-53570 |
US $46.66 |
||
|
81125
|
81125
81126-53220 Cord, Headlamp[04.2009 - 08.2010] GSE20 |
81126-53220 |
US $36.40 |
||
|
81134
|
81134
90075-68007 Gasket, Headlamp[04.2009 - 08.2014] GSE2# |
90075-68007 |
from US $7.13 |
||
|
81135
|
81135
81140-53450 Unit Assy, Headlamp, RhHEADLAMP, RH [04.2009 - 08.2010] GSE20 |
81140-53450 |
US $1,326.42 |
||
|
81135
|
81135
81145-53493 Unit Assy, Headlamp, Rh[08.2012 - 04.2013] GSE2# Ｆ ＳＰＯＲＴ |
81145-53493 |
US $1,339.52 |
||
|
81135
|
81135
81145-53494 Unit Assy, Headlamp, Rh[04.2013 - 08.2014] GSE2# Ｆ ＳＰＯＲＴ |
81145-53494 |
US $1,115.30 |
||
|
81135
|
81135
81145-53640 Unit Assy, Headlamp, Rh[08.2010 - 08.2011] GSE2# |
81145-53640 |
US $1,339.52 |
||
|
81135
|
81135
81145-53641 Unit Assy, Headlamp, Rh[08.2011 - 09.2011] GSE2# |
81145-53641 |
US $1,339.52 |
||
|
81135
|
81135
81145-53642 Unit Assy, Headlamp, Rh[09.2011 - 09.2011] GSE2# |
81145-53642 |
US $1,339.52 |
||
|
81135
|
81135
81145-53643 Unit Assy, Headlamp, Rh[09.2011 - 04.2013] GSE2# |
81145-53643 |
US $1,339.52 |
||
|
81135
|
81135
81145-53644 Unit Assy, Headlamp, Rh[04.2013 - 08.2014] GSE2# |
81145-53644 |
US $1,115.30 |
||
|
81135C
|
81135C
81135-53240 Cover, Headlamp Back, No.1[04.2009 - 08.2014] GSE2# |
81135-53240 |
from US $21.76 |
||
|
81135D
|
81135D
81136-53240 Cover, Headlamp Back, No.2[04.2009 - 08.2010] GSE20 右側 |
81136-53240 |
US $13.62 |
||
|
81135D
|
81135D
81176-53240 Cover, Headlamp Back, No.2[04.2009 - 08.2010] GSE20 左側 |
81176-53240 |
from US $9.90 |
||
|
81145B
|
81145B
81132-53240 Gasket, Headlamp Cover, No.1[04.2009 - 08.2014] GSE2# |
81132-53240 |
US $20.83 |
||
|
81145F
|
81145F
81134-53240 Gasket, Headlamp Cover, No.2[04.2009 - 08.2010] GSE20 |
81134-53240 |
US $10.22 |
||
|
81150
|
81150
81150-53450 Headlamp Assy, LhLH [04.2009 - 08.2010] GSE20 |
81150-53450 |
US $1,907.36 |
||
|
81150
|
81150
81150-53493 Headlamp Assy, Lh[08.2012 - 04.2013] GSE2# Ｆ ＳＰＯＲＴ |
81150-53493 |
US $2,242.24 |
||
|
81150
|
81150
81150-53494 Headlamp Assy, Lh[04.2013 - 08.2014] GSE2# Ｆ ＳＰＯＲＴ |
81150-53494 |
US $1,863.68 |
||
|
81150
|
81150
81150-53590 Headlamp Assy, Lh[08.2010 - 08.2011] GSE2# |
81150-53590 |
US $2,242.24 |
||
|
81150
|
81150
81150-53591 Headlamp Assy, Lh[08.2011 - 09.2011] GSE2# |
81150-53591 |
US $2,242.24 |
||
|
81150
|
81150
81150-53592 Headlamp Assy, Lh[09.2011 - 09.2011] GSE2# |
81150-53592 |
US $2,242.24 |
||
|
81150
|
81150
81150-53593 Headlamp Assy, Lh[09.2011 - 04.2013] GSE2# |
81150-53593 |
US $2,242.24 |
||
|
81150
|
81150
81150-53594 Headlamp Assy, Lh[04.2013 - 08.2014] GSE2# |
81150-53594 |
US $1,863.68 |
||
|
81175
|
81175
81070-53450 Unit Assy, Headlamp, LhHEADLAMP, LH [04.2009 - 08.2010] GSE20 |
81070-53450 |
US $1,326.42 |
||
|
81175
|
81175
81185-53493 Unit Assy, Headlamp, Lh[08.2012 - 04.2013] GSE2# Ｆ ＳＰＯＲＴ |
81185-53493 |
US $1,339.52 |
||
|
81175
|
81175
81185-53494 Unit Assy, Headlamp, Lh[04.2013 - 08.2014] GSE2# Ｆ ＳＰＯＲＴ |
81185-53494 |
US $1,115.30 |
||
|
81175
|
81175
81185-53640 Unit Assy, Headlamp, Lh[08.2010 - 08.2011] GSE2# |
81185-53640 |
US $1,339.52 |
||
|
81175
|
81175
81185-53641 Unit Assy, Headlamp, Lh[08.2011 - 09.2011] GSE2# |
81185-53641 |
US $1,339.52 |
||
|
81175
|
81175
81185-53642 Unit Assy, Headlamp, Lh[09.2011 - 09.2011] GSE2# |
81185-53642 |
US $1,339.52 |
||
|
81175
|
81175
81185-53643 Unit Assy, Headlamp, Lh[09.2011 - 04.2013] GSE2# |
81185-53643 |
US $1,339.52 |
||
|
81175
|
81175
81185-53644 Unit Assy, Headlamp, Lh[04.2013 - 08.2014] GSE2# |
81185-53644 |
US $1,115.30 |
||
|
81193D
|
81193D
81193-53020 Retainer, Rh Headlamp Protector, Upper Lh[04.2009 - 08.2014] GSE2# |
81193-53020 |
from US $16.26 |
||
|
81194D
|
81194D
81194-53010 Retainer, Lh Headlamp Protector, Upper Lh[04.2009 - 08.2014] GSE2# |
81194-53010 |
from US $24.62 |
||
|
81195B
|
81195B
81195-53010 Retainer, Rh Headlamp Protector, Lower Rh[04.2009 - 08.2014] GSE2# |
81195-53010 |
from US $7.78 |
||
|
81196C
|
81196C
81196-53020 Retainer, Lh Headlamp Protector, Lower Lh[04.2009 - 08.2014] GSE2# |
81196-53020 |
from US $7.78 |
||
|
81510D
|
81510D
90981-15021-79 Bulb (For Front Turn Signal Lamp)[04.2009 - 08.2014] GSE2# １２Ｖ ２１Ｗ，アンバー |
90981-15021-79 |
US $5.38 |
||
| replacement | |||||
|
81510D
|
81510D
90981-15021 Bulb (For Front Turn Signal Lamp)[04.2009 - 08.2014] GSE2# １２Ｖ ２１Ｗ，アンバー |
90981-15021 |
from US $3.14 |
||
|
81610F
|
81610F
99132-12050-79 Bulb, Room Lamp, No.2[04.2009 - 08.2010] GSE20 １２Ｖ ５Ｗ |
99132-12050-79 |
US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[04.2009 - 08.2010] GSE20 １２Ｖ ５Ｗ |
99132-12050 |
from US $1.97 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[04.2009 - 08.2010] GSE20 |
90075-60077 |
from US $6 |
||
|
85661
|
85661
85661-48030 Motor, Headlamp Leveling, Rh[04.2009 - 08.2014] GSE2# |
85661-48030 |
US $155.79 |
||
|
85662
|
85662
85661-48030 Motor, Headlamp Leveling, Rh[04.2009 - 08.2014] GSE2# |
85661-48030 |
US $155.79 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[04.2009 - 08.2014] GSE2# |
90075-99120 |
from US $2.32 |
||
|
9007502056
|
9007502056
90075-02056 Screw, Headlamp |
90075-02056 |
from US $0.59 |
||
|
9007502727
|
9007502727
90075-02727 Screw, Headlamp |
90075-02727 |
from US $0.65 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.59 |
||
|
9010906374
|
9010906374
90109-06374 BOLT |
90109-06374 |
US $1.08 |
||
