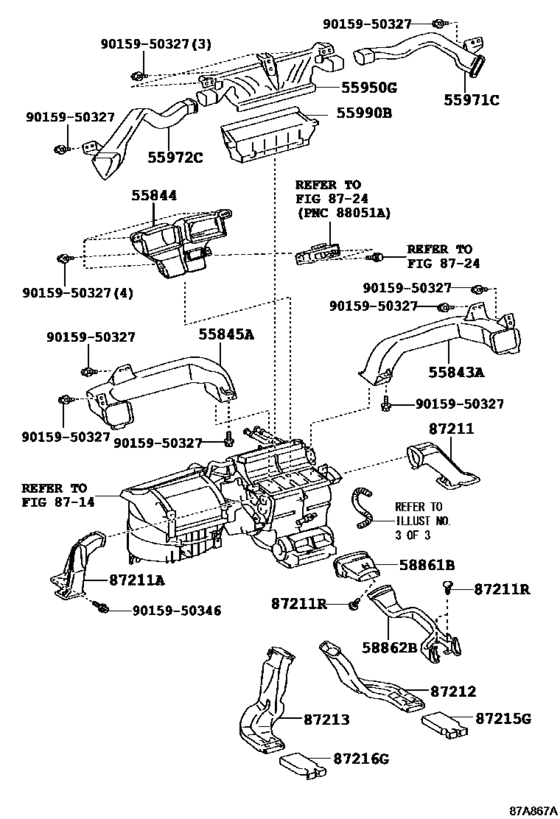

Heating & Air Conditioning - Control & Air Duct ([04.2009 - ] ｴｱﾀﾞｸﾄ (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55843A
|
55843A
55843-53030 Duct, Heater To Register, No.1[04.2009 - 08.2014] GSE2# |
55843-53030 |
US $27.96 |
||
|
55844
|
55844
55844-53040 Duct, Heater To Register, No.2[04.2009 - 08.2014] GSE2# |
55844-53040 |
US $33.34 |
||
|
55845A
|
55845A
55845-53030 Duct, Heater To Register, No.3[04.2009 - 08.2014] GSE2# |
55845-53030 |
US $26.50 |
||
|
55950G
|
55950G
55950-53020 Nozzle Assy, Defroster[04.2009 - 08.2014] GSE2# |
55950-53020 |
US $40.62 |
||
|
55971C
|
55971C
55971-53030 Duct, Side Defroster Nozzle, No.1[04.2009 - 08.2014] GSE2# |
55971-53030 |
US $13.25 |
||
|
55972C
|
55972C
55972-53030 Duct, Side Defroster Nozzle, No.2[04.2009 - 08.2014] GSE2# |
55972-53030 |
US $13.54 |
||
|
55990B
|
55990B
55990-30080 Nozzle Assy, Defroster, Lower[04.2009 - 08.2014] GSE2# |
55990-30080 |
US $27.08 |
||
|
58861B
|
58861B
58861-53010 Duct, Console Box, No.1[04.2009 - 08.2014] GSE2# |
58861-53010 |
US $12.52 |
||
|
58862B
|
58862B
58862-53030 Duct, Console Box, No.2[04.2009 - 08.2014] GSE2# |
58862-53030 |
US $31.74 |
||
|
87211
|
87211
87211-53100
Duct, Air, No.1
[04.2009 - 08.2014] GSE2# |
87211-53100 |
— | ||
|
87211A
|
87211A
87211-30430
Duct, Air, No.2
[04.2009 - 08.2014] GSE2# |
87211-30430 |
— | ||
|
87211R
|
87211R
90467-05162-B0 Clip(For Rear Door Service Hole Cover)[04.2009 - 08.2014] GSE2# DK.GRAY |
90467-05162-B0 |
US $1.25 |
||
|
87212
|
87212
87212-30430 Duct, Air, Rear No.1[04.2009 - 09.2013] GSE2# |
87212-30430 |
US $66.10 |
||
| replacement | |||||
|
87212
|
87212
87212-30431 Duct, Air, Rear No.1[04.2009 - 09.2013] GSE2# |
87212-30431 |
US $57.51 |
||
|
87212
|
87212
87212-30431 Duct, Air, Rear No.1[10.2013 - 08.2014] GSE2# |
87212-30431 |
US $57.51 |
||
|
87213
|
87213
87213-30370 Duct, Air, Rear No.1[04.2009 - 09.2013] GSE2# |
87213-30370 |
US $68.58 |
||
| replacement | |||||
|
87213
|
87213
87213-30371 Duct, Air, Rear No.1[04.2009 - 09.2013] GSE2# |
87213-30371 |
US $56.93 |
||
|
87213
|
87213
87213-30371 Duct, Air, Rear No.1[10.2013 - 08.2014] GSE2# |
87213-30371 |
US $56.93 |
||
|
87215G
|
87215G
87215-53010 Duct, Air, Rear No.4[04.2009 - 08.2014] GSE2# |
87215-53010 |
US $16.31 |
||
|
87216G
|
87216G
87216-53010 Duct, Air, Rear No.2[04.2009 - 08.2014] GSE2# |
87216-53010 |
US $16.31 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9015950346
|
9015950346
90159-50346 SCREW |
90159-50346 |
from US $0.67 |
||
