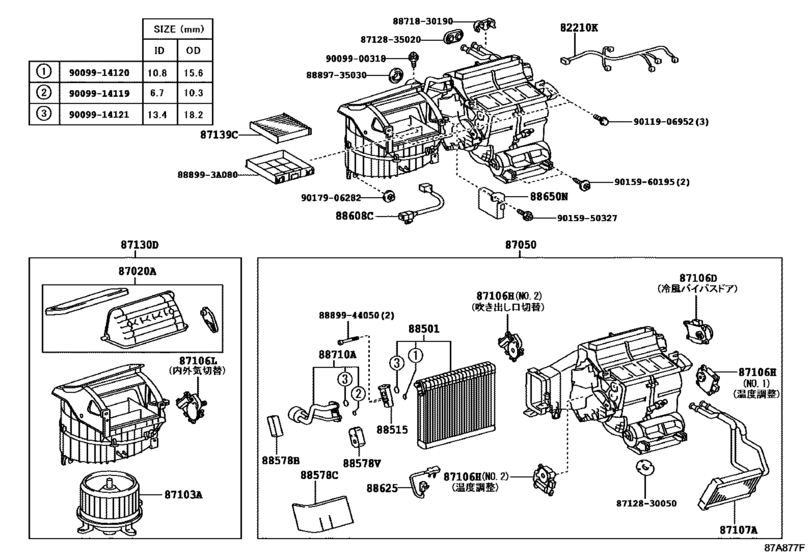

Heating & Air Conditioning - Cooler Unit ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-30013 Harness Assy, Air Conditioner[04.2009 - 08.2014] GSE2# |
82212-30013 |
US $155.79 |
||
| replacement | |||||
|
82210K
|
82210K
82212-30014
Harness Assy, Air Conditioner
[04.2009 - 08.2014] GSE2# |
82212-30014 |
— | ||
|
87020A
|
87020A
87020-30010 Damper Assy, Heater AirHEATER AIR [04.2009 - 08.2014] GSE2# |
87020-30010 |
US $30.41 |
||
|
87050
|
87050
87050-30210 Radiator Assy, Air Conditioner[04.2009 - 07.2011] GSE2# |
87050-30210 |
US $1,377.38 |
||
| replacement | |||||
|
87050
|
87050
87050-30212 Radiator Assy, Air Conditioner[04.2009 - 07.2011] GSE2# |
87050-30212 |
US $1,090.59 |
||
|
87050
|
87050
87050-30211 Radiator Assy, Air Conditioner[07.2011 - 12.2013] GSE2# |
87050-30211 |
US $1,147.33 |
||
| replacement | |||||
|
87050
|
87050
87050-30212 Radiator Assy, Air Conditioner[07.2011 - 12.2013] GSE2# |
87050-30212 |
US $1,090.59 |
||
|
87050
|
87050
87050-30212 Radiator Assy, Air Conditioner[12.2013 - 08.2014] GSE2# |
87050-30212 |
US $1,090.59 |
||
|
87103A
|
87103A
87103-30400
Motor Sub-Assy, Cooling Unit, W/fan
[04.2009 - 10.2010] GSE2# |
87103-30400 |
— | ||
| replacement | |||||
|
87103A
|
87103A
87103-30401 Motor Sub-Assy, Cooling Unit, W/fan[04.2009 - 10.2010] GSE2# |
87103-30401 |
US $326.86 |
||
|
87103A
|
87103A
87103-30401 Motor Sub-Assy, Cooling Unit, W/fan[11.2010 - 08.2014] GSE2# |
87103-30401 |
US $326.86 |
||
|
87106D
|
87106D
87106-30440
Servo Sub-Assy, Damper, No.1
[04.2009 - 08.2014] GSE2# |
87106-30440 |
— | ||
|
87106H
|
87106H
87106-30430
Servo Sub-Assy, Damper(For Airmix)
[04.2009 - 08.2014] GSE2# ＮＯ．１ |
87106-30430 |
— | ||
|
87106H
|
87106H
87106-30450
Servo Sub-Assy, Damper(For Airmix)
[04.2009 - 08.2014] GSE2# ＮＯ．２ |
87106-30450 |
— | ||
|
87106L
|
87106L
87106-30470
Servo Sub-Assy, Damper
[04.2009 - 08.2014] GSE2# |
87106-30470 |
— | ||
|
87107A
|
87107A
87107-30560
Unit Sub-Assy, Heater Radiator
[04.2009 - 08.2014] GSE2# |
87107-30560 |
— | ||
|
87130D
|
87130D
87130-30791
Damper Assy, Heater Air
[04.2009 - 08.2014] GSE2# |
87130-30791 |
— | ||
|
87139C
|
87139C
87139-30040-79 Filter, Clean Air[04.2009 - 08.2012] GSE2# 微細塵フィルタ,工場装着品 |
87139-30040-79 |
US $33.60 |
||
| replacement | |||||
|
87139C
|
87139C
87139-30040 Filter, Clean Air[04.2009 - 08.2012] GSE2# 微細塵フィルタ,工場装着品 |
87139-30040 |
from US $33.60 |
||
|
87139C
|
87139C
87139-50060-79
Filter, Clean Air
[04.2009 - 04.2012] GSE2# 脱臭フィルタ |
87139-50060-79 |
— | ||
|
87139C
|
87139C
87139-50100-79 Filter, Clean Air (Lexus)[05.2012 - 08.2014] GSE2# 花粉脱臭フィルタ |
87139-50100-79 |
US $67.20 |
||
| replacement | |||||
|
87139C
|
87139C
87139-50100 Clean Air Filter (Charcoal type)[05.2012 - 08.2014] GSE2# 花粉脱臭フィルタ |
87139-50100 |
from US $67.20 |
||
|
87139C
|
87139C
87139-52040-79 Filter, Clean Air[08.2012 - 08.2014] GSE2# 花粉フィルタ,工場装着品 |
87139-52040-79 |
US $33.60 |
||
|
88501
|
88501
88501-3A160
Evaporator Sub-Assy, Cooler, No.1
[04.2009 - 07.2011] GSE2# |
88501-3A160 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-3A161 Evaporator Sub-Assy, Cooler, No.1[04.2009 - 07.2011] GSE2# |
88501-3A161 |
US $435.69 |
||
|
88501
|
88501
88501-3A161 Evaporator Sub-Assy, Cooler, No.1[07.2011 - 08.2014] GSE2# |
88501-3A161 |
US $435.69 |
||
|
88515
|
88515
88515-28180 Valve, Cooler Expansion[04.2009 - 07.2011] GSE2# |
88515-28180 |
from US $116.15 |
||
|
88515
|
88515
88515-30780 Valve, Cooler Expansion[07.2011 - 08.2014] GSE2# |
88515-30780 |
from US $97.51 |
||
|
88578B
|
88578B
88578-30830
Packing, Cooling Unit, No.1
[04.2009 - 08.2014] GSE2# |
88578-30830 |
— | ||
|
88578C
|
88578C
88578-30840
Packing, Cooling Unit, No.2
[07.2011 - 08.2014] GSE2# |
88578-30840 |
— | ||
|
88578V
|
88578V
88578-30870
Packing, Cooling Unit, No.2
[07.2011 - 08.2014] GSE2# |
88578-30870 |
— | ||
|
88608C
|
88608C
88608-3A170
Harness Sub-Assy, Wiring Air Conditioner
[04.2009 - 08.2014] GSE2# |
88608-3A170 |
— | ||
|
88625
|
88625
88620-30020 Thermistor, Cooler, No.1[04.2009 - 08.2014] GSE2# |
88620-30020 |
US $23.07 |
||
|
88650N
|
88650N
88650-53250
Amplifier Assy, Air Conditioner
[04.2009 - 07.2010] GSE20 |
88650-53250 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53530
Amplifier Assy, Air Conditioner
[04.2009 - 07.2010] GSE20 |
88650-53530 |
— | ||
|
88650N
|
88650N
88650-53260
Amplifier Assy, Air Conditioner
[04.2009 - 07.2010] GSE20 フロントシート−セミアニリン本革; GSE20 フロントシート−フルレザーブルー＆ホワイトツートンカラー |
88650-53260 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53540
Amplifier Assy, Air Conditioner
[04.2009 - 07.2010] GSE20 フロントシート−セミアニリン本革; GSE20 フロントシート−フルレザーブルー＆ホワイトツートンカラー |
88650-53540 |
— | ||
|
88650N
|
88650N
88650-53380
Amplifier Assy, Air Conditioner
[08.2010 - 01.2011] GSE20 |
88650-53380 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53530
Amplifier Assy, Air Conditioner
[08.2010 - 01.2011] GSE20 |
88650-53530 |
— | ||
|
88650N
|
88650N
88650-53381
Amplifier Assy, Air Conditioner
[02.2011 - 07.2012] GSE20 |
88650-53381 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53530
Amplifier Assy, Air Conditioner
[02.2011 - 07.2012] GSE20 |
88650-53530 |
— | ||
|
88650N
|
88650N
88650-53390
Amplifier Assy, Air Conditioner
[08.2010 - 01.2011] GSE21; GSE20 フロントシート−セミアニリン本革; GSE20 フロントシート−セミアニリン本革 ＆ ツートンカラー |
88650-53390 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53540
Amplifier Assy, Air Conditioner
[08.2010 - 01.2011] GSE21; GSE20 フロントシート−セミアニリン本革; GSE20 フロントシート−セミアニリン本革 ＆ ツートンカラー |
88650-53540 |
— | ||
|
88650N
|
88650N
88650-53391
Amplifier Assy, Air Conditioner
[02.2011 - 08.2011] GSE20 フロントシート−セミアニリン本革 ＆ ツートンカラー |
88650-53391 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53540
Amplifier Assy, Air Conditioner
[02.2011 - 08.2011] GSE20 フロントシート−セミアニリン本革 ＆ ツートンカラー |
88650-53540 |
— | ||
|
88650N
|
88650N
88650-53530
Amplifier Assy, Air Conditioner
[08.2012 - 08.2014] GSE20 |
88650-53530 |
— | ||
|
88650N
|
88650N
88650-53540
Amplifier Assy, Air Conditioner
[08.2012 - 08.2014] GSE21; GSE20 フロントシート−セミアニリン本革; GSE20 フロントシート−セミアニリン本革（Ｆ−ＳＰＯＲＴ） |
88650-53540 |
— | ||
|
88710A
|
88710A
88710-3A260 Tube Assy, Air Conditioner[04.2009 - 07.2011] GSE2# |
88710-3A260 |
US $100.46 |
||
|
88710A
|
88710A
88710-3A420 Tube Assy, Air Conditioner[07.2011 - 08.2014] GSE2# |
88710-3A420 |
from US $81.54 |
||
|
888993A080
|
888993A080
88899-3A080 Parts, Cooling Unit |
88899-3A080 |
from US $6.99 |
||
|
8712830050
|
8712830050
87128-30050
Grommet, Heater
|
87128-30050 |
— | ||
|
8712835020
|
8712835020
87128-35020
Grommet, Heater
|
87128-35020 |
— | ||
|
8871830190
|
8871830190
88718-30190
Pipe, Cooler Refrigerant Suction, No.2
|
88718-30190 |
— | ||
| replacement | |||||
|
8871830190
|
8871830190
88718-30130
Pipe, Cooler Refrigerant Suction, No.2
|
88718-30130 |
— | ||
|
8889735030
|
8889735030
88897-35030
Grommet, (For Cooler Pipe)
|
88897-35030 |
— | ||
|
8889944050
|
8889944050
88899-44050 Bolt, W/Washer |
88899-44050 |
from US $0.84 |
||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.79 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.54 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $1.08 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9015960195
|
9015960195
90159-60195 New Genuine Part |
90159-60195 |
US $0.52 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
