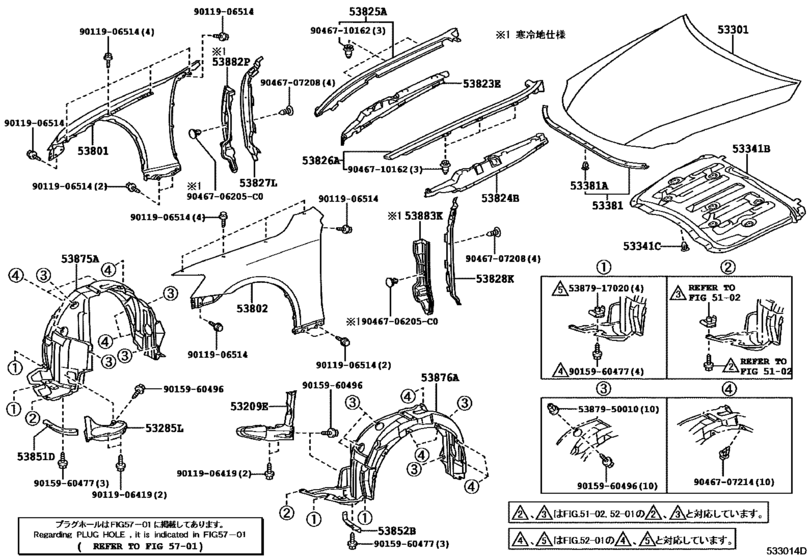

Hood & Front Fender ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53209E
|
53209E
53209-53030 Duct Sub-Assy, Cool Air Intake, No.3[08.2012 - 08.2014] GSE2# Ｆ ＳＰＯＲＴ; GSE2# Ｆ ＳＰＯＲＴ＆寒冷地仕様 |
53209-53030 |
from US $56.25 |
||
|
53209E
|
53209E
53209-53060 Duct Sub-Assy, Cool Air Intake, No.3COOL AIR INTAKE, NO.3 [04.2009 - 08.2014] GSE2# |
53209-53060 |
US $35.96 |
||
|
53285L
|
53285L
53285-53040 Duct, Cool Air Intake, No.2COOL AIR INTAKE, NO.2 [04.2009 - 08.2014] GSE2# |
53285-53040 |
US $33.34 |
||
|
53285L
|
53285L
53285-53050 Duct, Cool Air Intake, No.2[08.2012 - 08.2014] GSE2# Ｆ ＳＰＯＲＴ; GSE2# Ｆ ＳＰＯＲＴ＆寒冷地仕様 |
53285-53050 |
from US $47.17 |
||
|
53301
|
53301
53301-53030 Hood Sub-Assy[04.2009 - 08.2014] GSE2# |
53301-53030 |
from US $1,042.42 |
||
|
53341B
|
53341B
53341-53030 Insulator, Hood[04.2009 - 08.2014] GSE2# |
53341-53030 |
from US $84.45 |
||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[04.2009 - 08.2014] GSE2# |
90467-09050 |
from US $0.84 |
||
|
53381
|
53381
53381-53020 Seal, Hood To Radiator Support[04.2009 - 08.2014] GSE2# |
53381-53020 |
from US $26.22 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[04.2009 - 08.2014] GSE2# |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[04.2009 - 08.2014] GSE2# |
90467-08011-TH |
US $0.30 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [04.2009 - 08.2014] GSE2# |
90467-08011-83 |
US $0.51 |
||
|
53801
|
53801
53801-53120 Fender Sub-Assy, Front RhFRONT RH [04.2009 - 08.2014] GSE2# |
53801-53120 |
US $735.92 |
||
|
53802
|
53802
53802-53120 Fender Sub-Assy, Front LhFRONT LH [04.2009 - 08.2014] GSE2# |
53802-53120 |
US $601.33 |
||
|
53823E
|
53823E
53823-53010 Protector, Front Side Panel, No.2 Rh[04.2009 - 08.2014] GSE2# |
53823-53010 |
US $20.82 |
||
|
53824B
|
53824B
53824-53010 Protector, Front Side Panel, No.2 Lh[04.2009 - 08.2014] GSE2# |
53824-53010 |
from US $20.38 |
||
|
53825A
|
53825A
53807-53011 Protector, Front Fender, Upper Rh[04.2009 - 08.2014] GSE2# |
53807-53011 |
from US $37.71 |
||
|
53826A
|
53826A
53808-53011 Protector, Front Fender, Upper Lh[04.2009 - 08.2014] GSE2# |
53808-53011 |
US $34.86 |
||
|
53827L
|
53827L
53827-53030 Protector, Front Fender Side Panel, RhFRONT FENDER SIDE PANEL, RH [04.2009 - 08.2014] GSE2# |
53827-53030 |
US $29.99 |
||
|
53828K
|
53828K
53828-53030 Protector, Front Fender Side Panel, LhFRONT FENDER SIDE PANEL, LH [04.2009 - 08.2014] GSE2# |
53828-53030 |
US $29.99 |
||
|
53851D
|
53851D
53851-53031 Pad, Front Wheel Opening Extension, Rh[04.2009 - 08.2014] GSE2# |
53851-53031 |
US $51.91 |
||
|
53852B
|
53852B
53852-53031 Pad, Front Wheel Opening Extension, Lh[04.2009 - 08.2014] GSE2# |
53852-53031 |
US $51.91 |
||
|
53875A
|
53875A
53805-53050 Liner, Front Fender, RhFRONT FENDER, RH [04.2009 - 08.2014] GSE2# |
53805-53050 |
US $99.01 |
||
|
53875A
|
53875A
53805-53080 Liner, Front Fender, Rh[08.2012 - 08.2014] GSE2# Ｆ ＳＰＯＲＴ; GSE2# Ｆ ＳＰＯＲＴ＆寒冷地仕様 |
53805-53080 |
US $96.10 |
||
|
53876A
|
53876A
53806-53050 Liner, Front Fender, LhFRONT FENDER, LH [04.2009 - 08.2014] GSE2# |
53806-53050 |
US $168 |
||
|
53876A
|
53876A
53806-53080 Liner, Front Fender, Lh[08.2012 - 08.2014] GSE2# Ｆ ＳＰＯＲＴ; GSE2# Ｆ ＳＰＯＲＴ＆寒冷地仕様 |
53806-53080 |
US $96.10 |
||
|
53882P
|
53882P
53882-53020 Seal, Front Fender, RhFRONT FENDER, RH [04.2009 - 08.2014] GSE2# 寒冷地仕様 |
53882-53020 |
US $25.48 |
||
|
53883K
|
53883K
53883-53020 Seal, Front Fender, LhFRONT FENDER, LH [04.2009 - 08.2014] GSE2# 寒冷地仕様 |
53883-53020 |
US $25.48 |
||
|
5387917020
|
5387917020
53879-17020 Retainer, Front Fender Liner |
53879-17020 |
from US $2.05 |
||
|
5387950010
|
5387950010
53879-50010 Retainer, Front Fender Liner |
53879-50010 |
from US $0.91 |
||
|
9011906419
|
9011906419
90119-06419 BOLT WWASHER |
90119-06419 |
US $2.15 |
||
|
9011906514
|
9011906514
90119-06514 BOLT WWASHER |
90119-06514 |
US $1.79 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.68 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.61 |
||
|
9046706205C0
|
9046706205C0
90467-06205-C0 Clip, Front Fender Side Panel Protector, No.1 |
90467-06205-C0 |
from US $0.67 |
||
|
9046707208
|
9046707208
90467-07208 CLIP |
90467-07208 |
from US $0.89 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.84 |
||
|
9046710162
|
9046710162
90467-10162 Clip, Front Wheel Opening Extensoion |
90467-10162 |
from US $0.86 |
||
