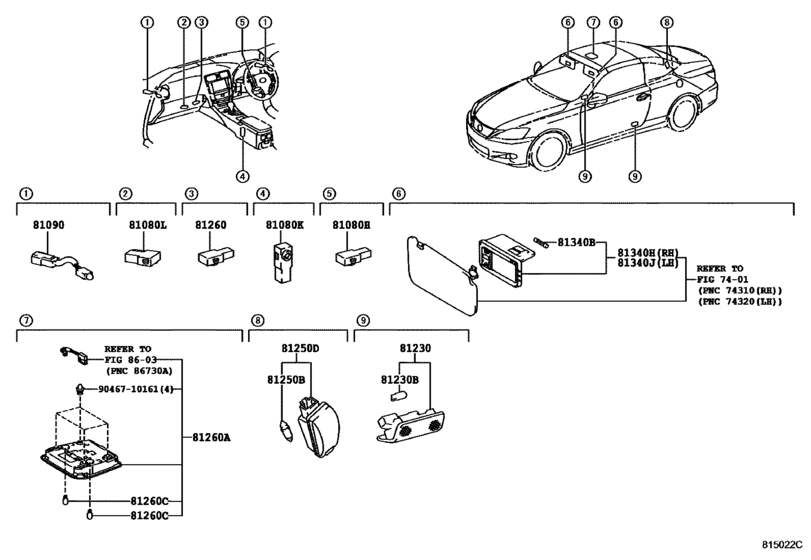

Interior Lamp ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81080H
|
81080H
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[04.2009 - 08.2014] GSE2# |
81080-22040 |
from US $10.05 |
||
|
81080K
|
81080K
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[04.2009 - 08.2014] GSE2# |
81080-22040 |
from US $10.05 |
||
|
81080L
|
81080L
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[04.2009 - 08.2014] GSE2# |
81080-22040 |
from US $10.05 |
||
|
81090
|
81090
81090-53011 Lamp Assy, Interior Illumination, No.2[04.2009 - 08.2014] GSE2# |
81090-53011 |
US $19.22 |
||
|
81230
|
81230
81230-30200 Lamp Assy, Courtesy[03.2013 - 08.2014] GSE2# |
81230-30200 |
from US $12.05 |
||
|
81230
|
81230
81230-47010
Lamp Assy, Courtesy
[08.2010 - 02.2013] GSE2# |
81230-47010 |
— | ||
| replacement | |||||
|
81230
|
81230
81230-30200 Lamp Assy, Courtesy[08.2010 - 02.2013] GSE2# |
81230-30200 |
from US $12.05 |
||
|
81230
|
81230
81230-53020 Lamp Assy, Courtesy[04.2009 - 07.2010] GSE20 |
81230-53020 |
US $26.71 |
||
|
81230B
|
81230B
90981-12010-79 Bulb(For Courtesy Lamp)[04.2009 - 08.2014] GSE2# １２Ｖ ５Ｗ |
90981-12010-79 |
US $1.97 |
||
|
81250B
|
81250B
99132-13050-79 Bulb, Room Lamp, No.2[04.2009 - 08.2014] GSE2# １２Ｖ ５Ｗ |
99132-13050-79 |
US $2.69 |
||
|
81250D
|
81250D
81250-48010 Lamp Assy, Room, No.2[04.2009 - 08.2014] GSE2# |
81250-48010 |
from US $23.31 |
||
|
81260
|
81260
81080-30010 Lamp Assy, Interior Illumination, No.1[04.2009 - 08.2014] GSE2# |
81080-30010 |
US $12.06 |
||
|
81260A
|
81260A
81260-53410-A0 Lamp Assy, MapMAP [04.2009 - 11.2013] GSE20 MELLOW WHITE,TRIM0#,30,31,32 |
81260-53410-A0 |
US $728 |
||
| replacement | |||||
|
81260A
|
81260A
81260-53411-A0 Lamp Assy, Map[04.2009 - 11.2013] GSE20 MELLOW WHITE,TRIM0#,30,31,32 |
81260-53411-A0 |
US $728 |
||
|
81260A
|
81260A
81260-53410-B0 Lamp Assy, MapMAP [04.2009 - 11.2013] GSE20 LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4# |
81260-53410-B0 |
US $728 |
||
| replacement | |||||
|
81260A
|
81260A
81260-53411-B0 Lamp Assy, Map[04.2009 - 11.2013] GSE20 LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4# |
81260-53411-B0 |
US $728 |
||
|
81260A
|
81260A
81260-53411-A0 Lamp Assy, Map[12.2013 - 08.2014] GSE2# MELLOW WHITE,TRIM0# |
81260-53411-A0 |
US $728 |
||
|
81260A
|
81260A
81260-53411-B0 Lamp Assy, Map[12.2013 - 08.2014] GSE2# LT.GRAY,TRIM1#,2#,3#,4# |
81260-53411-B0 |
US $728 |
||
|
81260A
|
81260A
81260-53E50-C0 Lamp Assy, Map[08.2012 - 11.2013] GSE2# Ｆ ＳＰＯＲＴ,BLACK,TRIM2#,3# |
81260-53E50-C0 |
US $728 |
||
| replacement | |||||
|
81260A
|
81260A
81260-53E51-C0 Lamp Assy, Map[08.2012 - 11.2013] GSE2# Ｆ ＳＰＯＲＴ,BLACK,TRIM2#,3# |
81260-53E51-C0 |
US $728 |
||
|
81260A
|
81260A
81260-53E51-C0 Lamp Assy, Map[12.2013 - 08.2014] GSE2# Ｆ ＳＰＯＲＴ,BLACK,TRIM2#,3# |
81260-53E51-C0 |
US $728 |
||
|
81260C
|
81260C
99132-12050-79 Bulb, Room Lamp, No.2[04.2009 - 08.2014] GSE2# １２Ｖ ５Ｗ |
99132-12050-79 |
US $1.97 |
||
| replacement | |||||
|
81260C
|
81260C
99132-12050 Bulb (12V 5W)[04.2009 - 08.2014] GSE2# １２Ｖ ５Ｗ |
99132-12050 |
from US $1.97 |
||
|
81340B
|
81340B
90981-14003-79 Bulb (For Vanity Lamp)[04.2009 - 08.2014] GSE2# １２Ｖ １．５Ｗ |
90981-14003-79 |
US $2.04 |
||
|
81340H
|
81340H
81340-53010-A0 Lamp Assy, Vanity, RhVANITY, RH [04.2009 - 08.2014] GSE20 MELLOW WHITE,TRIM0#,30,31,32 |
81340-53010-A0 |
US $77.17 |
||
|
81340H
|
81340H
81340-53010-B0 Lamp Assy, Vanity, RhVANITY, RH [04.2009 - 08.2014] GSE20 LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4# |
81340-53010-B0 |
US $77.17 |
||
|
81340H
|
81340H
81340-53110-C0 Lamp Assy, Vanity, Rh[08.2012 - 08.2014] GSE2# Ｆ ＳＰＯＲＴ,BLACK,TRIM2#,3# |
81340-53110-C0 |
US $77.17 |
||
|
81340J
|
81340J
81350-53010-A0 Lamp Assy, Vanity, LhVANITY, LH [04.2009 - 08.2014] GSE20 MELLOW WHITE,TRIM0#,30,31,32 |
81350-53010-A0 |
US $77.17 |
||
|
81340J
|
81340J
81350-53010-B0 Lamp Assy, Vanity, LhVANITY, LH [04.2009 - 08.2014] GSE20 LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4# |
81350-53010-B0 |
US $77.17 |
||
|
81340J
|
81340J
81350-53080-C0 Lamp Assy, Vanity, Lh[08.2012 - 08.2014] GSE2# Ｆ ＳＰＯＲＴ,BLACK,TRIM2#,3# |
81350-53080-C0 |
US $77.17 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.87 |
||
