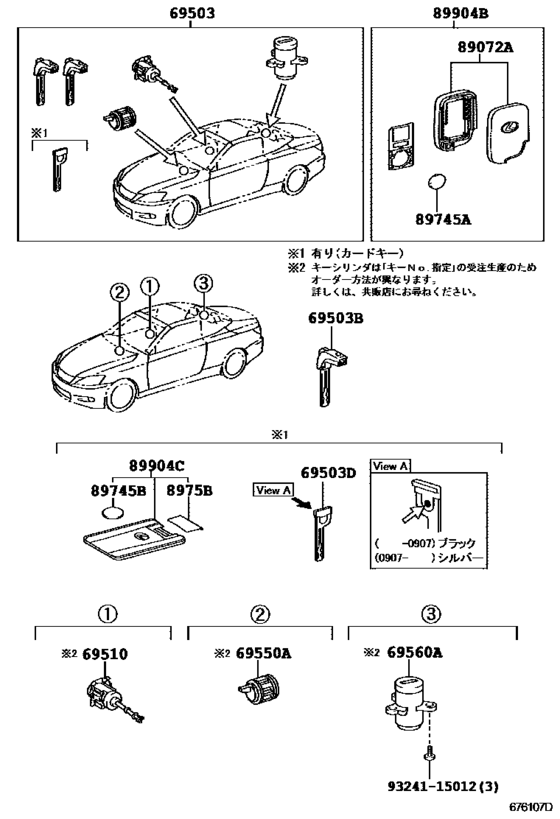

Lock Cylinder Set ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8975B
|
8975B
8975B-50020 Cover, Transmitter Housing[04.2009 - 08.2014] GSE2# 電子キー（２）＆スマートカードキー（１） |
8975B-50020 |
US $1.93 |
||
|
69503
|
69503
69005-53380 Cylinder Set, LockLOCK [04.2009 - 08.2014] GSE2# |
69005-53380 |
US $168.90 |
||
| replacement | |||||
|
69503
|
69503
69005-53420 Cylinder Set, LockLOCK [04.2009 - 08.2014] GSE2# |
69005-53420 |
US $203.84 |
||
|
69503
|
69503
69005-53420 Cylinder Set, LockLOCK [04.2009 - 08.2014] GSE2# 電子キー（２）＆スマートカードキー（１） |
69005-53420 |
US $203.84 |
||
|
69503B
|
69503B
69515-50240 Key, Cut[04.2009 - 08.2014] GSE2# マスターキー |
69515-50240 |
US $127.92 |
||
|
69503D
|
69503D
69515-30330 Key, Cut(Card Key)[07.2009 - 08.2014] GSE2# マスターキー,電子キー（２）＆スマートカードキー（１） |
69515-30330 |
US $116.44 |
||
|
69503D
|
69503D
69515-50220 Key, Cut(Card Key)[04.2009 - 07.2009] GSE20 マスターキー,電子キー（２）＆スマートカードキー（１） |
69515-50220 |
US $127.92 |
||
|
69510
|
69510
69510-53050 Cylinder Assy, Front Door Lock, RhFRONT DOOR LOCK, RH [04.2009 - 08.2014] GSE2# |
69510-53050 |
US $154.34 |
||
|
69550A
|
69550A
69550-50040 Cylinder Assy, Glove Compartment Door Lock[04.2009 - 08.2014] GSE2# |
69550-50040 |
US $133.95 |
||
|
69560A
|
69560A
69509-53010 Cylinder Assy, Luggage Compartment Door LockLUGGAGE COMPARTMENT DOOR LOCK [04.2009 - 08.2014] GSE2# |
69509-53010 |
US $139.78 |
||
|
89072A
|
89072A
89072-53221 Housing Set, Door Control Transmitter[04.2009 - 08.2014] GSE2# |
89072-53221 |
US $58.97 |
||
|
89745A
|
89745A
89745-52020 Battery, Transmitter[04.2009 - 08.2014] GSE2# |
89745-52020 |
from US $7.88 |
||
|
89745B
|
89745B
89745-50030 Battery, Transmitter(Card Key)[04.2009 - 08.2014] GSE2# 電子キー（２）＆スマートカードキー（１） |
89745-50030 |
from US $8.36 |
||
|
89904B
|
89904B
89904-50370 Transmitter Sub-Assy, Electrical Key[04.2009 - 06.2011] GSE2# |
89904-50370 |
US $318.86 |
||
| replacement | |||||
|
89904B
|
89904B
89904-53490 Transmitter Sub-Assy, Electrical Key[04.2009 - 06.2011] GSE2# |
89904-53490 |
US $443.04 |
||
|
89904B
|
89904B
89904-53490 Transmitter Sub-Assy, Electrical Key[06.2011 - 08.2014] GSE2# |
89904-53490 |
US $443.04 |
||
|
89904C
|
89904C
89904-50470 Transmitter Sub-Assy, Electrical Key(Card Key)[04.2009 - 06.2011] GSE2# 電子キー（２）＆スマートカードキー（１） |
89904-50470 |
US $519.79 |
||
| replacement | |||||
|
89904C
|
89904C
89904-53500 Transmitter Sub-Assy, Electrical Key(Card Key)[04.2009 - 06.2011] GSE2# 電子キー（２）＆スマートカードキー（１） |
89904-53500 |
US $432.43 |
||
|
89904C
|
89904C
89904-53500 Transmitter Sub-Assy, Electrical Key(Card Key)[06.2011 - 08.2014] GSE2# 電子キー（２）＆スマートカードキー（１） |
89904-53500 |
US $432.43 |
||
|
9324115012
|
9324115012
93241-15012 New Genuine Part |
93241-15012 |
US $0.90 |
||
