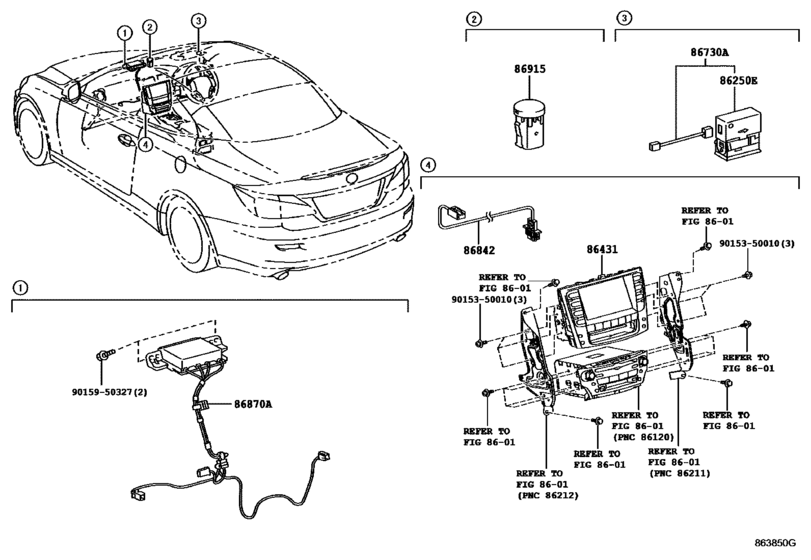

Navigation & Front Monitor Display ([09.2004 - 08.2012] (0409-1208)) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86250E
|
86250E
86250-52020 Microphone Assy, Amplifier[04.2009 - 08.2014] GSE2# |
86250-52020 |
US $59.75 |
||
|
86431
|
86431
86431-53100 Display, Display & Navigation ModuleDISPLAY & NAVIGATION MODULE [04.2009 - 08.2009] GSE20 ＤＥＮＳＯ |
86431-53100 |
US $10,570.56 |
||
|
86431
|
86431
86431-53220 Display, Display & Navigation ModuleDISPLAY & NAVIGATION MODULE [04.2009 - 08.2009] GSE20 j |
86431-53220 |
US $10,570.56 |
||
|
86431
|
86431
86431-53430 Display, Display & Navigation Module[08.2009 - 09.2009] GSE20 ＤＥＮＳＯ |
86431-53430 |
US $10,570.56 |
||
|
86431
|
86431
86431-53431 Display, Display & Navigation Module[09.2009 - 04.2010] GSE20 ＤＥＮＳＯ |
86431-53431 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53432 Display, Display & Navigation Module[09.2009 - 04.2010] GSE20 ＤＥＮＳＯ |
86431-53432 |
US $10,570.56 |
||
|
86431
|
86431
86431-53432 Display, Display & Navigation Module[04.2010 - 08.2010] GSE20 ＤＥＮＳＯ |
86431-53432 |
US $10,570.56 |
||
|
86431
|
86431
86431-53530 Display, Display & Navigation Module[08.2009 - 09.2009] GSE20 j |
86431-53530 |
US $10,570.56 |
||
|
86431
|
86431
86431-53531 Display, Display & Navigation Module[09.2009 - 03.2010] GSE20 j |
86431-53531 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53532 Display, Display & Navigation Module[09.2009 - 03.2010] GSE20 j |
86431-53532 |
US $10,570.56 |
||
|
86431
|
86431
86431-53532 Display, Display & Navigation Module[04.2010 - 07.2010] GSE20 j |
86431-53532 |
US $10,570.56 |
||
|
86431
|
86431
86431-53740 Display, Display & Navigation Module[08.2010 - 09.2010] GSE20 ＤＥＮＳＯ |
86431-53740 |
US $10,570.56 |
||
|
86431
|
86431
86431-53741 Display, Display & Navigation Module[09.2010 - 04.2011] GSE20 ＤＥＮＳＯ |
86431-53741 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53742 Display, Display & Navigation Module[09.2010 - 04.2011] GSE20 ＤＥＮＳＯ |
86431-53742 |
US $10,570.56 |
||
|
86431
|
86431
86431-53742 Display, Display & Navigation Module[04.2011 - 08.2011] GSE20 ＤＥＮＳＯ |
86431-53742 |
US $10,570.56 |
||
|
86431
|
86431
86431-53750 Display, Display & Navigation Module[08.2010 - 09.2010] GSE20 j |
86431-53750 |
US $10,570.56 |
||
|
86431
|
86431
86431-53751 Display, Display & Navigation Module[09.2010 - 03.2011] GSE20 j |
86431-53751 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53752 Display, Display & Navigation Module[09.2010 - 03.2011] GSE20 j |
86431-53752 |
US $10,570.56 |
||
|
86431
|
86431
86431-53752 Display, Display & Navigation Module[04.2011 - 08.2011] GSE20 j |
86431-53752 |
US $10,570.56 |
||
|
86431
|
86431
86431-53B10 Display, Display & Navigation Module[08.2011 - 09.2011] GSE20 ＤＥＮＳＯ |
86431-53B10 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53B13 Display, Display & Navigation Module[08.2011 - 09.2011] GSE20 ＤＥＮＳＯ |
86431-53B13 |
US $10,570.56 |
||
|
86431
|
86431
86431-53B11 Display, Display & Navigation Module[09.2011 - 10.2011] GSE20 ＤＥＮＳＯ |
86431-53B11 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53B13 Display, Display & Navigation Module[09.2011 - 10.2011] GSE20 ＤＥＮＳＯ |
86431-53B13 |
US $10,570.56 |
||
|
86431
|
86431
86431-53B12 Display, Display & Navigation Module[10.2011 - 05.2012] GSE20 ＤＥＮＳＯ |
86431-53B12 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53B13 Display, Display & Navigation Module[10.2011 - 05.2012] GSE20 ＤＥＮＳＯ |
86431-53B13 |
US $10,570.56 |
||
|
86431
|
86431
86431-53B13 Display, Display & Navigation Module[06.2012 - 08.2012] GSE20 ＤＥＮＳＯ |
86431-53B13 |
US $10,570.56 |
||
|
86431
|
86431
86431-53C10 Display, Display & Navigation Module[08.2011 - 09.2011] GSE20 j |
86431-53C10 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53C13 Display, Display & Navigation Module[08.2011 - 09.2011] GSE20 j |
86431-53C13 |
US $10,570.56 |
||
|
86431
|
86431
86431-53C11 Display, Display & Navigation Module[09.2011 - 10.2011] GSE20 j |
86431-53C11 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53C13 Display, Display & Navigation Module[09.2011 - 10.2011] GSE20 j |
86431-53C13 |
US $10,570.56 |
||
|
86431
|
86431
86431-53C12 Display, Display & Navigation Module[10.2011 - 05.2012] GSE20 j |
86431-53C12 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53C13 Display, Display & Navigation Module[10.2011 - 05.2012] GSE20 j |
86431-53C13 |
US $10,570.56 |
||
|
86431
|
86431
86431-53C13 Display, Display & Navigation Module[06.2012 - 08.2012] GSE20 j |
86431-53C13 |
US $10,570.56 |
||
|
86730A
|
86730A
86730-53030 Microphone Assy, TelephoneTELEPHONE [04.2009 - 08.2014] GSE2# |
86730-53030 |
US $85.90 |
||
|
86842
|
86842
86842-53100
Wire, Navigation, No.1
[04.2009 - 08.2012] GSE2# |
86842-53100 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 08.2014] GSE2# |
86842-53200 |
US $48.78 |
||
|
86870A
|
86870A
86870-53030 Antenna Assy, Gps & VicsGPS & VICS [04.2009 - 08.2012] GSE2# |
86870-53030 |
US $476.11 |
||
|
86915
|
86915
86915-60010 Transceiver, Optical Beacon[04.2009 - 08.2014] GSE2# |
86915-60010 |
US $190.74 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
