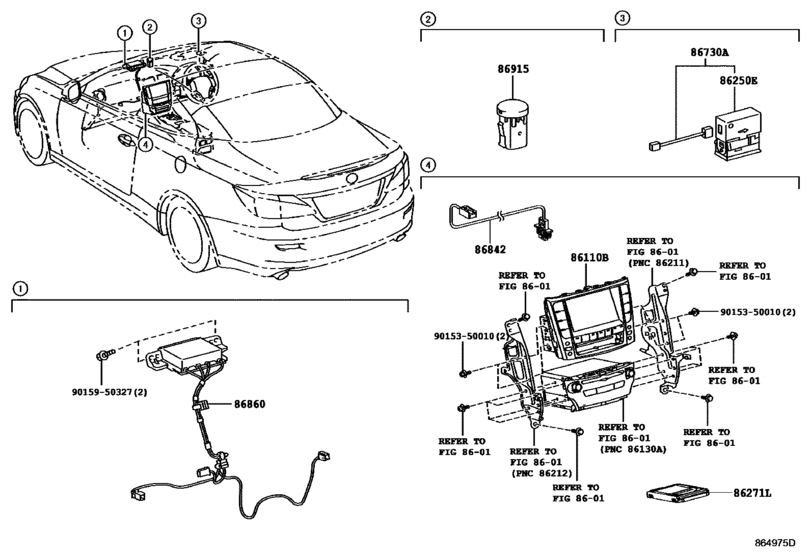

Navigation & Front Monitor Display ([08.2012 - ] (1208- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86110B
|
86110B
86110-53290 Multi-Display Assy[08.2012 - 08.2014] GSE20 ＤＥＮＳＯ |
86110-53290 |
US $1,572.48 |
||
|
86110B
|
86110B
86110-53310 Multi-Display Assy[08.2012 - 08.2014] GSE20 j |
86110-53310 |
US $1,572.48 |
||
|
86250E
|
86250E
86250-52020 Microphone Assy, Amplifier[04.2009 - 08.2014] GSE2# |
86250-52020 |
US $59.75 |
||
|
86271L
|
86271L
86271-30661 Hard Disc[08.2012 - 09.2012] GSE2# |
86271-30661 |
US $1,142.96 |
||
| replacement | |||||
|
86271L
|
86271L
86271-22110 Hard Disc[08.2012 - 09.2012] GSE2# |
86271-22110 |
US $1,086.44 |
||
|
86271L
|
86271L
86271-30662 Hard Disc[09.2012 - 04.2013] GSE2# |
86271-30662 |
US $1,142.96 |
||
| replacement | |||||
|
86271L
|
86271L
86271-22110 Hard Disc[09.2012 - 04.2013] GSE2# |
86271-22110 |
US $1,086.44 |
||
|
86271L
|
86271L
86271-30663 Hard Disc[04.2013 - 08.2013] GSE2# |
86271-30663 |
US $952.22 |
||
| replacement | |||||
|
86271L
|
86271L
86271-22110 Hard Disc[04.2013 - 08.2013] GSE2# |
86271-22110 |
US $1,086.44 |
||
|
86271L
|
86271L
86271-30664 Hard Disc[09.2013 - 03.2014] GSE2# |
86271-30664 |
US $952.22 |
||
| replacement | |||||
|
86271L
|
86271L
86271-22110 Hard Disc[09.2013 - 03.2014] GSE2# |
86271-22110 |
US $1,086.44 |
||
|
86271L
|
86271L
86271-30665 Hard Disc[04.2014 - 08.2014] GSE2# |
86271-30665 |
US $952.22 |
||
| replacement | |||||
|
86271L
|
86271L
86271-22110 Hard Disc[04.2014 - 08.2014] GSE2# |
86271-22110 |
US $1,086.44 |
||
|
86730A
|
86730A
86730-53030 Microphone Assy, TelephoneTELEPHONE [04.2009 - 08.2014] GSE2# |
86730-53030 |
US $85.90 |
||
|
86842
|
86842
86842-53100
Wire, Navigation, No.1
[04.2009 - 08.2012] GSE2# |
86842-53100 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 08.2014] GSE2# |
86842-53200 |
US $48.78 |
||
|
86860
|
86860
86880-53020 Antenna Assy, Navigation[08.2012 - 08.2014] GSE2# |
86880-53020 |
US $192.19 |
||
|
86915
|
86915
86915-60010 Transceiver, Optical Beacon[04.2009 - 08.2014] GSE2# |
86915-60010 |
US $190.74 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
