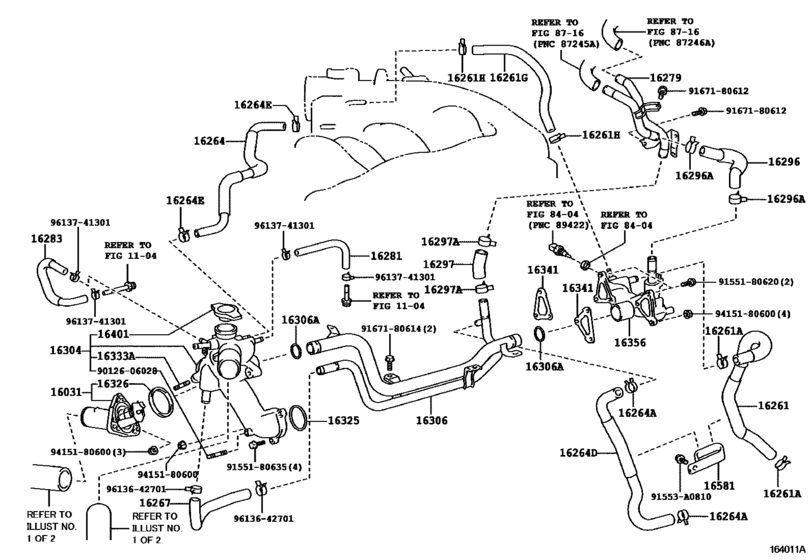

Radiator & Water Outlet ([04.2009 - ] (0904- )4GRFSE) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16031
|
16031
16031-31020 Water Inlet Sub-Assy, W/thermostat[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16031-31020 |
from US $37.30 |
||
|
16261
|
16261
16261-31040 Hose, Water By-Pass[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16261-31040 |
from US $15.09 |
||
|
16261A
|
16261A
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
96136-42101 |
from US $2.85 |
||
|
16261G
|
16261G
16261-31071 Hose, Water By-Pass, No.1[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16261-31071 |
US $8.42 |
||
|
16261H
|
16261H
96137-51501 Clip(For Water By-Pass Hose Assy)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
96137-51501 |
US $2.15 |
||
|
16264
|
16264
16264-31060 Hose, Water By-Pass, No.2[04.2009 - 11.2011] 2GRFSE,4GRFSE..GSE2# |
16264-31060 |
US $18.05 |
||
| replacement | |||||
|
16264
|
16264
16264-31120 Hose, Water By-Pass, No.2[04.2009 - 11.2011] 2GRFSE,4GRFSE..GSE2# |
16264-31120 |
from US $16.11 |
||
|
16264
|
16264
16264-31120 Hose, Water By-Pass, No.2[11.2011 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16264-31120 |
from US $16.11 |
||
|
16264A
|
16264A
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
96136-42101 |
from US $2.85 |
||
|
16264D
|
16264D
16264-31030 Hose, Water By-Pass, No.2[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16264-31030 |
from US $17.42 |
||
|
16264E
|
16264E
96137-51501 Clip(For Water By-Pass Hose Assy)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
96137-51501 |
US $2.15 |
||
|
16267
|
16267
16267-31021 Hose, Water By-Pass, No.3[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16267-31021 |
from US $14.23 |
||
|
16279
|
16279
16279-31050 Pipe, Water By-Pass, No.3[04.2009 - 08.2014] 4GRFSE..GSE20 |
16279-31050 |
US $54.60 |
||
|
16281
|
16281
16281-31021 Hose, Water By-Pass, No.4[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16281-31021 |
from US $5 |
||
|
16283
|
16283
16283-31010 Hose, Water By-Pass, No.6[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16283-31010 |
from US $5 |
||
|
16296
|
16296
16296-31030 Hose, Water By-Pass, No.8[04.2009 - 08.2014] 4GRFSE..GSE20 寒冷地仕様 |
16296-31030 |
US $6.81 |
||
|
16296
|
16296
16296-31040 Hose, Water By-Pass, No.8[04.2009 - 08.2014] 4GRFSE..GSE20 |
16296-31040 |
US $7.28 |
||
|
16296A
|
16296A
96136-42701 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2009 - 08.2014] 4GRFSE..GSE20 |
96136-42701 |
from US $3.25 |
||
|
16297
|
16297
16297-31030
Hose, Water By-Pass, No.9
[04.2009 - 12.2010] 2GRFSE,4GRFSE..GSE2# |
16297-31030 |
— | ||
| replacement | |||||
|
16297
|
16297
16297-31031 Hose, Water By-Pass, No.9[04.2009 - 12.2010] 2GRFSE,4GRFSE..GSE2# |
16297-31031 |
US $8.42 |
||
|
16297
|
16297
16297-31031 Hose, Water By-Pass, No.9[01.2011 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16297-31031 |
US $8.42 |
||
|
16297A
|
16297A
96136-42701 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2009 - 08.2014] 4GRFSE..GSE20 |
96136-42701 |
from US $3.25 |
||
|
16304
|
16304
16304-31033 Outlet Sub-Assy, Water[04.2009 - 09.2011] 2GRFSE,4GRFSE..GSE2# |
16304-31033 |
US $147.06 |
||
| replacement | |||||
|
16304
|
16304
16304-31037 Outlet Sub-Assy, Water[04.2009 - 09.2011] 2GRFSE,4GRFSE..GSE2# |
16304-31037 |
from US $89.68 |
||
|
16304
|
16304
16304-31034 Outlet Sub-Assy, Water[09.2011 - 08.2012] 2GRFSE,4GRFSE..GSE2# |
16304-31034 |
US $147.06 |
||
| replacement | |||||
|
16304
|
16304
16304-31037 Outlet Sub-Assy, Water[09.2011 - 08.2012] 2GRFSE,4GRFSE..GSE2# |
16304-31037 |
from US $89.68 |
||
|
16304
|
16304
16304-31035 Outlet Sub-Assy, Water[08.2012 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16304-31035 |
US $122.30 |
||
| replacement | |||||
|
16304
|
16304
16304-31037 Outlet Sub-Assy, Water[08.2012 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16304-31037 |
from US $89.68 |
||
|
16306
|
16306
16306-31031 Pipe Sub-Assy, Water Outlet[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16306-31031 |
from US $44.71 |
||
|
16306A
|
16306A
96761-35025 Ring, O(For Water Outlet Pipe)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
96761-35025 |
from US $2.47 |
||
|
16325
|
16325
16325-31010 Gasket, Water Inlet Housing, No.1[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16325-31010 |
from US $1.14 |
||
|
16326
|
16326
16326-31020 Gasket, Water Inlet Housing, No.2[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16326-31020 |
US $1.24 |
||
|
16333A
|
16333A
92122-80618 Bolt, Stud(For Water Outlet Housing)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
92122-80618 |
US $0.87 |
||
|
16341
|
16341
16341-31010 Gasket, Water Outlet[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16341-31010 |
from US $4.60 |
||
|
16356
|
16356
16356-31021 Joint, Water By-Pass, Rear[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16356-31021 |
US $96.10 |
||
|
16401
|
16401
16401-31650 Cap Sub-Assy, Radiator[05.2009 - 09.2011] 2GRFSE,4GRFSE..GSE2# |
16401-31650 |
from US $16.97 |
||
|
16401
|
16401
16401-31680 Cap Sub-Assy, Radiator[09.2011 - 08.2012] 2GRFSE,4GRFSE..GSE2# |
16401-31680 |
from US $16.31 |
||
|
16401
|
16401
16401-31791 Cap Sub-Assy, Radiator[08.2012 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16401-31791 |
from US $16.97 |
||
|
16401
|
16401
16401-75440
Cap Sub-Assy, Radiator
[04.2009 - 05.2009] 4GRFSE..GSE20 |
16401-75440 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-31650 Cap Sub-Assy, Radiator[04.2009 - 05.2009] 4GRFSE..GSE20 |
16401-31650 |
from US $16.97 |
||
|
16581
|
16581
16581-31010 Clamp, Hose(For Water Hose)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
16581-31010 |
US $6.55 |
||
|
91553A0810
|
91553A0810
91553-A0810 New Genuine Part |
91553-A0810 |
US $1.02 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.63 |
||
|
9155180635
|
9155180635
91551-80635 Bolt(For Head To Camshaft Bearing Cap) |
91551-80635 |
from US $0.76 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.65 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9613642701
|
9613642701
96136-42701 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96136-42701 |
from US $3.25 |
||
|
9613741301
|
9613741301
96137-41301 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96137-41301 |
from US $2.07 |
||
