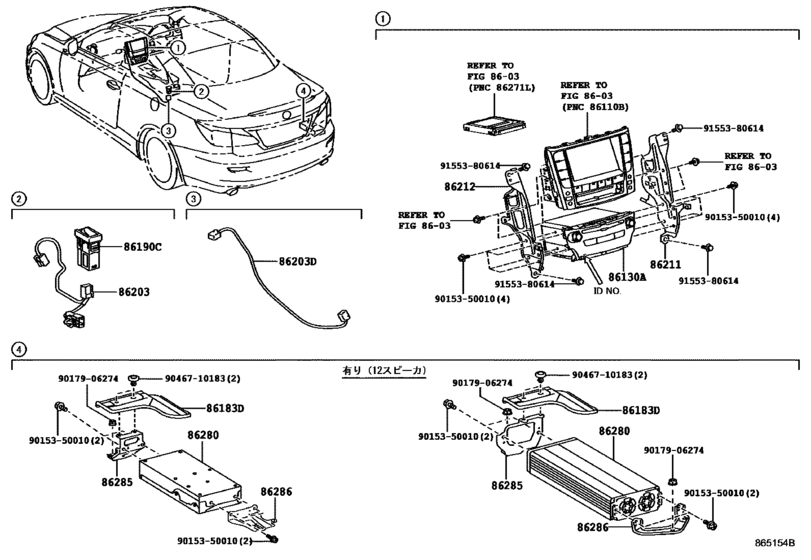

Radio Receiver & Amplifier & Condenser ([08.2012 - ] (1208- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86130A
|
86130A
86804-53F40 Receiver Assy, Multi-Media Module[08.2012 - 11.2012] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０３５９,オーディオ−ＡＭ／ＦＭ ＤＶＤ １２スピーカ |
86804-53F40 |
US $6,726.72 |
||
| replacement | |||||
|
86130A
|
86130A
86804-53F42 Receiver Assy, Multi-Media Module[08.2012 - 11.2012] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０３５９,オーディオ−ＡＭ／ＦＭ ＤＶＤ １２スピーカ |
86804-53F42 |
US $5,605.60 |
||
|
86130A
|
86130A
86804-53F41 Receiver Assy, Multi-Media Module[12.2012 - 03.2013] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０３５９,オーディオ−ＡＭ／ＦＭ ＤＶＤ １２スピーカ |
86804-53F41 |
US $6,726.72 |
||
| replacement | |||||
|
86130A
|
86130A
86804-53F42 Receiver Assy, Multi-Media Module[12.2012 - 03.2013] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０３５９,オーディオ−ＡＭ／ＦＭ ＤＶＤ １２スピーカ |
86804-53F42 |
US $5,605.60 |
||
|
86130A
|
86130A
86804-53F42 Receiver Assy, Multi-Media Module[04.2013 - 08.2014] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０３５９,オーディオ−ＡＭ／ＦＭ ＤＶＤ １２スピーカ |
86804-53F42 |
US $5,605.60 |
||
|
86130A
|
86130A
86804-53F50 Receiver Assy, Multi-Media Module[08.2012 - 11.2012] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０３６０ |
86804-53F50 |
US $6,726.72 |
||
|
86130A
|
86130A
86804-53F51 Receiver Assy, Multi-Media Module[12.2012 - 03.2013] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０３６０ |
86804-53F51 |
US $6,726.72 |
||
| replacement | |||||
|
86130A
|
86130A
86804-53F52 Receiver Assy, Multi-Media Module[12.2012 - 03.2013] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０３６０ |
86804-53F52 |
US $5,605.60 |
||
|
86130A
|
86130A
86804-53F52 Receiver Assy, Multi-Media Module[04.2013 - 08.2014] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０３６０ |
86804-53F52 |
US $5,605.60 |
||
|
86130A
|
86130A
86804-53M50 Receiver Assy, Multi-Media Module[08.2012 - 11.2012] GSE2# @１２スピーカ |
86804-53M50 |
US $6,726.72 |
||
|
86130A
|
86130A
86804-53M51 Receiver Assy, Multi-Media Module[12.2012 - 03.2013] GSE2# @１２スピーカ |
86804-53M51 |
US $6,726.72 |
||
| replacement | |||||
|
86130A
|
86130A
86804-53M52 Receiver Assy, Multi-Media Module[12.2012 - 03.2013] GSE2# @１２スピーカ |
86804-53M52 |
US $5,605.60 |
||
|
86130A
|
86130A
86804-53M52 Receiver Assy, Multi-Media Module[04.2013 - 08.2014] GSE2# @１２スピーカ |
86804-53M52 |
US $5,605.60 |
||
|
86130A
|
86130A
86804-53M60 Receiver Assy, Multi-Media Module[08.2012 - 11.2012] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０４１０,Ｆ ＳＰＯＲＴ |
86804-53M60 |
US $6,726.72 |
||
| replacement | |||||
|
86130A
|
86130A
86804-53M62 Receiver Assy, Multi-Media Module[08.2012 - 11.2012] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０４１０,Ｆ ＳＰＯＲＴ |
86804-53M62 |
US $5,605.60 |
||
|
86130A
|
86130A
86804-53M61 Receiver Assy, Multi-Media Module[12.2012 - 03.2013] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０４１０,Ｆ ＳＰＯＲＴ |
86804-53M61 |
US $6,726.72 |
||
| replacement | |||||
|
86130A
|
86130A
86804-53M62 Receiver Assy, Multi-Media Module[12.2012 - 03.2013] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０４１０,Ｆ ＳＰＯＲＴ |
86804-53M62 |
US $5,605.60 |
||
|
86130A
|
86130A
86804-53M62 Receiver Assy, Multi-Media Module[04.2013 - 08.2014] GSE2# ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ１０４１０,Ｆ ＳＰＯＲＴ |
86804-53M62 |
US $5,605.60 |
||
|
86183D
|
86183D
86183-53010 Cover, Audio AmplifierAUDIO AMPLIFIER [04.2009 - 08.2014] GSE2# |
86183-53010 |
US $20.68 |
||
|
86190C
|
86190C
86190-53040 Adapter Assy, Stereo Jack, No.1STEREO JACK, NO.1 [04.2009 - 08.2014] GSE2# |
86190-53040 |
US $113.57 |
||
|
86203
|
86203
86203-53010 Wire, RadioRADIO [04.2009 - 08.2014] GSE2# |
86203-53010 |
US $13.40 |
||
|
86203D
|
86203D
86203-53050 Wire, Stereo Component, No.1STEREO COMPONENT, NO.1 [04.2009 - 08.2012] GSE2# |
86203-53050 |
US $15.87 |
||
|
86203D
|
86203D
86203-53200 Wire, Stereo Component, No.1[08.2012 - 08.2014] GSE2# |
86203-53200 |
US $77.17 |
||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[04.2009 - 08.2012] GSE2# |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53070 Bracket, Radio, No.1[08.2012 - 08.2014] GSE2# |
86211-53070 |
US $8.74 |
||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[04.2009 - 08.2012] GSE2# |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53070 Bracket, Radio, No.2[08.2012 - 08.2014] GSE2# |
86212-53070 |
US $8.74 |
||
|
86280
|
86280
86280-0W630 Amplifier Assy, Stereo ComponentSTEREO COMPONENT [04.2009 - 08.2012] GSE2# オーディオ−ＡＭ／ＦＭ ＤＶＤチェンジャ ＭＤ １２スピーカ ナビゲーション |
86280-0W630 |
US $1,630.72 |
||
|
86280
|
86280
86280-0WB10
Amplifier Assy, Stereo Component
[08.2012 - 08.2014] GSE2# オーディオ−ＡＭ／ＦＭ ＤＶＤ １２スピーカ |
86280-0WB10 |
— | ||
|
86280
|
86280
86280-53130 Amplifier Assy, Stereo ComponentSTEREO COMPONENT [04.2009 - 08.2012] GSE2# |
86280-53130 |
US $1,616.16 |
||
|
86280
|
86280
86280-53200
Amplifier Assy, Stereo Component
[08.2012 - 08.2014] GSE2# |
86280-53200 |
— | ||
|
86285
|
86285
86285-53060 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [04.2009 - 08.2014] GSE2# |
86285-53060 |
US $10.05 |
||
|
86285
|
86285
86285-53070 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [04.2009 - 08.2012] GSE2# オーディオ−ＡＭ／ＦＭ ＤＶＤチェンジャ ＭＤ １２スピーカ ナビゲーション |
86285-53070 |
US $9.32 |
||
|
86286
|
86286
86286-53060 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [04.2009 - 08.2014] GSE2# |
86286-53060 |
US $9.17 |
||
|
86286
|
86286
86286-53070 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [04.2009 - 08.2012] GSE2# オーディオ−ＡＭ／ＦＭ ＤＶＤチェンジャ ＭＤ １２スピーカ ナビゲーション |
86286-53070 |
US $8.59 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.82 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
