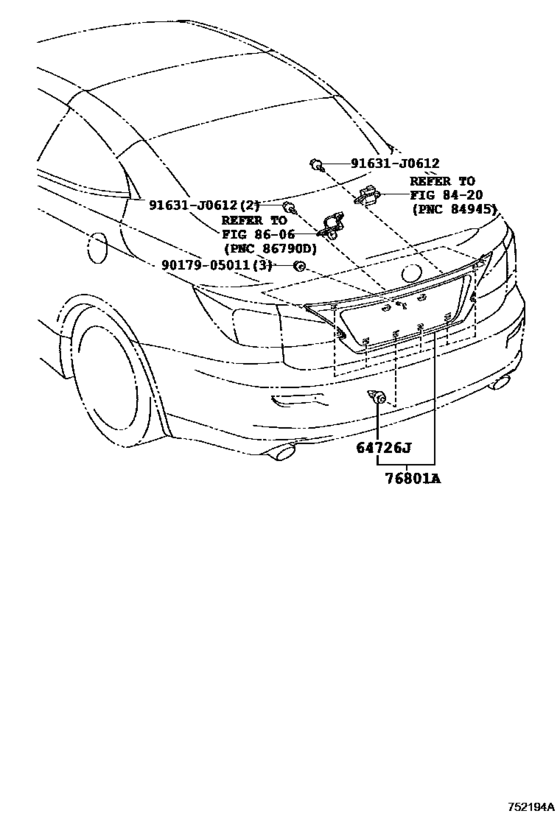

Rear Moulding ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64726J
|
64726J
64726-30080 Clip, Luggage Trim, Rear[04.2009 - 08.2014] GSE2# |
64726-30080 |
US $1.61 |
||
|
76801A
|
76801A
76801-53060-A0 Garnish Sub-Assy, Luggage Compartment Door, OutsideLUGGAGE COMPARTMENT DOOR, OUTSIDE [04.2009 - 08.2014] GSE2# WHITE PEARL CS.,077 |
76801-53060-A0 |
US $248.98 |
||
|
76801A
|
76801A
76801-53060-A1 Garnish Sub-Assy, Luggage Compartment Door, Outside[08.2012 - 08.2014] GSE2# WHITE NOVA GF.,083 |
76801-53060-A1 |
US $248.98 |
||
|
76801A
|
76801A
76801-53060-B0 Garnish Sub-Assy, Luggage Compartment Door, OutsideLUGGAGE COMPARTMENT DOOR, OUTSIDE [04.2009 - 08.2011] GSE2# DK.GRAY MC.,1G0 |
76801-53060-B0 |
US $299.94 |
||
|
76801A
|
76801A
76801-53060-B1 Garnish Sub-Assy, Luggage Compartment Door, OutsideLUGGAGE COMPARTMENT DOOR, OUTSIDE [04.2009 - 08.2012] GSE2# SILVER M.M.,1G1 |
76801-53060-B1 |
US $299.94 |
||
|
76801A
|
76801A
76801-53060-B2 Garnish Sub-Assy, Luggage Compartment Door, Outside[08.2011 - 08.2014] GSE2# MERCURY GRAY MC.,1H9 |
76801-53060-B2 |
US $248.98 |
||
|
76801A
|
76801A
76801-53060-B3 Garnish Sub-Assy, Luggage Compartment Door, Outside[08.2012 - 08.2014] GSE2# PLATINUM SILVER ME.,1J4 |
76801-53060-B3 |
US $248.98 |
||
|
76801A
|
76801A
76801-53060-C0 Garnish Sub-Assy, Luggage Compartment Door, OutsideLUGGAGE COMPARTMENT DOOR, OUTSIDE [04.2009 - 08.2014] GSE2# BLACK,212 |
76801-53060-C0 |
US $248.98 |
||
|
76801A
|
76801A
76801-53060-D0 Garnish Sub-Assy, Luggage Compartment Door, OutsideLUGGAGE COMPARTMENT DOOR, OUTSIDE [04.2009 - 08.2014] GSE2# RED MC.CS.,3R1 |
76801-53060-D0 |
US $248.98 |
||
|
76801A
|
76801A
76801-53060-J0 Garnish Sub-Assy, Luggage Compartment Door, OutsideLUGGAGE COMPARTMENT DOOR, OUTSIDE [04.2009 - 08.2010] GSE20 DK.BLUE MC. CC.,8U0 |
76801-53060-J0 |
US $299.94 |
||
|
76801A
|
76801A
76801-53060-J1 Garnish Sub-Assy, Luggage Compartment Door, OutsideLUGGAGE COMPARTMENT DOOR, OUTSIDE [04.2009 - 08.2014] GSE2# BLUE ME.,8U1 |
76801-53060-J1 |
US $248.98 |
||
|
76801A
|
76801A
76801-53060-J2 Garnish Sub-Assy, Luggage Compartment Door, OutsideLUGGAGE COMPARTMENT DOOR, OUTSIDE [04.2009 - 08.2012] GSE2# SILVERY BLUE ME.,8U9 |
76801-53060-J2 |
US $299.94 |
||
|
76801A
|
76801A
76801-53060-J3 Garnish Sub-Assy, Luggage Compartment Door, Outside[08.2010 - 08.2014] GSE2# LAPIS LAZULI MC.,8V3 |
76801-53060-J3 |
US $248.98 |
||
|
76801A
|
76801A
76801-53060-K0 Garnish Sub-Assy, Luggage Compartment Door, OutsideLUGGAGE COMPARTMENT DOOR, OUTSIDE [04.2009 - 08.2014] GSE2# CATTLEYA M.M.,9AL |
76801-53060-K0 |
US $248.98 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.76 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
