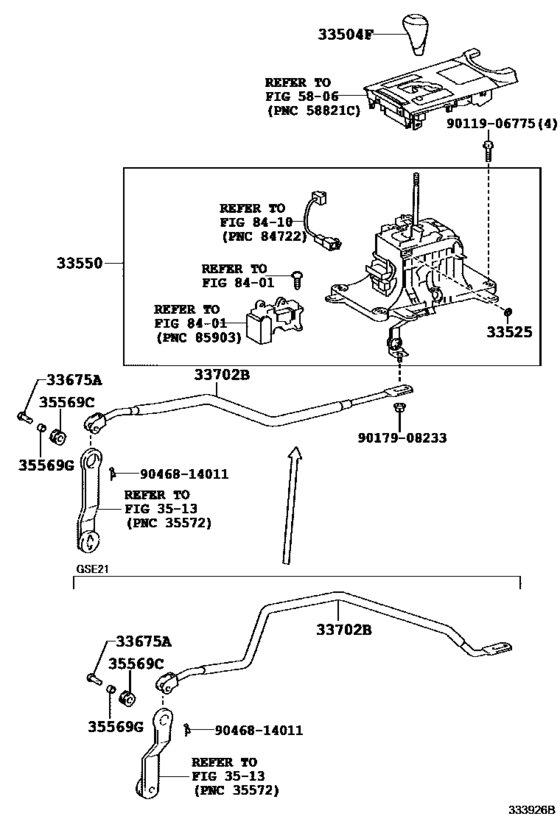

Shift Lever & Retainer ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-30341-C2 Knob Sub-Assy, Shift Lever[04.2009 - 08.2014] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
33504-30341-C2 |
from US $101.68 |
||
|
33504F
|
33504F
33504-30352-25 Knob Sub-Assy, Shift Lever[03.2012 - 08.2014] GSE2# ステアリングホイール−木目,BLACK & DK.BROWN,TRIM06,12,22,38,42 |
33504-30352-25 |
US $240.24 |
||
|
33504F
|
33504F
33504-30352-27 Knob Sub-Assy, Shift Lever[03.2012 - 08.2014] GSE2# ステアリングホイール−木目,BLACK & LT.BROWN,TRIM00,10,20,36,40 |
33504-30352-27 |
US $240.24 |
||
|
33504F
|
33504F
33504-30352-C4 Knob Sub-Assy, Shift Lever[03.2012 - 08.2014] GSE2# ステアリングホイール−木目,BLACK & GRAY,TRIM01,11,21,37,41 |
33504-30352-C4 |
US $240.24 |
||
|
33504F
|
33504F
33504-30361-21 Knob Sub-Assy, Shift Lever[04.2009 - 02.2012] GSE20 ステアリングホイール−木目,BLACK & LT.BROWN,TRIM00,02,04,10,20,30,33,36,40 |
33504-30361-21 |
US $288.29 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30352-27 Knob Sub-Assy, Shift Lever[04.2009 - 02.2012] GSE20 ステアリングホイール−木目,BLACK & LT.BROWN,TRIM00,02,04,10,20,30,33,36,40 |
33504-30352-27 |
US $240.24 |
||
|
33504F
|
33504F
33504-30361-22 Knob Sub-Assy, Shift LeverSHIFT LEVER [04.2009 - 02.2012] GSE20 ステアリングホイール−木目,BLACK & DK.BROWN,TRIM06,07,08,12,22,32,35,38,42 |
33504-30361-22 |
US $288.29 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30352-25 Knob Sub-Assy, Shift Lever[04.2009 - 02.2012] GSE20 ステアリングホイール−木目,BLACK & DK.BROWN,TRIM06,07,08,12,22,32,35,38,42 |
33504-30352-25 |
US $240.24 |
||
|
33504F
|
33504F
33504-30361-C5 Knob Sub-Assy, Shift Lever[04.2009 - 02.2012] GSE20 ステアリングホイール−木目,BLACK & GRAY,TRIM01,03,05,11,21,31,34,37,41 |
33504-30361-C5 |
US $288.29 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30352-C4 Knob Sub-Assy, Shift Lever[04.2009 - 02.2012] GSE20 ステアリングホイール−木目,BLACK & GRAY,TRIM01,03,05,11,21,31,34,37,41 |
33504-30352-C4 |
US $240.24 |
||
|
33504F
|
33504F
33504-53100-C0 Knob Sub-Assy, Shift Lever[08.2012 - 08.2014] GSE2# ステアリングホイール−Ｆスポーツ,BLACK,TRIM2#,3# |
33504-53100-C0 |
US $101.68 |
||
|
33525
|
33525
33525-50020 Support, Shift Lever[04.2009 - 08.2014] GSE2# |
33525-50020 |
US $3.06 |
||
|
33550
|
33550
33550-53190 Floor Shift Assy, Transmission[04.2009 - 08.2014] GSE2# |
33550-53190 |
US $503.78 |
||
|
33675A
|
33675A
33726-35010 Pin, W/hole (For Transmission Control Rod)[04.2009 - 08.2014] GSE2# |
33726-35010 |
US $3.40 |
||
|
33702B
|
33702B
33702-22140 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)[04.2009 - 08.2014] GSE20 |
33702-22140 |
US $14.27 |
||
|
35569C
|
35569C
90480-17013 Grommet[04.2009 - 08.2014] GSE2# |
90480-17013 |
from US $3.21 |
||
|
35569G
|
35569G
90560-08091 Bush (For Floor Shift Control Shaft)[04.2009 - 08.2014] GSE2# |
90560-08091 |
US $1.25 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.27 |
||
|
9046814011
|
9046814011
90468-14011 Clip, No.2(For Parking Brake) |
90468-14011 |
US $1.08 |
||
