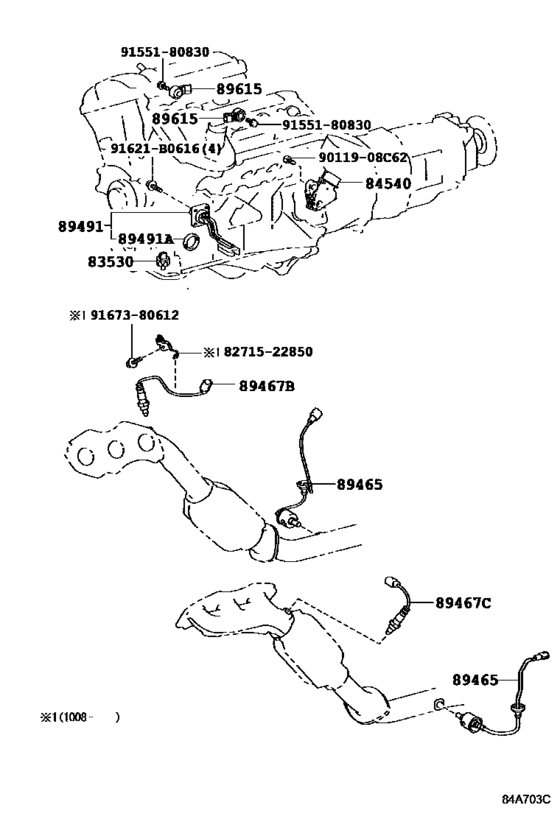

Switch & Relay & Computer ([04.2009 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[04.2009 - 08.2014] GSE2# ＤＥＮＳＯ |
83530-28020 |
from US $23.56 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2009 - 08.2014] GSE2# ＤＥＮＳＯ |
83530-60020 |
from US $23.22 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2009 - 08.2014] GSE2# ＹＡＺＡＫＩ |
83530-60020 |
from US $23.22 |
||
|
84540
|
84540
84540-04010 Switch Assy, Neutral StartNEUTRAL START [09.2013 - 08.2014] GSE2# （Ｌ） |
84540-04010 |
US $124.64 |
||
|
84540
|
84540
84540-71010 Switch Assy, Neutral Start[04.2009 - 09.2013] GSE2# |
84540-71010 |
from US $108.03 |
||
|
89465
|
89465
89465-30730 Sensor, Oxygen[04.2009 - 08.2014] GSE2# |
89465-30730 |
from US $154.16 |
||
|
89467B
|
89467B
89467-22050 Sensor, Air Fuel RatioAIR FUEL RATIO [08.2010 - 08.2014] GSE2# |
89467-22050 |
from US $196.44 |
||
|
89467B
|
89467B
89467-30040 Sensor, Air Fuel Ratio[04.2009 - 08.2010] GSE20 |
89467-30040 |
from US $195.87 |
||
|
89467C
|
89467C
89467-22030 Sensor, Air Fuel RatioAIR FUEL RATIO [08.2010 - 08.2014] GSE2# |
89467-22030 |
from US $162.36 |
||
|
89467C
|
89467C
89467-30030 Sensor, Air Fuel Ratio[04.2009 - 08.2010] GSE20 |
89467-30030 |
from US $182.99 |
||
|
89491
|
89491
89491-30060
Sensor, Engine Oil Level
[04.2009 - 08.2011] GSE2# |
89491-30060 |
— | ||
| replacement | |||||
|
89491
|
89491
89491-30061 Sensor, Engine Oil Level[04.2009 - 08.2011] GSE2# |
89491-30061 |
from US $140.71 |
||
|
89491
|
89491
89491-30061 Sensor, Engine Oil Level[09.2011 - 08.2014] GSE2# |
89491-30061 |
from US $140.71 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[04.2009 - 08.2014] GSE2# |
89493-60010 |
from US $2.51 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[04.2009 - 08.2014] GSE2# |
89615-20090 |
from US $39.82 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.76 |
||
|
9011908C62
|
9011908C62
90119-08C62 New Genuine Part |
90119-08C62 |
US $1.43 |
||
|
8271522850
|
8271522850
82715-22850 Bracket,wiring Harness Clamp |
82715-22850 |
US $2.62 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.89 |
||
|
9167380612
|
9167380612
91673-80612 BOLT FLANGE |
91673-80612 |
US $1.08 |
||
