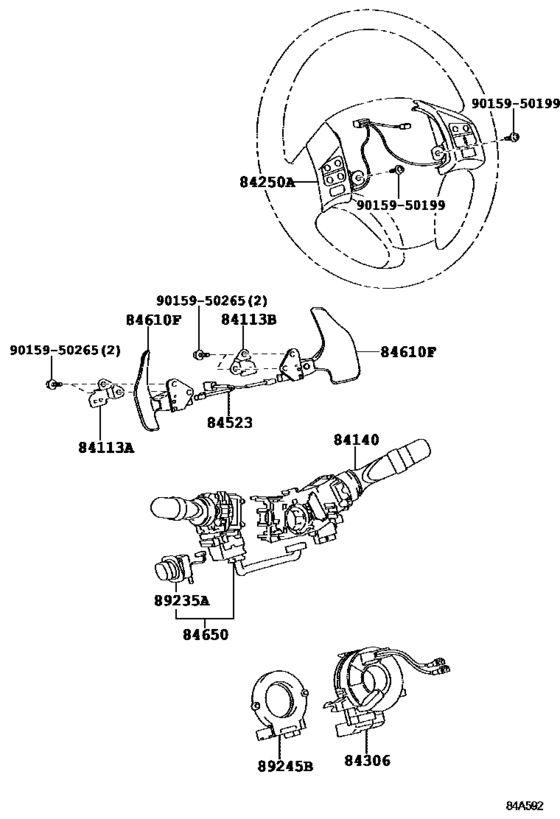

Switch & Relay & Computer ([04.2009 - ] ｽﾃｱﾘﾝｸﾞ (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84113A
|
84113A
84113-52010 Bracket, Switch, No.1[04.2009 - 08.2014] GSE2# |
84113-52010 |
US $3.20 |
||
|
84113B
|
84113B
84113-52020 Bracket, Switch, No.2[04.2009 - 08.2014] GSE2# |
84113-52020 |
US $3.20 |
||
|
84140
|
84140
84140-30290 Switch Assy, Headlamp Dimmer[04.2009 - 08.2014] GSE2# 寒冷地仕様 |
84140-30290 |
US $133.43 |
||
|
84140
|
84140
84140-30300 Switch Assy, Headlamp Dimmer[04.2009 - 08.2014] GSE2# |
84140-30300 |
US $182.40 |
||
|
84250A
|
84250A
84250-53080-C0 Switch Assy, Steering Pad[04.2009 - 08.2010] GSE20 BLACK,TRIM0#,2#,3# |
84250-53080-C0 |
US $147.06 |
||
|
84250A
|
84250A
84250-53090-C0
Switch Assy, Steering Pad
[04.2009 - 08.2010] GSE20 プリクラッシュシステム−有り（＊ＰＳＢ＆＊ＰＢＡ＆＊ＰＢ）,BLACK,TRIM0#,2#,3# |
84250-53090-C0 |
— | ||
|
84250A
|
84250A
84250-53140 Switch Assy, Steering Pad[08.2010 - 12.2010] GSE2# |
84250-53140 |
US $173.26 |
||
|
84250A
|
84250A
84250-53141 Switch Assy, Steering Pad[12.2010 - 08.2014] GSE2# |
84250-53141 |
US $144.14 |
||
|
84250A
|
84250A
84250-53170 Switch Assy, Steering Pad[08.2010 - 12.2010] GSE2# プリクラッシュシステム−有り（＊ＰＳＢ＆＊ＰＢＡ＆＊ＰＢ） |
84250-53170 |
US $182 |
||
|
84250A
|
84250A
84250-53171 Switch Assy, Steering Pad[12.2010 - 08.2014] GSE2# プリクラッシュシステム−有り（＊ＰＳＢ＆＊ＰＢＡ＆＊ＰＢ） |
84250-53171 |
US $151.42 |
||
|
84306
|
84306
84306-48030 Cable Sub-Assy, Spiral[04.2009 - 08.2014] GSE2# |
84306-48030 |
US $147.04 |
||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[04.2009 - 08.2014] GSE2# |
84306-48031 |
from US $141.19 |
||
|
84523
|
84523
84523-52020 Wire, Switch No.1[04.2009 - 08.2014] GSE2# |
84523-52020 |
US $18.93 |
||
|
84610F
|
84610F
84610-53020 Switch Assy, Transmission Shift[04.2009 - 08.2010] GSE20 シフト ダウン |
84610-53020 |
US $120.85 |
||
|
84610F
|
84610F
84610-53030 Switch Assy, Transmission Shift[04.2009 - 08.2010] GSE20 シフト アップ |
84610-53030 |
US $120.85 |
||
|
84610F
|
84610F
84610-53060 Switch Assy, Transmission Shift[08.2010 - 12.2010] GSE2# シフト ダウン |
84610-53060 |
US $120.85 |
||
|
84610F
|
84610F
84610-53061 Switch Assy, Transmission Shift[12.2010 - 08.2014] GSE2# シフト ダウン |
84610-53061 |
US $100.46 |
||
|
84610F
|
84610F
84610-53070 Switch Assy, Transmission Shift[08.2010 - 12.2010] GSE2# シフト アップ |
84610-53070 |
US $120.85 |
||
|
84610F
|
84610F
84610-53071 Switch Assy, Transmission Shift[12.2010 - 08.2014] GSE2# シフト アップ |
84610-53071 |
US $100.46 |
||
|
84650
|
84650
84652-30531
Switch Assy, Windshield Wiper
[04.2009 - 08.2014] GSE2# |
84652-30531 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-30532 Switch Assy, Windshield Wiper[04.2009 - 08.2014] GSE2# |
84652-30532 |
US $150.26 |
||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[04.2009 - 08.2014] GSE2# |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-52030 Sensor, Steering[04.2009 - 08.2014] GSE2# |
89245-52030 |
from US $211.41 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
|
9015950265
|
9015950265
90159-50265 New Genuine Part |
90159-50265 |
US $1.25 |
||
