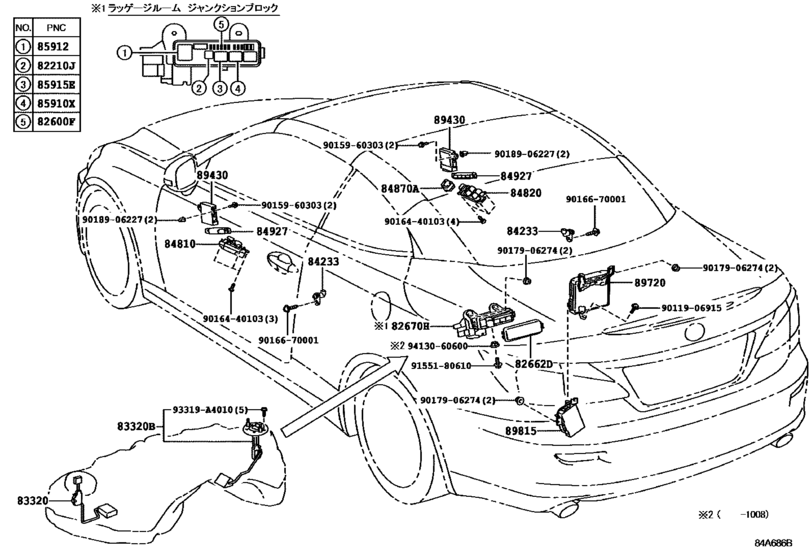

Switch & Relay & Computer ([04.2009 - ] ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08298 Fusible Link[04.2009 - 08.2014] GSE2# ３０Ａ，メス端子,ラッゲージルーム Ｊ／Ｂ |
90982-08298 |
from US $6.99 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[04.2009 - 08.2014] GSE2# ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[04.2009 - 08.2014] GSE2# １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.78 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[04.2009 - 08.2014] GSE2# １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[04.2009 - 08.2014] GSE2# ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[04.2009 - 08.2014] GSE2# ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[04.2009 - 08.2014] GSE2# ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.76 |
||
|
82662D
|
82662D
82662-53190 Cover, Relay Block, Upper, No.4RELAY BLOCK, UPPER, NO.4 [04.2009 - 06.2012] GSE2# |
82662-53190 |
US $17.04 |
||
|
82662D
|
82662D
82662-53191 Cover, Relay Block, Upper, No.4[06.2012 - 08.2014] GSE2# |
82662-53191 |
US $14.12 |
||
|
82670H
|
82670H
82670-53010 Block Assy, Luggage Room JunctionLUGGAGE ROOM JUNCTION [04.2009 - 08.2014] GSE2# |
82670-53010 |
US $170.35 |
||
|
83320
|
83320
83320-53010 Gage Assy, Fuel Sender[04.2009 - 08.2014] GSE2# |
83320-53010 |
from US $59.38 |
||
|
83320B
|
83320B
83320-59515 Gage Assy, Fuel Sender, No.2[04.2009 - 08.2014] GSE2# |
83320-59515 |
from US $40.48 |
||
|
84233
|
84233
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[06.2013 - 08.2014] GSE2# |
84231-50190 |
from US $11.83 |
||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[04.2009 - 05.2013] GSE2# |
84231-53010 |
from US $11.83 |
||
|
84810
|
84810
84030-53050 Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [04.2009 - 08.2009] GSE20 |
84030-53050 |
US $157.25 |
||
| replacement | |||||
|
84810
|
84810
84030-53051 Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [04.2009 - 08.2009] GSE20 |
84030-53051 |
US $157.25 |
||
|
84810
|
84810
84030-53051 Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [09.2009 - 08.2010] GSE20 |
84030-53051 |
US $157.25 |
||
|
84810
|
84810
84030-53052 Switch Assy, Power Window Regulator[08.2010 - 08.2014] GSE2# |
84030-53052 |
US $131.04 |
||
|
84820
|
84820
84040-53120 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [04.2009 - 08.2009] GSE20 |
84040-53120 |
US $295.57 |
||
| replacement | |||||
|
84820
|
84820
84040-53121 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [04.2009 - 08.2009] GSE20 |
84040-53121 |
US $295.57 |
||
|
84820
|
84820
84040-53121 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [09.2009 - 08.2010] GSE20 |
84040-53121 |
US $295.57 |
||
|
84820
|
84820
84040-53122 Master Switch Assy, Power Window Regulator[08.2010 - 08.2014] GSE2# |
84040-53122 |
US $246.06 |
||
|
84870A
|
84870A
84872-53020 Switch Assy, Outer Mirror[04.2009 - 08.2010] GSE20 ＶＥＲＳＩＯＮ Ｌ＆フロントシート−フルレザーブルー＆ホワイトツートンカラー |
84872-53020 |
US $64.65 |
||
|
84870A
|
84870A
84872-58010 Switch Assy, Outer Mirror[04.2009 - 08.2014] GSE20 |
84872-58010 |
US $80.64 |
||
|
84927
|
84927
84927-53030-A1 Switch, Seat MemorySEAT MEMORY [04.2009 - 08.2010] GSE20 ＶＥＲＳＩＯＮ Ｌ＆フロントシート−フルレザーブルー＆ホワイトツートンカラー,MELLO W WHITE,TRIM0#,30,31,32,右側 |
84927-53030-A1 |
US $60.72 |
||
|
84927
|
84927
84927-53030-C0 Switch, Seat Memory[04.2009 - 08.2010] GSE20 ＶＥＲＳＩＯＮ Ｌ＆フロントシート−フルレザーブルー＆ホワイトツートンカラー,BLACK ,TRIM1#,2#,33,34,35,36,37,38,39,4#,右側 |
84927-53030-C0 |
US $60.72 |
||
|
84927
|
84927
84927-53040-A1 Switch, Seat MemorySEAT MEMORY [04.2009 - 08.2010] GSE20 ＶＥＲＳＩＯＮ Ｌ＆フロントシート−フルレザーブルー＆ホワイトツートンカラー,MELLO W WHITE,TRIM0#,30,31,32,左側 |
84927-53040-A1 |
US $60.72 |
||
|
84927
|
84927
84927-53040-C0 Switch, Seat Memory[04.2009 - 08.2010] GSE20 ＶＥＲＳＩＯＮ Ｌ＆フロントシート−フルレザーブルー＆ホワイトツートンカラー,BLACK ,TRIM1#,2#,33,34,35,36,37,38,39,4#,左側 |
84927-53040-C0 |
US $60.72 |
||
|
85910X
|
85910X
90987-02027 Relay[04.2009 - 08.2014] GSE2# |
90987-02027 |
from US $47.82 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[04.2009 - 08.2014] GSE2# |
90987-04010 |
from US $46.95 |
||
|
85915E
|
85915E
90987-02027 Relay[04.2009 - 08.2014] GSE2# |
90987-02027 |
from US $47.82 |
||
|
89430
|
89430
89430-53080 Computer Assy, Outer Mirror ControlOUTER MIRROR CONTROL [04.2009 - 08.2010] GSE20 ＶＥＲＳＩＯＮ Ｌ＆フロントシート−フルレザーブルー＆ホワイトツートンカラー |
89430-53080 |
US $171.81 |
||
|
89720
|
89720
89720-53010 Computer Assy, Sliding Roof ControlSLIDING ROOF CONTROL [04.2009 - 07.2010] GSE20 |
89720-53010 |
US $1,485.12 |
||
| replacement | |||||
|
89720
|
89720
89720-53011 Computer Assy, Sliding Roof Control[04.2009 - 07.2010] GSE20 |
89720-53011 |
US $1,237.60 |
||
|
89720
|
89720
89720-53011 Computer Assy, Sliding Roof Control[08.2010 - 08.2014] GSE2# |
89720-53011 |
US $1,237.60 |
||
|
89815
|
89815
89810-53030 Computer, Seat Belt ControlSEAT BELT CONTROL [04.2009 - 07.2010] GSE20 プリクラッシュシステム−有り（＊ＰＳＢ＆＊ＰＢＡ＆＊ＰＢ） |
89810-53030 |
US $776.05 |
||
| replacement | |||||
|
89815
|
89815
89810-53070 Computer, Seat Belt Control[04.2009 - 07.2010] GSE20 プリクラッシュシステム−有り（＊ＰＳＢ＆＊ＰＢＡ＆＊ＰＢ） |
89810-53070 |
US $646.46 |
||
|
89815
|
89815
89810-53070 Computer, Seat Belt Control[08.2010 - 08.2014] GSE2# プリクラッシュシステム−有り（＊ＰＳＢ＆＊ＰＢＡ＆＊ＰＢ） |
89810-53070 |
US $646.46 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.67 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $1.08 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.65 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $1.08 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.76 |
||
