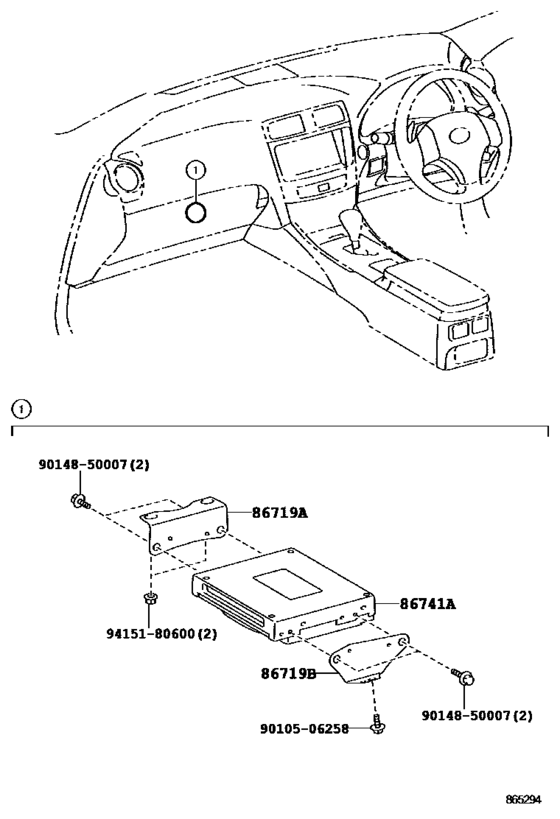

Telephone & Mayday ([08.2012 - ] (1208- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86719A
|
86719A
86719-30250 Bracket, Telephone[08.2012 - 08.2014] GSE2# |
86719-30250 |
US $8.44 |
||
|
86719A
|
86719A
86719-53060 Bracket, Telephone No.1TELEPHONE NO.1 [04.2009 - 08.2012] GSE2# |
86719-53060 |
US $9.32 |
||
|
86719B
|
86719B
86719-53010 Bracket, Telephone No.1[08.2012 - 08.2014] GSE2# |
86719-53010 |
US $6.12 |
||
|
86719B
|
86719B
86719-53070 Bracket, Telephone No.2TELEPHONE NO.2 [04.2009 - 08.2012] GSE2# |
86719-53070 |
US $10.48 |
||
|
86741A
|
86741A
86741-30040 Transceiver, Telematics[04.2009 - 02.2012] GSE2# |
86741-30040 |
US $1,921.92 |
||
| replacement | |||||
|
86741A
|
86741A
86741-30042 Transceiver, Telematics[04.2009 - 02.2012] GSE2# |
86741-30042 |
US $1,601.60 |
||
|
86741A
|
86741A
86741-30041 Transceiver, Telematics[02.2012 - 08.2012] GSE2# |
86741-30041 |
US $1,921.92 |
||
| replacement | |||||
|
86741A
|
86741A
86741-30042 Transceiver, Telematics[02.2012 - 08.2012] GSE2# |
86741-30042 |
US $1,601.60 |
||
|
86741A
|
86741A
86741-30110 Transceiver, Telematics[08.2012 - 10.2012] GSE2# |
86741-30110 |
US $1,921.92 |
||
| replacement | |||||
|
86741A
|
86741A
86741-30112 Transceiver, Telematics[08.2012 - 10.2012] GSE2# |
86741-30112 |
US $1,616.16 |
||
|
86741A
|
86741A
86741-30111 Transceiver, Telematics[11.2012 - 08.2014] GSE2# |
86741-30111 |
US $1,601.60 |
||
| replacement | |||||
|
86741A
|
86741A
86741-30112 Transceiver, Telematics[11.2012 - 08.2014] GSE2# |
86741-30112 |
US $1,616.16 |
||
|
9010506258
|
9010506258
90105-06258 BOLT, WASHER BASED |
90105-06258 |
US $1.97 |
||
|
9014850007
|
9014850007
90148-50007 New Genuine Part |
90148-50007 |
US $1.46 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
