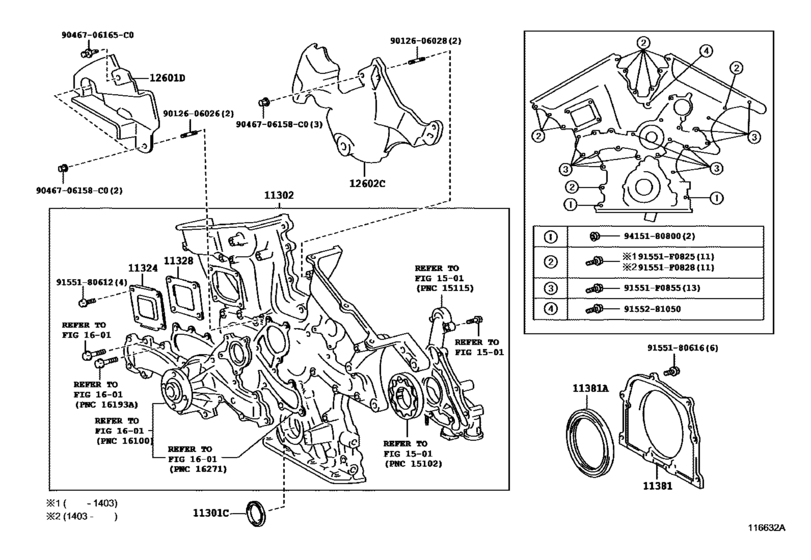

Timing Gear Cover & Rear End Plate ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301C
|
11301C
90311-42037
Seal, Oil(For Timing Gear Case Or Timing Chain Case)
[04.2009 - 05.2009] 4GRFSE..GSE20 |
90311-42037 |
— | ||
| replacement | |||||
|
11301C
|
11301C
90311-42045 Seal, Oil(For Timing Gear Case Or Timing Chain Case)OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) [04.2009 - 05.2009] 4GRFSE..GSE20 |
90311-42045 |
from US $9.32 |
||
|
11301C
|
11301C
90311-42045 Seal, Oil(For Timing Gear Case Or Timing Chain Case)OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) [05.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
90311-42045 |
from US $9.32 |
||
|
11302
|
11302
11310-31042
Cover Sub-Assy, Timing Chain Or Belt
[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
11310-31042 |
— | ||
| replacements | |||||
|
11302
|
11302
11310-31044 Cover Sub-Assy, Timing Chain Or Belt[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
11310-31044 |
from US $447.20 |
||
|
11302
|
11302
91552-81060 Bolt, No.3(For Alternator)[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
91552-81060 |
from US $1.27 |
||
|
11324
|
11324
11324-31020 Plate, Timing Chain Cover[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
11324-31020 |
from US $6.04 |
||
|
11328
|
11328
11328-31030 Gasket, Timing Gear Or Chain Cover[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
11328-31030 |
from US $7.17 |
||
|
11381
|
11381
11381-31021 Retainer, Engine Rear Oil Seal[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
11381-31021 |
US $48.05 |
||
|
11381A
|
11381A
90311-92009
Seal, Engine Rear Oil
[04.2009 - 09.2010] 2GRFSE,4GRFSE..GSE2# |
90311-92009 |
— | ||
| replacement | |||||
|
11381A
|
11381A
90311-92010 Seal, Engine Rear Oil[04.2009 - 09.2010] 2GRFSE,4GRFSE..GSE2# |
90311-92010 |
from US $25.37 |
||
|
11381A
|
11381A
90311-92010 Seal, Engine Rear Oil[09.2010 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
90311-92010 |
from US $25.37 |
||
|
12601D
|
12601D
12601-31010 Cover, Engine, No.1[04.2009 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
12601-31010 |
US $20.82 |
||
|
12602C
|
12602C
12602-31012 Cover, Engine, No.2[04.2009 - 01.2012] 2GRFSE,4GRFSE..GSE2# |
12602-31012 |
US $58.39 |
||
| replacement | |||||
|
12602C
|
12602C
12602-31013 Cover, Engine, No.2[04.2009 - 01.2012] 2GRFSE,4GRFSE..GSE2# |
12602-31013 |
US $43.29 |
||
|
12602C
|
12602C
12602-31013 Cover, Engine, No.2[01.2012 - 08.2014] 2GRFSE,4GRFSE..GSE2# |
12602-31013 |
US $43.29 |
||
|
91551F0825
|
91551F0825
91551-F0825 BOLT FLANGE |
91551-F0825 |
US $1.43 |
||
|
91551F0828
|
91551F0828
91551-F0828 BOLT FLANGE |
91551-F0828 |
US $1.43 |
||
|
91551F0855
|
91551F0855
91551-F0855 Bolt(For Cylinder Head Set Sub) |
91551-F0855 |
from US $0.91 |
||
|
9012606026
|
9012606026
90126-06026 Bolt, Stud(Manifold To Throttle Body) |
90126-06026 |
from US $0.63 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9046706158C0
|
9046706158C0
90467-06158-C0 Clip, Cowl Top Ventilator Louver |
90467-06158-C0 |
from US $1.22 |
||
|
9046706165C0
|
9046706165C0
90467-06165-C0 Clip, Instrument PanelINSTRUMENT PANEL |
90467-06165-C0 |
from US $0.76 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.63 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9155281050
|
9155281050
91552-81050 Bolt, No.2(For Alternator) |
91552-81050 |
from US $1.08 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
