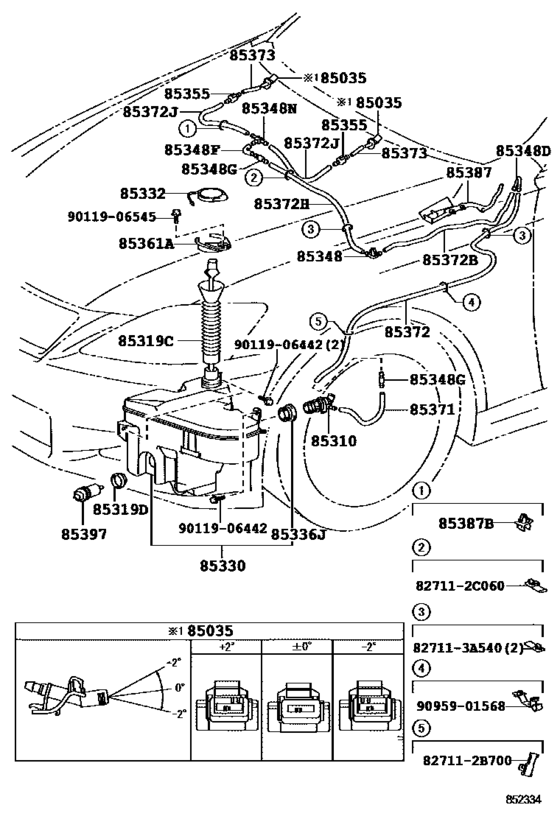

Windshield Washer ([04.2009 - 11.2010] (0904-1011)) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12300 Nozzle Sub-Assy, Washer[04.2009 - 08.2014] GSE2# 角度 ０ |
85381-12300 |
from US $8.39 |
||
|
85035
|
85035
85381-12310 Nozzle Sub-Assy, Washer[04.2009 - 08.2014] GSE2# 角度 −２ |
85381-12310 |
US $12.77 |
||
|
85035
|
85035
85381-12320 Nozzle Sub-Assy, Washer[04.2009 - 08.2014] GSE2# 角度 ＋２ |
85381-12320 |
from US $8.39 |
||
|
85310
|
85310
85330-21010 Motor And Pump Assy, Windshield Washer[04.2009 - 08.2014] GSE2# |
85330-21010 |
from US $49.97 |
||
|
85319C
|
85319C
85319-30360 Hose, Inlet[04.2009 - 08.2014] GSE2# |
85319-30360 |
from US $3.84 |
||
|
85319D
|
85319D
85319-33230 Packing, Front Washer[04.2009 - 08.2014] GSE2# |
85319-33230 |
from US $2.53 |
||
|
85330
|
85330
85315-30380 Jar Assy, Windshield Washer[04.2009 - 08.2014] GSE2# |
85315-30380 |
US $50.45 |
||
|
85332
|
85332
85316-48060 Cap, Windshield Washer Jar[04.2009 - 08.2014] GSE2# |
85316-48060 |
from US $1.47 |
||
|
85336J
|
85336J
85336-60300 Bush, Windshield Washer Jar[04.2009 - 08.2014] GSE2# |
85336-60300 |
from US $1.92 |
||
|
85348
|
85348
85375-33070 Joint, Windshield Washer Hose, No.1[04.2009 - 08.2014] GSE2# |
85375-33070 |
US $0.84 |
||
|
85348D
|
85348D
85355-12360 Joint, Windshield Washer Elbow, No.1[04.2009 - 08.2014] GSE2# |
85355-12360 |
US $0.84 |
||
|
85348F
|
85348F
85355-14481 Joint, Windshield Washer Elbow, No.1[04.2009 - 11.2010] GSE2# |
85355-14481 |
US $0.98 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[11.2010 - 08.2014] GSE2# |
85349-89122 |
from US $1.25 |
||
|
85348N
|
85348N
85375-28110 Joint, Windshield Washer Hose, No.1[04.2009 - 11.2010] GSE2# |
85375-28110 |
from US $3.76 |
||
|
85355
|
85355
85321-26020 Valve Sub-Assy, Washer[04.2009 - 11.2010] GSE2# |
85321-26020 |
US $1.60 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[11.2010 - 08.2014] GSE2# |
85321-28020 |
from US $9.94 |
||
|
85361A
|
85361A
85337-30380 Bracket, Windshield Washer, No.1[04.2009 - 08.2014] GSE2# |
85337-30380 |
US $1.94 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[04.2009 - 08.2014] GSE2# ＊Ｈ，Ｌ＝１５０ |
90099-33080 |
from US $5.19 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[04.2009 - 08.2014] GSE2# ＊Ｈ，Ｌ＝１３３０ |
90099-33080 |
from US $5.19 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[04.2009 - 08.2014] GSE2# ＊Ｈ，Ｌ＝４５０ |
90099-33080 |
from US $5.19 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[04.2009 - 11.2010] GSE2# ＊Ｈ，Ｌ＝６００ |
90099-33080 |
from US $5.19 |
||
|
85372J
|
85372J
90099-33299 Joint, Windshield Washer Elbow, No.2[04.2009 - 11.2010] GSE2# ＊Ｈ，Ｌ＝５２０ |
90099-33299 |
from US $4.37 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[04.2009 - 11.2010] GSE2# ＊Ｈ，Ｌ＝６０ |
90099-33080 |
from US $5.19 |
||
|
85387
|
85387
85387-53070
Clamp No.1 (For Windseield Washer)
[04.2009 - 08.2014] GSE2# |
85387-53070 |
— | ||
|
85387B
|
85387B
90469-07011 Clamp No.1 (For Windseield Washer)[04.2009 - 08.2014] GSE2# |
90469-07011 |
from US $1.97 |
||
|
85397
|
85397
85397-52100 Switch Assy,level Warning[04.2009 - 08.2014] GSE2# |
85397-52100 |
from US $36.88 |
||
|
827112B700
|
827112B700
82711-2B700 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B700 |
US $1.16 |
||
|
827112C060
|
827112C060
82711-2C060 Clamp No.1 (For Windseield Washer) |
82711-2C060 |
US $1.61 |
||
|
827113A540
|
827113A540
82711-3A540 Clamp, Sliding Roof Drain Hose |
82711-3A540 |
from US $0.95 |
||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.89 |
||
|
9011906545
|
9011906545
90119-06545 BOLT WWASHER |
90119-06545 |
US $2.15 |
||
|
9095901568
|
9095901568
90959-01568 Clamp |
90959-01568 |
US $1.97 |
