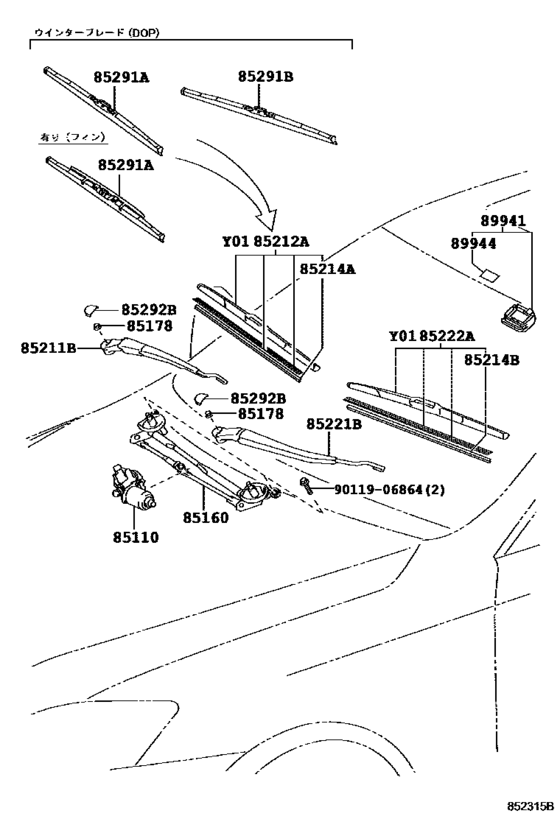

Windshield Wiper ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-60370 Motor Assy, Windshield Wiper[04.2009 - 08.2014] GSE2# |
85110-60370 |
US $326.04 |
||
|
85160
|
85160
85150-53040 Link Assy, Windshield Wiper[04.2009 - 08.2014] GSE2# |
85150-53040 |
US $68.14 |
||
|
85178
|
85178
90179-10223 Nut (For Front Wiper Arm Setting)[04.2009 - 06.2011] GSE2# |
90179-10223 |
from US $0.89 |
||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[07.2011 - 08.2014] GSE2# |
90182-10006 |
US $1.43 |
||
|
85211B
|
85211B
85211-53050 Arm, Front Wiper, Rh[04.2009 - 08.2014] GSE2# |
85211-53050 |
US $67.54 |
||
|
85212A
|
85212A
85212-53070-79 Blade, Fr Wiper, Rh[04.2009 - 08.2014] GSE2# |
85212-53070-79 |
US $53.59 |
||
|
85214A
|
85214A
85214-53080 Rubber, Wiper, Rh[04.2009 - 08.2014] GSE2# |
85214-53080 |
from US $11.53 |
||
|
85214B
|
85214B
85214-53090 Rubber, Wiper, Rh[04.2009 - 08.2014] GSE2# |
85214-53090 |
from US $10.58 |
||
|
85221B
|
85221B
85221-53060 Arm, Front Wiper, Lh[04.2009 - 08.2014] GSE2# |
85221-53060 |
US $78.29 |
||
|
85222A
|
85222A
85222-53060-79 Blade, Fr Wiper, Lh[04.2009 - 08.2014] GSE2# |
85222-53060-79 |
US $48.89 |
||
|
85291A
|
85291A
85291-35060-79 Blade, Front Wiper, Winter, Rh[04.2009 - 08.2014] GSE2# ウィンタブレード（ＤＯＰ） |
85291-35060-79 |
US $84 |
||
|
85291A
|
85291A
85291-53050-79 Blade, Front Wiper, Winter, Rh[04.2009 - 08.2014] GSE2# ウィンタブレード（ＤＯＰ）,有り（フィン） |
85291-53050-79 |
US $94.64 |
||
|
85291B
|
85291B
85291-33060-79 Blade, Front Wiper, Winter, Lh[04.2009 - 08.2014] GSE2# ウィンタブレード（ＤＯＰ） |
85291-33060-79 |
US $80.64 |
||
|
85292B
|
85292B
85292-13010 Cover, Windshield Wiper Arm[04.2009 - 08.2014] GSE2# |
85292-13010 |
from US $4.22 |
||
|
89941
|
89941
89941-53012 Sensor, Rain[04.2009 - 07.2009] GSE20 |
89941-53012 |
US $410.59 |
||
| replacement | |||||
|
89941
|
89941
89941-53020 Sensor, RainRAIN [04.2009 - 07.2009] GSE20 |
89941-53020 |
US $342.16 |
||
|
89941
|
89941
89941-53020 Sensor, RainRAIN [08.2009 - 08.2014] GSE2# |
89941-53020 |
US $342.16 |
||
|
89944
|
89944
89944-30020 Tape, Rain Sensor[04.2009 - 08.2014] GSE2# |
89944-30020 |
from US $17.39 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.43 |
||
