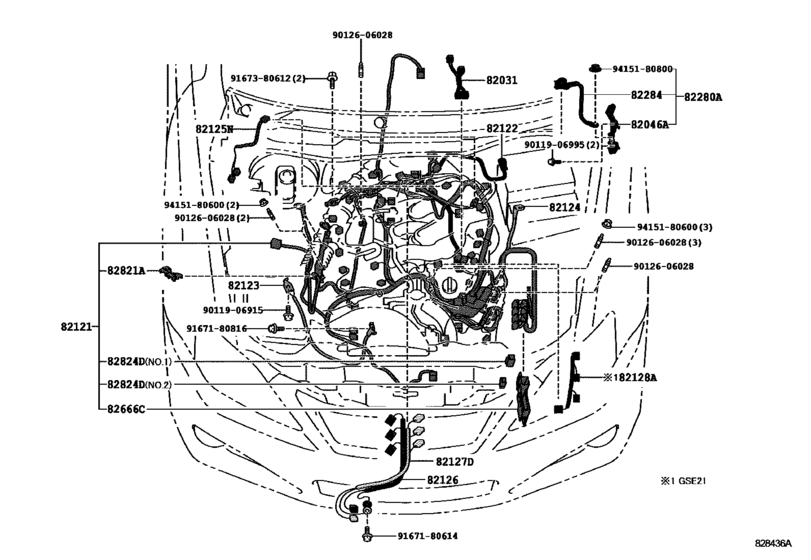

Wiring & Clamp ([08.2012 - ] ｴﾝｼﾞﾝ (1208- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82031
|
82031
82031-22150 Wire Sub-Assy, Ignition Coil[04.2009 - 08.2014] GSE20 |
82031-22150 |
US $31.92 |
||
|
82046A
|
82046A
82046-53070 Wire Sub-Assy, Body Ground, No.1[08.2012 - 08.2014] GSE2# |
82046-53070 |
US $26.50 |
||
|
82121
|
82121
82121-53272 Wire, Engine[04.2009 - 08.2010] GSE20 |
82121-53272 |
US $920.19 |
||
|
82121
|
82121
82121-53273 Wire, Engine[08.2010 - 08.2014] GSE20 |
82121-53273 |
US $825.55 |
||
|
82121
|
82121
82121-53302 Wire, Engine[04.2009 - 08.2010] GSE20 寒冷地仕様 |
82121-53302 |
US $991.54 |
||
|
82121
|
82121
82121-53303 Wire, Engine[08.2010 - 08.2014] GSE20 寒冷地仕様 |
82121-53303 |
US $825.55 |
||
|
82122
|
82122
82122-22570 Wire, Engine, No.2[04.2009 - 08.2014] GSE2# |
82122-22570 |
US $87.36 |
||
|
82123
|
82123
82123-30490 Wire, Engine, No.3[04.2009 - 08.2014] GSE2# |
82123-30490 |
US $32.47 |
||
|
82124
|
82124
82124-30290 Wire, Engine, No.4[04.2009 - 08.2014] GSE2# |
82124-30290 |
US $68.72 |
||
|
82125N
|
82125N
82125-30500 Wire, Transmission[04.2009 - 08.2014] GSE20 |
82125-30500 |
US $33.55 |
||
|
82126
|
82126
82126-30010 Wire, Engine[04.2009 - 08.2014] GSE20 |
82126-30010 |
US $47.61 |
||
|
82127D
|
82127D
82127-30010 Wire, Differential[04.2009 - 08.2014] GSE20 |
82127-30010 |
US $77.93 |
||
|
82280A
|
82280A
82280-53030 Wire Assy, Battery To Cowl Top Side[08.2012 - 08.2014] GSE2# |
82280-53030 |
US $68.72 |
||
|
82284
|
82284
82284-30010 Wire, Earth[04.2009 - 08.2012] GSE2# |
82284-30010 |
US $59.64 |
||
|
82284
|
82284
82284-53080 Wire, Earth[08.2012 - 08.2014] GSE2# |
82284-53080 |
US $39.75 |
||
|
82666C
|
82666C
82666-30740 Holder, Connector No.4[04.2009 - 08.2014] GSE2# |
82666-30740 |
US $17.47 |
||
|
82821A
|
82821A
82821-50500 Cover, Connector[04.2009 - 08.2014] GSE2# |
82821-50500 |
US $2.51 |
||
|
82824D
|
82824D
82824-30180 Connector, Wiring Harness[04.2009 - 08.2014] GSE2# ＮＯ．１ |
82824-30180 |
US $5.53 |
||
|
82824D
|
82824D
82824-52080 Connector, Wiring Harness[04.2009 - 08.2014] GSE20 ＮＯ．２ |
82824-52080 |
US $18.20 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
||
|
9167380612
|
9167380612
91673-80612 BOLT FLANGE |
91673-80612 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
