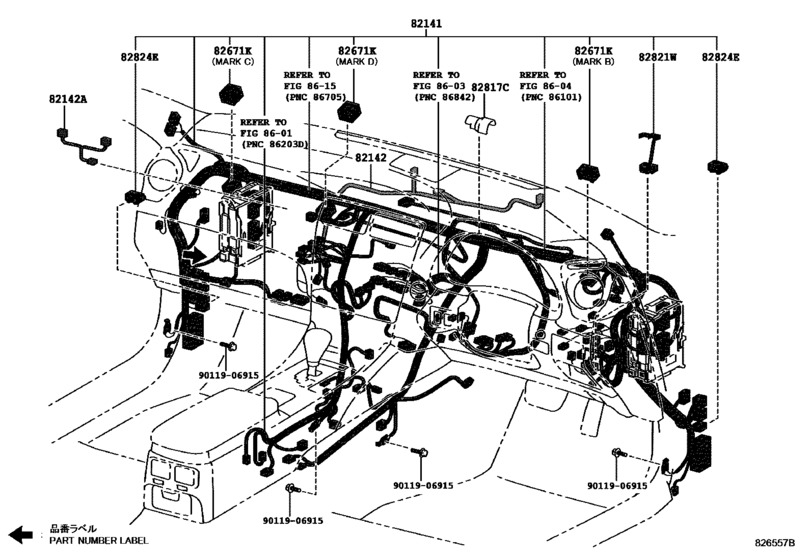

Wiring & Clamp ([04.2009 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-53Q80 Wire, Instrument PanelINSTRUMENT PANEL [04.2009 - 08.2010] GSE20; GSE20 品番ラベル＝８２１４１−５３Ｑ８０ |
82141-53Q80 |
US $1,543.36 |
||
|
82141
|
82141
82141-53Q81 Wire, Instrument Panel[08.2010 - 08.2011] GSE2#; GSE2# 品番ラベル＝８２１４１−５３Ｑ８１ |
82141-53Q81 |
US $1,543.36 |
||
|
82141
|
82141
82141-53Q82 Wire, Instrument Panel[08.2011 - 08.2012] GSE2#; GSE2# 品番ラベル＝８２１４１−５３Ｑ８２ |
82141-53Q82 |
US $1,543.36 |
||
|
82141
|
82141
82141-53Q83 Wire, Instrument Panel[08.2012 - 08.2013] GSE2#; GSE2# 品番ラベル＝８２１４１−５３Ｑ８３ |
82141-53Q83 |
US $1,284.19 |
||
|
82141
|
82141
82141-53Q84 Wire, Instrument Panel[08.2013 - 08.2014] GSE2#; GSE2# 品番ラベル＝８２１４１−５３Ｑ８４ |
82141-53Q84 |
US $1,169.17 |
||
|
82142
|
82142
82142-53080 Wire, Instrument Panel, No.2[04.2009 - 07.2009] GSE20 |
82142-53080 |
US $31.89 |
||
|
82142
|
82142
82142-53081 Wire, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [08.2009 - 08.2014] GSE2# |
82142-53081 |
US $26.50 |
||
|
82142A
|
82142A
82140-53010 Wire, Instrument Panel, No.2[04.2009 - 08.2014] GSE2# |
82140-53010 |
US $10.63 |
||
|
82671K
|
82671K
82671-53010 Block, Junction, No.3[04.2009 - 08.2014] GSE2# マーク Ｂ |
82671-53010 |
US $13.40 |
||
|
82671K
|
82671K
82671-53020 Block, Junction, No.3[04.2009 - 08.2014] GSE2# マーク Ｃ |
82671-53020 |
US $13.40 |
||
|
82671K
|
82671K
82671-53030 Block, Junction, No.3[04.2009 - 08.2014] GSE2# マーク Ｄ |
82671-53030 |
US $13.40 |
||
|
82817C
|
82817C
82817-33820 Protector, Wiring Harness, No.4[04.2009 - 08.2014] GSE2# |
82817-33820 |
US $5.24 |
||
|
82821W
|
82821W
82821-20330 Cover, Connector[04.2009 - 08.2014] GSE2# |
82821-20330 |
US $4.12 |
||
|
82824E
|
82824E
82824-50340 Connector, Wiring Harness[04.2009 - 08.2014] GSE2# |
82824-50340 |
US $15.14 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
