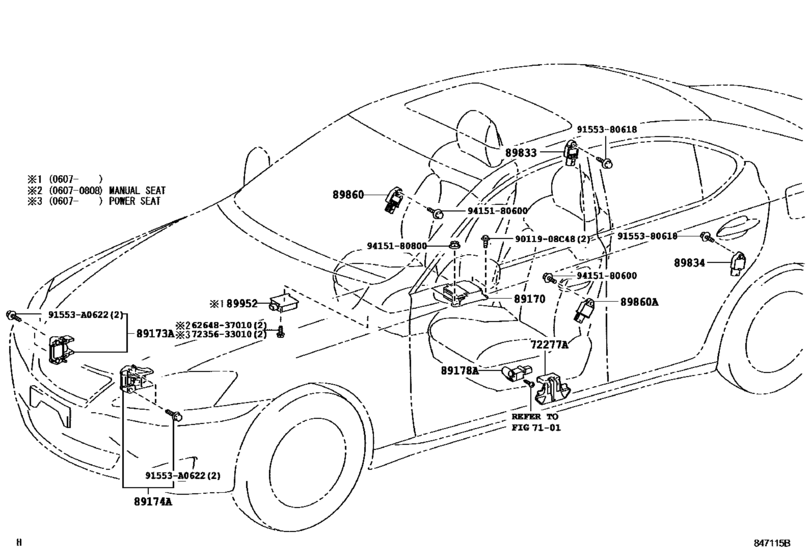

Air Bag ([08.2005 - ] (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2012
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72277A
|
72277A
72277-33010 Protector, Seat Slide Position Sensor,[08.2005 - 08.2008] GSE20,21; GSE20,21 X PACKAGE&FRONT SEAT-SPORT FABRIC ,POWER SEAT; GSE20,21 X PACKAGE&FRONT SEAT-SPORT FABRIC ,POWER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
72277-33010 |
US $5.53 |
||
|
72277A
|
72277A
72277-33021 Protector, Seat Slide Position Sensor[08.2005 - 08.2008] GSE25; GSE20,21 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL; GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER; GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL; GSE20,21 FR |
72277-33021 |
US $5.53 |
||
|
89170
|
89170
89170-53080
Sensor Assy, Air Bag
[08.2005 - 07.2006] GSE2# |
89170-53080 |
— | ||
|
89170
|
89170
89170-53130
Sensor Assy, Air Bag
[07.2006 - 08.2008] GSE2# |
89170-53130 |
— | ||
| replacement | |||||
|
89170
|
89170
89170-53250 Sensor Assy, Air Bag[07.2006 - 08.2008] GSE2# |
89170-53250 |
from US $438.06 |
||
|
89170
|
89170
89170-53250 Sensor Assy, Air Bag[08.2009 - 08.2010] GSE2# |
89170-53250 |
from US $438.06 |
||
|
89173A
|
89173A
89173-09290
Sensor, Air Bag, Front Rh
[08.2005 - 08.2007] GSE2# |
89173-09290 |
— | ||
|
89173A
|
89173A
89173-29255
Sensor, Air Bag, Front Rh
[08.2007 - 08.2008] GSE2# |
89173-29255 |
— | ||
|
89174A
|
89174A
89173-09290
Sensor, Air Bag, Front Rh
[08.2005 - 08.2007] GSE2# |
89173-09290 |
— | ||
|
89174A
|
89174A
89173-29255
Sensor, Air Bag, Front Rh
[08.2007 - 08.2008] GSE2# |
89173-29255 |
— | ||
|
89178A
|
89178A
89178-33040 Sensor, Seat Position Air Bag[08.2005 - 08.2008] GSE20,21; GSE20,21 X PACKAGE&FRONT SEAT-SPORT FABRIC ,POWER SEAT; GSE20,21 X PACKAGE&FRONT SEAT-SPORT FABRIC ,POWER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
89178-33040 |
from US $38 |
||
|
89178A
|
89178A
89178-33050 Sensor, Seat Position Air Bag[08.2005 - 08.2008] GSE25; GSE20,21 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL; GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER; GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL; GSE20,21 FR |
89178-33050 |
from US $33.83 |
||
|
89833
|
89833
89831-0W040 Sensor, Air Bag, Rear Rh[08.2005 - 07.2007] GSE2# |
89831-0W040 |
from US $123.16 |
||
|
89833
|
89833
89831-22020 Sensor, Air Bag, Rear Rh[08.2007 - 08.2008] GSE2# |
89831-22020 |
US $110.66 |
||
|
89834
|
89834
89831-0W040 Sensor, Air Bag, Rear Rh[08.2005 - 07.2007] GSE2# |
89831-0W040 |
from US $123.16 |
||
|
89834
|
89834
89831-22020 Sensor, Air Bag, Rear Rh[08.2007 - 08.2008] GSE2# |
89831-22020 |
US $110.66 |
||
|
89860
|
89860
89831-02020 Sensor Assy, Side Air Bag, Rh[08.2005 - 07.2007] GSE2# |
89831-02020 |
from US $108.09 |
||
|
89860
|
89860
89831-53010 Sensor Assy, Side Air Bag, Rh[08.2007 - 08.2008] GSE2# |
89831-53010 |
from US $110.66 |
||
|
89860A
|
89860A
89831-02020 Sensor Assy, Side Air Bag, Rh[08.2005 - 07.2007] GSE2# |
89831-02020 |
from US $108.09 |
||
|
89860A
|
89860A
89831-53010 Sensor Assy, Side Air Bag, Rh[08.2007 - 08.2008] GSE2# |
89831-53010 |
from US $110.66 |
||
|
89952
|
89952
89952-0W060
Computer, Occupant Detection
[07.2006 - 02.2007] GSE2#; GSE20..ATM TAIWAN SPEC |
89952-0W060 |
— | ||
| replacement | |||||
|
89952
|
89952
89952-0W062
Computer, Occupant Detection
[07.2006 - 02.2007] GSE2#; GSE20..ATM TAIWAN SPEC |
89952-0W062 |
— | ||
|
89952
|
89952
89952-0W061
Computer, Occupant Detection
[03.2007 - 08.2008] GSE2#; GSE20..ATM TAIWAN SPEC |
89952-0W061 |
— | ||
| replacement | |||||
|
89952
|
89952
89952-0W062
Computer, Occupant Detection
[03.2007 - 08.2008] GSE2#; GSE20..ATM TAIWAN SPEC |
89952-0W062 |
— | ||
|
89952
|
89952
89952-0W062
Computer, Occupant Detection
[07.2010 - 08.2010] GSE2#; GSE20..ATM KOREA SPEC; GSE20..ATM KOREA SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER; GSE20..ATM KOREA SPEC&FRONT SEAT-SMOOTH LEATHER; GSE20..ATM KOREA SPEC&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT); GSE20..ATM KOREA SPE |
89952-0W062 |
— | ||
|
91553A0622
|
91553A0622
91553-A0622 New Genuine Part |
91553-A0622 |
US $1.08 |
||
|
9011908C48
|
9011908C48
90119-08C48
Direct
|
90119-08C48 |
— | ||
|
6264837010
|
6264837010
62648-37010 Cap, Side Trim |
62648-37010 |
US $2.18 |
||
|
7235633010
|
7235633010
72356-33010
Nut, Side Support, Rh
|
72356-33010 |
— | ||
|
9155380618
|
9155380618
91553-80618 Direct |
91553-80618 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
