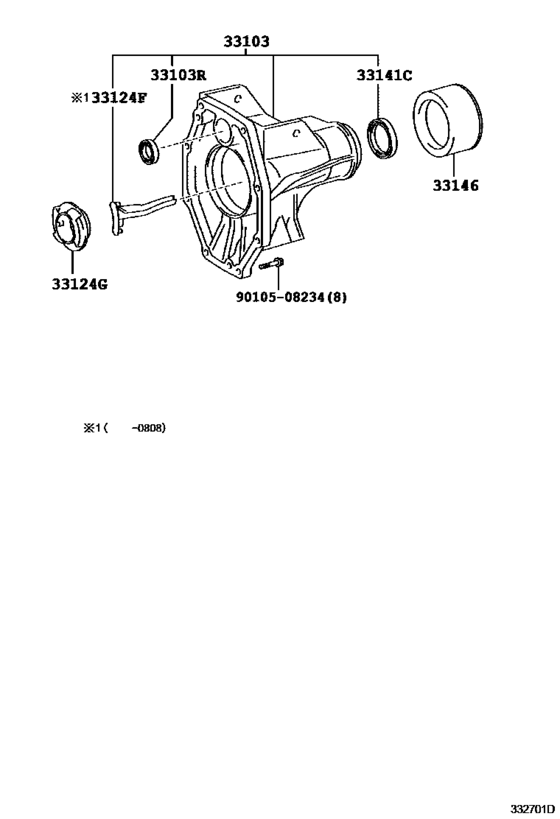

Extension Housing (Mtm) ([09.2005 - ] RA62 (0509- )MTM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2012
- Vehicle Model
- IS250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33103
|
33103
33103-53030
Housing Sub-Assy, Extension(Mtm)
[09.2005 - 08.2008] GSE20..MTM |
33103-53030 |
— | ||
|
33103
|
33103
33103-53050
Housing Sub-Assy, Extension(Mtm)
[08.2008 - 08.2010] GSE20..MTM |
33103-53050 |
— | ||
|
33103R
|
33103R
90311-18016
Seal, Oil(For Manual Transmission Extension Housing)
[09.2005 - 08.2008] GSE20..MTM |
90311-18016 |
— | ||
|
33124F
|
33124F
33124-53020
Pipe, Oil Receiver, No.1(For Extension Housing)
[09.2005 - 08.2008] GSE20..MTM |
33124-53020 |
— | ||
|
33124G
|
33124G
33124-53030
Pipe, Oil Receiver, No.2(For Extension Housing)
[09.2005 - 08.2008] GSE20..MTM |
33124-53030 |
— | ||
|
33141C
|
33141C
90311-40001 Seal, Oil(For Extension Housing)[09.2005 - 08.2008] GSE20..MTM |
90311-40001 |
US $7.17 |
||
|
33146
|
33146
33146-30020 Deflector, Extension Housing Dust(Mtm)[09.2005 - 08.2008] GSE20..MTM |
33146-30020 |
US $17.74 |
||
|
9010508234
|
9010508234
90105-08234 Bolt(For Transaxle Housing & Case Set) |
90105-08234 |
US $0.87 |
