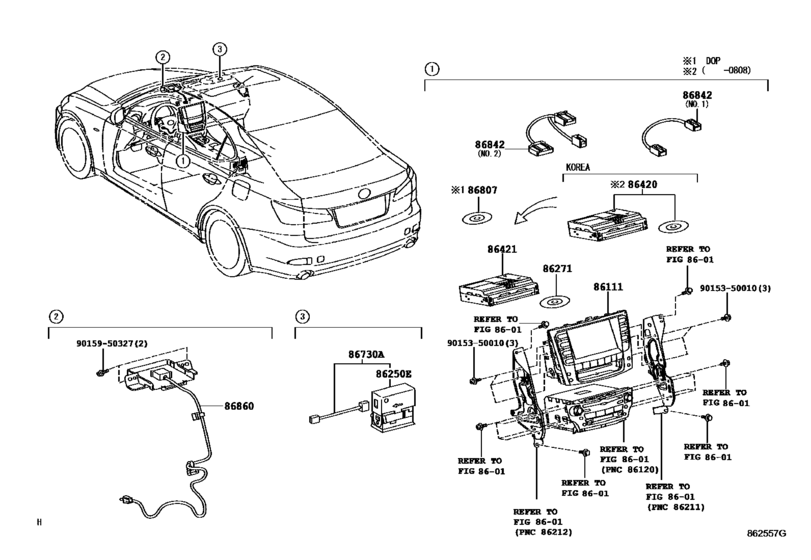

Navigation & Front Monitor Display ([08.2005 - 08.2009] (0508-0908)) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2012
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86111
|
86111
86111-53050
Multi-Display
[08.2005 - 08.2007] GSE20,25 DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE20,25 DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86111-53050 |
— | ||
| replacement | |||||
|
86111
|
86111
86111-53052 Multi-display[08.2005 - 08.2007] GSE20,25 DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE20,25 DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86111-53052 |
US $4,251.52 |
||
|
86111
|
86111
86111-53140
Multi-Display
[08.2007 - 08.2008] GSE20,25 DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE20,25 DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86111-53140 |
— | ||
|
86111
|
86111
86111-53280
Multi-Display
[08.2008 - 08.2009] GSE20,25 DENSO,EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
86111-53280 |
— | ||
|
86250E
|
86250E
86250-52030 Microphone Assy, Amplifier[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86250-52030 |
US $61.44 |
||
|
86271
|
86271
86271-53020
Disc, Disc Player
[08.2005 - 06.2006] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86271-53020 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-53021
Disc, Disc Player
[08.2005 - 06.2006] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86271-53021 |
— | ||
|
86271
|
86271
86271-53021
Disc, Disc Player
[07.2006 - 08.2007] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86271-53021 |
— | ||
|
86271
|
86271
86271-53022
Disc, Disc Player
[08.2007 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86271-53022 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-53023 Disc, Disc Player[08.2007 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86271-53023 |
US $693.06 |
||
|
86271
|
86271
86271-53023 Disc, Disc Player[08.2008 - 08.2009] GSE2# EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
86271-53023 |
US $693.06 |
||
|
86421
|
86421
86421-33040
Board, Navigation Module
[08.2007 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86421-33040 |
— | ||
|
86421
|
86421
86421-53020
Board, Navigation Module
[08.2005 - 06.2006] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86421-53020 |
— | ||
|
86730A
|
86730A
86730-53020
Microphone Assy, Telephone
[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86730-53020 |
— | ||
|
86730A
|
86730A
86730-53040
Microphone Assy, Telephone
[08.2009 - 08.2010] GSE2#; GSE20,21..ATM USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&CAR TELEPHONE-WITHOUT; GSE20..ATM KOREA SPEC&CAR TELEPHONE-WITHOUT; GSE21 MEXICO SPEC&CAR TELEPHONE-WITHOUT; GSE2# CAR TELEPHONE-WITHOUT |
86730-53040 |
— | ||
|
86842
|
86842
86842-53030
Wire, Navigation, No.1
[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.1; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION,NO.1 |
86842-53030 |
— | ||
|
86842
|
86842
86842-53050
Wire, Navigation, No.1
[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.2; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION,NO.2 |
86842-53050 |
— | ||
|
86860
|
86860
86860-53050 Antenna Assy, NavigationNAVIGATION [08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86860-53050 |
US $151.42 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
US $1.25 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
US $1.25 |
||
