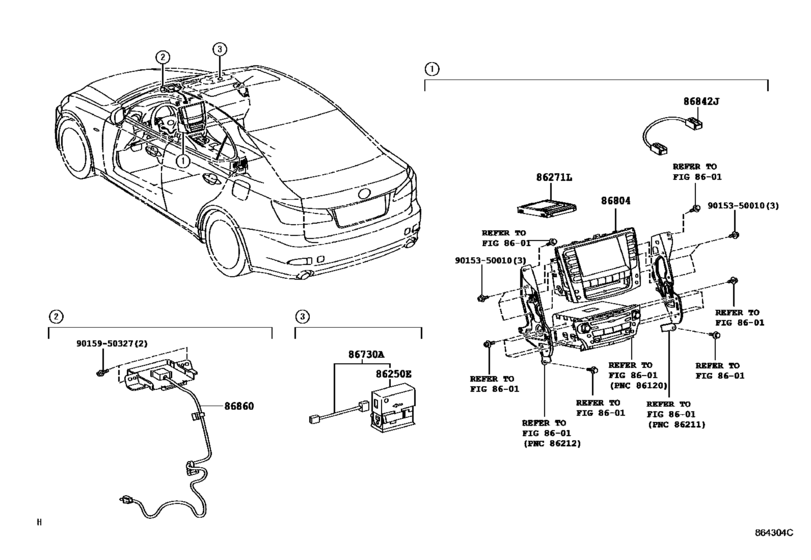

Navigation & Front Monitor Display ([08.2009 - 08.2012] HDD NAVIGATION SYSTEM (0908-1208)) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2012
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86250E
|
86250E
86250-52030 Microphone Assy, Amplifier[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86250-52030 |
US $61.44 |
||
|
86271L
|
86271L
86271-60141
Hard Disc
[08.2009 - 08.2010] GSE2#..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86271-60141 |
— | ||
|
86730A
|
86730A
86730-53020
Microphone Assy, Telephone
[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86730-53020 |
— | ||
|
86730A
|
86730A
86730-53040
Microphone Assy, Telephone
[08.2009 - 08.2010] GSE2#; GSE20,21..ATM USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&CAR TELEPHONE-WITHOUT; GSE20..ATM KOREA SPEC&CAR TELEPHONE-WITHOUT; GSE21 MEXICO SPEC&CAR TELEPHONE-WITHOUT; GSE2# CAR TELEPHONE-WITHOUT |
86730-53040 |
— | ||
|
86804
|
86804
86804-53370
Cover Sub-Assy, Navigation Computer
[08.2009 - 08.2010] GSE20,25..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE20,25 AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86804-53370 |
— | ||
|
86842J
|
86842J
86842-53070
Wire, Navigation, No.1
[08.2009 - 08.2010] GSE2#..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86842-53070 |
— | ||
|
86860
|
86860
86860-53050 Antenna Assy, NavigationNAVIGATION [08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86860-53050 |
US $151.42 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
US $1.25 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
US $1.25 |
