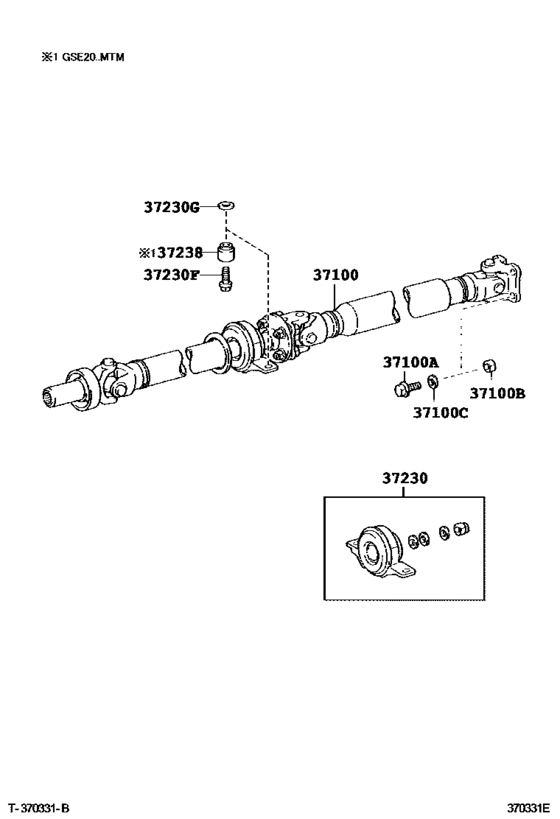

Propeller Shaft & Universal Joint ([08.2005 - ] REAR (0508- )GSE20,25) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2012
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-53101 Shaft Assy, Propeller W/center Bearing[09.2005 - 08.2008] GSE20 |
37100-53101 |
US $1,077.44 |
||
|
37100A
|
37100A
90105-10466 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.2005 - 08.2008] GSE20,25 |
90105-10466 |
US $2.51 |
||
|
37100B
|
37100B
90178-10007 Nut, No.1 (For Propeller Shaft & Differential Setting)[08.2005 - 08.2008] GSE20,25 |
90178-10007 |
US $1.43 |
||
|
37100C
|
37100C
90560-10102 Washer, No.1 (For Propeller Shaft & Differential Setting)[08.2005 - 08.2008] GSE20,25 |
90560-10102 |
US $1.25 |
||
|
37230
|
37230
37230-39095 Bearing Assy, Center Support, No.1[09.2005 - 08.2008] GSE20,25 |
37230-39095 |
US $119.72 |
||
|
37230F
|
37230F
91642-81065 Bolt(For Alternator)[09.2005 - 08.2008] GSE20..MTM L=33 |
91642-81065 |
US $3.23 |
||
|
37230G
|
37230G
90201-10008 Washer, No.2 (For Center Support Bearing)[08.2005 - 08.2008] GSE2# T=4.5 |
90201-10008 |
US $1.97 |
||
|
37230G
|
37230G
90201-10011 Washer, No.2 (For Center Support Bearing)[10.2005 - 08.2008] GSE2# OD=28,T=4.5 |
90201-10011 |
US $2.04 |
||
|
37230G
|
37230G
90201-10017 Washer, No.2 (For Center Support Bearing)[08.2005 - 08.2008] GSE2# T=9.0 |
90201-10017 |
US $2.48 |
||
|
37230G
|
37230G
90201-10033 Washer, No.2 (For Center Support Bearing)[08.2005 - 08.2008] GSE2# T=6.5 |
90201-10033 |
US $2.61 |
||
|
37230G
|
37230G
90201-10034 Washer, No.2 (For Center Support Bearing)[08.2005 - 08.2008] GSE2# T=11.0 |
90201-10034 |
US $3.94 |
||
|
37230G
|
37230G
90201-10036
Washer, No.2 (For Center Support Bearing)
[10.2005 - 08.2008] GSE2# OD=28,T=2.0 |
90201-10036 |
— | ||
|
37230G
|
37230G
90201-10106 Washer, No.2 (For Center Support Bearing)[08.2005 - 08.2008] GSE2# T=2.0 |
90201-10106 |
US $0.87 |
||
|
37238
|
37238
37238-53010
Damper, Center Support Bearing
[09.2005 - 08.2008] GSE20..MTM |
37238-53010 |
— |
