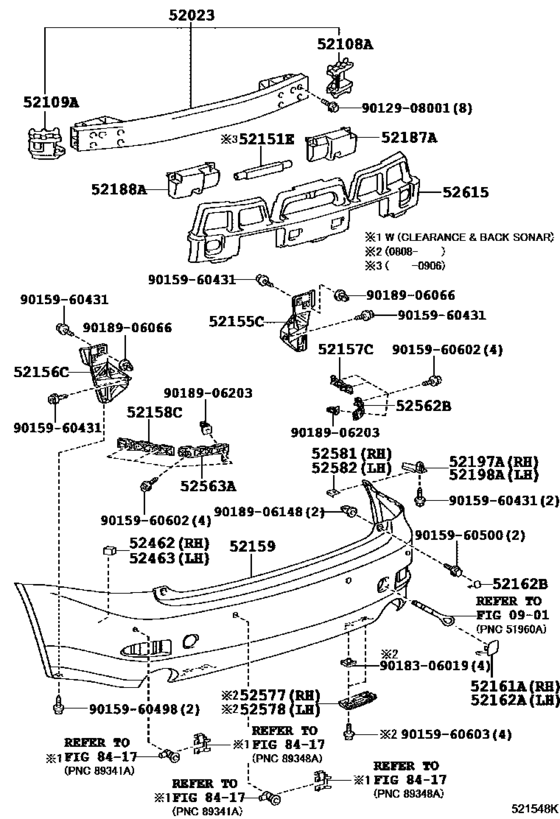

Rear Bumper & Bumper Stay ([08.2005 - ] (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2012
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-53030 Reinforcement Sub-Assy, Rear BumperREAR BUMPER [08.2005 - 08.2008] GSE2# |
52023-53030 |
US $749.84 |
||
|
52108A
|
52108A
52108-53010 Bumper Sub-Assy, Rear Side, RhREAR SIDE, RH [08.2005 - 08.2008] GSE2# |
52108-53010 |
US $122.30 |
||
|
52109A
|
52109A
52109-53010 Bumper Sub-Assy, Rear Side, LhREAR SIDE, LH [08.2005 - 08.2008] GSE2# |
52109-53010 |
US $122.30 |
||
|
52151E
|
52151E
52151-50010 Bar, Rear BumperREAR BUMPER [08.2005 - 08.2008] GSE2# |
52151-50010 |
US $154.34 |
||
|
52155C
|
52155C
52155-53040 Support, Rear Bumper Side, No.1 Rh[08.2005 - 08.2008] GSE2# |
52155-53040 |
US $34.61 |
||
|
52156C
|
52156C
52156-53010 Support, Rear Bumper Side, No.1 Lh[08.2005 - 08.2008] GSE2# |
52156-53010 |
US $34.61 |
||
|
52157C
|
52157C
52157-53040 Support, Rear Bumper Side, No.2 Rh[08.2005 - 08.2008] GSE2# |
52157-53040 |
US $34.61 |
||
|
52158C
|
52158C
52158-53040 Support, Rear Bumper Side, No.2 Lh[08.2005 - 08.2008] GSE2# |
52158-53040 |
US $34.61 |
||
|
52159
|
52159
52159-53905 Cover, Rear BumperREAR BUMPER [08.2005 - 08.2008] GSE2# |
52159-53905 |
US $978.12 |
||
|
52159
|
52159
52159-53906 Cover, Rear BumperREAR BUMPER [08.2005 - 08.2008] GSE2# CLEARANCE & BACK SONAR-WITH |
52159-53906 |
US $978.12 |
||
|
52159
|
52159
52159-53917
Cover, Rear Bumper
[08.2008 - 10.2009] GSE2# |
52159-53917 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-53929 Cover, Rear BumperREAR BUMPER [08.2008 - 10.2009] GSE2# |
52159-53929 |
US $786.24 |
||
|
52159
|
52159
52159-53918
Cover, Rear Bumper
[08.2008 - 10.2009] GSE2# CLEARANCE & BACK SONAR-WITH |
52159-53918 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-53926
Cover, Rear Bumper
[08.2008 - 10.2009] GSE2# CLEARANCE & BACK SONAR-WITH |
52159-53926 |
— | ||
|
52159
|
52159
52159-53929 Cover, Rear BumperREAR BUMPER [10.2009 - 08.2010] GSE2# |
52159-53929 |
US $786.24 |
||
|
52159
|
52159
52159-53930
Cover, Rear Bumper
[10.2009 - 08.2010] GSE2# CLEARANCE & BACK SONAR-WITH |
52159-53930 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-53926
Cover, Rear Bumper
[10.2009 - 08.2010] GSE2# CLEARANCE & BACK SONAR-WITH |
52159-53926 |
— | ||
|
52159
|
52159
52159-53933
Cover, Rear Bumper
[08.2010 -] GSE2# CLEARANCE & BACK SONAR-WITH |
52159-53933 |
— | ||
|
52161A
|
52161A
52161-53902 Piece, Rear Bumper, RhREAR BUMPER, RH [08.2005 - 08.2008] GSE2# |
52161-53902 |
US $4.05 |
||
|
52161A
|
52161A
52161-53904
Piece, Rear Bumper, Rh
[08.2008 - 08.2010] GSE2# |
52161-53904 |
— | ||
|
52162A
|
52162A
52162-53903 Piece, Rear Bumper, LhREAR BUMPER, LH [08.2005 - 08.2008] GSE2# |
52162-53903 |
US $4.05 |
||
|
52162A
|
52162A
52162-53906
Piece, Rear Bumper, Lh
[08.2008 - 08.2010] GSE2# |
52162-53906 |
— | ||
|
52162B
|
52162B
52162-53904 Plate, Rear Bumper, No.1REAR BUMPER, NO.1 [08.2005 - 08.2008] GSE2# |
52162-53904 |
US $4.12 |
||
|
52187A
|
52187A
52187-53010 Reinforcement, Rear Bumper Arm, RhREAR BUMPER ARM, RH [08.2005 - 08.2008] GSE2# |
52187-53010 |
US $49.36 |
||
|
52188A
|
52188A
52188-53020 Reinforcement, Rear Bumper Arm, LhREAR BUMPER ARM, LH [08.2005 - 08.2008] GSE2# |
52188-53020 |
US $49.36 |
||
|
52197A
|
52197A
52197-53020 Bracket, Rear Bumper Seal, Rh[08.2005 - 08.2008] GSE2# |
52197-53020 |
US $6.99 |
||
|
52198A
|
52198A
52198-53010 Bracket, Rear Bumper Seal, Lh[08.2005 - 08.2008] GSE2# |
52198-53010 |
US $6.99 |
||
|
52462
|
52462
52462-53020 Pad, Rear Bumper[08.2005 - 08.2008] GSE2# |
52462-53020 |
US $3.58 |
||
|
52463
|
52463
52462-53020 Pad, Rear Bumper[08.2005 - 08.2008] GSE2# |
52462-53020 |
US $3.58 |
||
|
52562B
|
52562B
52562-53010 Retainer, Rear Bumper, Upper Rh[08.2005 - 08.2008] GSE2# |
52562-53010 |
US $50.57 |
||
|
52563A
|
52563A
52563-53010 Retainer, Rear Bumper, Upper Lh[08.2005 - 08.2008] GSE2# |
52563-53010 |
US $50.57 |
||
|
52577
|
52577
52577-30100 Retainer, Rear Bumper Side, No.2 Rh[08.2008 - 08.2010] GSE2# |
52577-30100 |
US $15.55 |
||
|
52578
|
52578
52578-30100 Retainer, Rear Bumper Side, No.2 Lh[08.2008 - 08.2010] GSE2# |
52578-30100 |
US $15.55 |
||
|
52581
|
52581
52581-53010 Protector, Rear Bumper, Rh[08.2005 - 08.2008] GSE2# |
52581-53010 |
US $2.87 |
||
|
52582
|
52582
52582-53010 Protector, Rear Bumper, Lh[08.2005 - 08.2008] GSE2# |
52582-53010 |
US $2.87 |
||
|
52615
|
52615
52615-53060 Absorber, Rear Bumper EnergyREAR BUMPER ENERGY [08.2005 - 08.2008] GSE2# |
52615-53060 |
US $157.25 |
||
|
9012908001
|
9012908001
90129-08001 BOLT WWASHER |
90129-08001 |
US $1.97 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
US $1.25 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
US $1.25 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $1.25 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $1.08 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.64 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
US $1.43 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
US $1.43 |
||
|
9018906148
|
9018906148
90189-06148 GROMMET, SCREW |
90189-06148 |
US $1.43 |
||
|
9018906203
|
9018906203
90189-06203 GROMMET SCREW |
90189-06203 |
US $1.25 |
||
