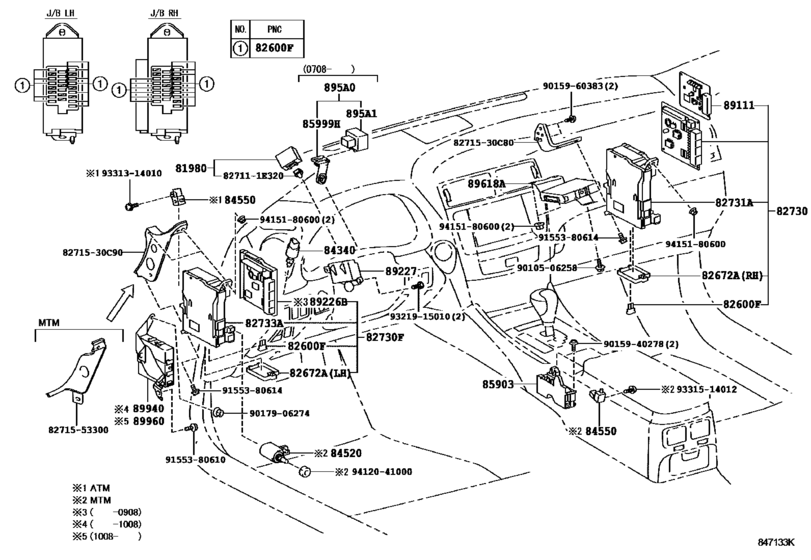

Switch & Relay & Computer ([08.2005 - ] COWL (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2012
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-53010 Relay Assy, Stop Lamp Control[08.2007 - 08.2008] GSE2# |
895A0-53010 |
US $66.25 |
||
|
895A0
|
895A0
895A0-53020 Relay Assy, Stop Lamp Control[08.2010 -] GSE2# |
895A0-53020 |
US $55.18 |
||
|
895A1
|
895A1
895A1-12010 Relay, Stop Lamp ControlSTOP LAMP CONTROL [08.2010 -] GSE2# |
895A1-12010 |
US $50.67 |
||
|
895A1
|
895A1
895A1-53010 Relay, Stop Lamp Control[08.2007 - 08.2008] GSE2# |
895A1-53010 |
US $60.86 |
||
| replacement | |||||
|
895A1
|
895A1
895A1-12010 Relay, Stop Lamp ControlSTOP LAMP CONTROL [08.2007 - 08.2008] GSE2# |
895A1-12010 |
US $50.67 |
||
|
81980
|
81980
81980-53030 Flasher Assy, Turn SignalTURN SIGNAL [08.2005 - 08.2008] GSE2# |
81980-53030 |
US $70.18 |
||
|
82600F
|
82600F
90982-08283 Fusible Link[09.2005 - 07.2006] GSE20..MTM 30A,TERMINAL:FEMALE,LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20..MTM 30A,TERMINAL:FEMALE,SPORT PACKAGE&HEAD LAMP CLEANER-WITH |
90982-08283 |
US $7.88 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2005 - 07.2006] GSE20..ATM 7.5A,MINI FUSE,KOREA SPEC&LUXURY PACKAGE; GSE20..ATM 7.5A,MINI FUSE,KOREA SPEC&LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20..ATM 7.5A,MINI FUSE,KOREA SPEC&SPORT PACKAGE; GSE20..ATM 7.5A,MINI FUSE,KOREA SPEC&SPORT PACKAGE&HEA |
90982-09020 |
US $1.25 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2005 - 07.2006] GSE20..ATM 10A,MINI FUSE,KOREA SPEC&LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20..ATM 10A,MINI FUSE,KOREA SPEC&SPORT PACKAGE&HEAD LAMP CLEANER-WITH; GSE2# 10A,MINI FUSE,LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20,21 10A,MINI FUSE,SPOR |
90982-09021 |
US $1.25 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2005 - 07.2006] GSE20..ATM 15A,MINI FUSE,KOREA SPEC&LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20..ATM 15A,MINI FUSE,KOREA SPEC&SPORT PACKAGE&HEAD LAMP CLEANER-WITH; GSE2# 15A,MINI FUSE,LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20,21 15A,MINI FUSE,SPOR |
90982-09022 |
US $1.25 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2005 - 07.2006] GSE20..ATM 20A,MINI FUSE,KOREA SPEC&LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20..ATM 20A,MINI FUSE,KOREA SPEC&SPORT PACKAGE&HEAD LAMP CLEANER-WITH; GSE2# 20A,MINI FUSE,LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20,21 20A,MINI FUSE,SPOR |
90982-09023 |
US $1.25 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2005 - 07.2006] GSE20..ATM 25A,MINI FUSE,KOREA SPEC&LUXURY PACKAGE; GSE20..ATM 25A,MINI FUSE,KOREA SPEC&LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20..ATM 25A,MINI FUSE,KOREA SPEC&SPORT PACKAGE; GSE20..ATM 25A,MINI FUSE,KOREA SPEC&SPORT PACKAGE&HEAD LA |
90982-09024 |
US $1.25 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2005 - 07.2006] GSE20..ATM 30A,MINI FUSE,KOREA SPEC&LUXURY PACKAGE; GSE20..ATM 30A,MINI FUSE,KOREA SPEC&LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20..ATM 30A,MINI FUSE,KOREA SPEC&SPORT PACKAGE; GSE20..ATM 30A,MINI FUSE,KOREA SPEC&SPORT PACKAGE&HEAD LA |
90982-09025 |
US $1.43 |
||
|
82672A
|
82672A
82672-53040 Cover, Junction BlockJUNCTION BLOCK [08.2005 - 01.2008] GSE2# RH |
82672-53040 |
US $5.82 |
||
|
82672A
|
82672A
82672-53041
Cover, Junction Block
[08.2008 - 08.2010] GSE2# RH |
82672-53041 |
— | ||
|
82672A
|
82672A
82672-53060 Cover, Junction BlockJUNCTION BLOCK [08.2005 - 08.2008] GSE2# LH |
82672-53060 |
US $4.80 |
||
|
82730
|
82730
82730-53060
Block Assy, Instrument Panel Junction
[09.2005 - 07.2006] GSE20..MTM |
82730-53060 |
— | ||
|
82730
|
82730
82730-53061
Block Assy, Instrument Panel Junction
[07.2006 - 02.2007] GSE20..MTM |
82730-53061 |
— | ||
| replacement | |||||
|
82730
|
82730
82730-53062
Block Assy, Instrument Panel Junction
[07.2006 - 02.2007] GSE20..MTM |
82730-53062 |
— | ||
|
82730
|
82730
82730-53062
Block Assy, Instrument Panel Junction
[03.2007 - 08.2007] GSE20..MTM |
82730-53062 |
— | ||
|
82730
|
82730
82730-53063
Block Assy, Instrument Panel Junction
[08.2007 - 08.2008] GSE20..MTM |
82730-53063 |
— | ||
|
82730
|
82730
82730-53064
Block Assy, Instrument Panel Junction
[08.2008 - 08.2009] GSE20..MTM |
82730-53064 |
— | ||
|
82730
|
82730
82730-53065
Block Assy, Instrument Panel Junction
[08.2009 - 08.2010] GSE20..MTM |
82730-53065 |
— | ||
|
82730
|
82730
82730-53066
Block Assy, Instrument Panel Junction
[08.2010 - 08.2011] GSE20..MTM |
82730-53066 |
— | ||
|
82730
|
82730
82730-53067
Block Assy, Instrument Panel Junction
[08.2011 - 08.2012] GSE20..MTM |
82730-53067 |
— | ||
|
82730
|
82730
82730-53080
Block Assy, Instrument Panel Junction
[09.2005 - 07.2006] GSE20..MTM CANADA SPEC |
82730-53080 |
— | ||
|
82730
|
82730
82730-53081
Block Assy, Instrument Panel Junction
[07.2006 - 02.2007] GSE20..MTM CANADA SPEC |
82730-53081 |
— | ||
| replacement | |||||
|
82730
|
82730
82730-53082
Block Assy, Instrument Panel Junction
[07.2006 - 02.2007] GSE20..MTM CANADA SPEC |
82730-53082 |
— | ||
|
82730
|
82730
82730-53082
Block Assy, Instrument Panel Junction
[03.2007 - 08.2007] GSE20..MTM CANADA SPEC |
82730-53082 |
— | ||
|
82730
|
82730
82730-53083
Block Assy, Instrument Panel Junction
[08.2007 - 08.2008] GSE20..MTM CANADA SPEC |
82730-53083 |
— | ||
|
82730
|
82730
82730-53084
Block Assy, Instrument Panel Junction
[08.2008 - 08.2009] GSE20..MTM CANADA SPEC |
82730-53084 |
— | ||
|
82730
|
82730
82730-53085
Block Assy, Instrument Panel Junction
[08.2009 - 08.2010] GSE20..MTM CANADA SPEC |
82730-53085 |
— | ||
|
82730
|
82730
82730-53086
Block Assy, Instrument Panel Junction
[08.2010 - 08.2011] GSE20..MTM CANADA SPEC |
82730-53086 |
— | ||
|
82730
|
82730
82730-53087
Block Assy, Instrument Panel Junction
[08.2011 - 08.2012] GSE20..MTM CANADA SPEC |
82730-53087 |
— | ||
|
82730
|
82730
82730-53B80
Block Assy, Instrument Panel Junction
[08.2009 - 08.2010] GSE20..MTM USA POSSESSIONS SPEC(GUAM,PUERTO RICO) |
82730-53B80 |
— | ||
|
82730F
|
82730F
82730-53050 Block Assy, Junction, LhJUNCTION, LH [08.2005 - 08.2008] GSE2# |
82730-53050 |
US $623.17 |
||
|
82730F
|
82730F
82730-53051
Block Assy, Junction, Lh
[08.2009 - 08.2010] GSE2# |
82730-53051 |
— | ||
|
82730F
|
82730F
82730-53052
Block Assy, Junction, Lh
[08.2010 - 08.2012] GSE2# |
82730-53052 |
— | ||
|
82731A
|
82731A
82731-53030 Block, Cowl Side Junction, Rh[08.2005 - 01.2008] GSE2# |
82731-53030 |
US $96.10 |
||
|
82733A
|
82733A
82733-53040 Block, Cowl Side Junction, Lh[08.2005 - 08.2008] GSE2# |
82733-53040 |
US $119.92 |
||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[08.2007 - 08.2008] GSE2# |
84340-30110 |
US $31.08 |
||
|
84340
|
84340
84340-47020 Switch Assy, Stop Lamp[08.2005 - 08.2007] GSE2# |
84340-47020 |
US $73.92 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[09.2005 - 08.2008] GSE20..MTM |
84520-42010 |
US $37.97 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[09.2005 - 08.2008] GSE20..MTM |
84550-33010 |
US $20.33 |
||
|
85999H
|
85999H
895A9-53010 Bracket, Relay[08.2007 - 08.2008] GSE2# |
895A9-53010 |
US $5.53 |
||
|
85999H
|
85999H
895A9-53020 Bracket, Relay[08.2010 -] GSE2# |
895A9-53020 |
US $5.39 |
||
|
89111
|
89111
89100-53010 Computer, Network Gateway[08.2005 - 08.2007] GSE2# |
89100-53010 |
US $707.62 |
||
|
89111
|
89111
89100-53020 Computer, Network Gateway[08.2007 - 08.2008] GSE2# |
89100-53020 |
US $707.62 |
||
|
89111
|
89111
89100-53030 Computer, Network Gateway[08.2008 - 08.2010] GSE2# |
89100-53030 |
US $589.68 |
||
| replacement | |||||
|
89111
|
89111
89100-53031 Computer, Network Gateway[08.2008 - 08.2010] GSE2# |
89100-53031 |
US $490.67 |
||
|
89111
|
89111
89100-53031 Computer, Network Gateway[08.2010 -] GSE2# |
89100-53031 |
US $490.67 |
||
|
89226B
|
89226B
89226-53010 Computer, Multiplex Network Body, No.2[08.2005 - 08.2008] GSE2# |
89226-53010 |
US $591.14 |
||
|
89227
|
89227
89227-30020 Computer, Multiplex Tilt & Telescopic[08.2005 - 08.2008] GSE20..MTM LUXURY PACKAGE; GSE20..MTM SPORT PACKAGE |
89227-30020 |
US $492.13 |
||
|
89618A
|
89618A
89670-53030 Computer, Power Source ControlPOWER SOURCE CONTROL [09.2005 - 08.2008] GSE20..MTM |
89670-53030 |
US $575.12 |
||
| replacement | |||||
|
89618A
|
89618A
89670-53110
Computer, Power Source Control
[09.2005 - 08.2008] GSE20..MTM |
89670-53110 |
— | ||
|
89618A
|
89618A
89670-53110
Computer, Power Source Control
[08.2008 - 08.2010] GSE20..MTM |
89670-53110 |
— | ||
|
89940
|
89940
89940-53010
Computer Assy, Headlamp Swivel
[08.2005 - 07.2006] GSE20,21 LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
89940-53010 |
— | ||
| replacement | |||||
|
89940
|
89940
89940-53011
Computer Assy, Headlamp Swivel
[08.2005 - 07.2006] GSE20,21 LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
89940-53011 |
— | ||
|
89940
|
89940
89940-53011
Computer Assy, Headlamp Swivel
[06.2007 - 08.2008] GSE20,21 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
89940-53011 |
— | ||
|
89940
|
89940
89940-53080
Computer Assy, Headlamp Swivel
[08.2008 - 08.2010] GSE20,21 HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
89940-53080 |
— | ||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.25 |
||
|
8271530C80
|
8271530C80
82715-30C80 Bracket,wiring Harness Clamp |
82715-30C80 |
US $9.46 |
||
|
8271530C90
|
8271530C90
82715-30C90 Bracket,wiring Harness Clamp |
82715-30C90 |
US $18.78 |
||
|
8271553300
|
8271553300
82715-53300
Bracket,wiring Harness Clamp
|
82715-53300 |
— | ||
|
9010506258
|
9010506258
90105-06258 BOLT, WASHER BASED |
90105-06258 |
US $1.97 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
US $1.25 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $1.25 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $1.08 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9321915010
|
9321915010
93219-15010 SCREW |
93219-15010 |
US $2.04 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.90 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $1.43 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
US $1.08 |
||
