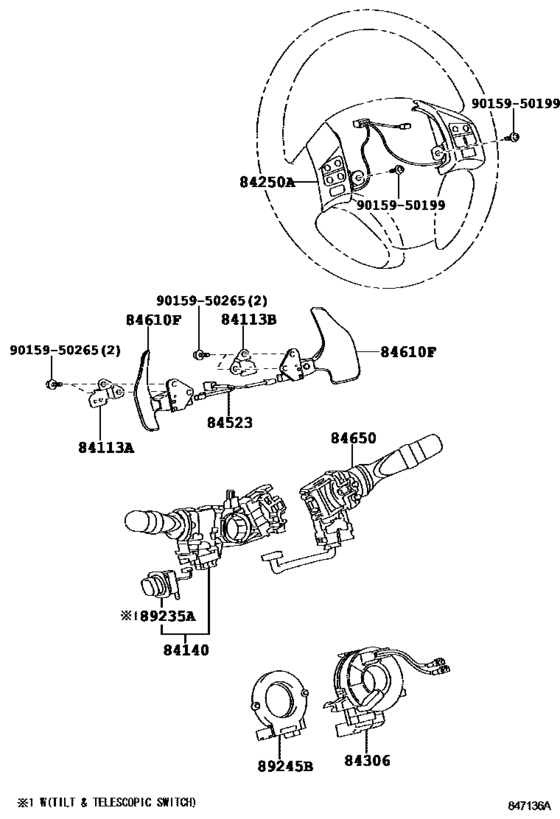

Switch & Relay & Computer ([08.2005 - ] STEERING (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2012
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-48130 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2005 - 08.2008] GSE2# |
84140-48130 |
US $164.53 |
||
| replacement | |||||
|
84140
|
84140
84140-48200
Switch Assy, Headlamp Dimmer
[08.2005 - 08.2008] GSE2# |
84140-48200 |
— | ||
|
84140
|
84140
84140-48140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2005 - 08.2008] GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
84140-48140 |
US $198.02 |
||
| replacement | |||||
|
84140
|
84140
84140-48210 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2005 - 08.2008] GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
84140-48210 |
US $129.58 |
||
|
84140
|
84140
84140-48200
Switch Assy, Headlamp Dimmer
[08.2008 - 08.2010] GSE2# |
84140-48200 |
— | ||
|
84140
|
84140
84140-48210 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2008 - 10.2008] GSE20..MTM LUXURY PACKAGE; GSE20..MTM SPORT PACKAGE |
84140-48210 |
US $129.58 |
||
|
84140
|
84140
84140-76020
Switch Assy, Headlamp Dimmer
[08.2011 -] GSE2# |
84140-76020 |
— | ||
|
84250A
|
84250A
84250-53010-C0
Switch Assy, Steering Pad
[09.2005 - 08.2008] GSE20..MTM BLACK,TRIM0#,1#,2# |
84250-53010-C0 |
— | ||
| replacement | |||||
|
84250A
|
84250A
84250-53020-C0 Switch Assy, Steering Pad[09.2005 - 08.2008] GSE20..MTM BLACK,TRIM0#,1#,2# |
84250-53020-C0 |
US $135.41 |
||
|
84250A
|
84250A
84250-53070-C0 Switch Assy, Steering Pad[09.2005 - 08.2008] GSE20..MTM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,BLACK,TRIM0#,1#,2#; GSE20..MTM AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION,BLACK,TRIM0#,1#,2# |
84250-53070-C0 |
US $147.06 |
||
|
84250A
|
84250A
84250-53130 Switch Assy, Steering Pad[08.2010 - 12.2010] GSE20..MTM |
84250-53130 |
US $173.26 |
||
|
84250A
|
84250A
84250-53131 Switch Assy, Steering Pad[12.2010 - 08.2012] GSE20..MTM |
84250-53131 |
US $173.26 |
||
|
84306
|
84306
84306-48030
Cable Sub-Assy, Spiral
[08.2005 - 08.2008] GSE2# |
84306-48030 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[08.2005 - 08.2008] GSE2# |
84306-48031 |
US $228.80 |
||
|
84650
|
84650
84652-30541 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2005 - 08.2008] GSE2# |
84652-30541 |
US $131.04 |
||
| replacement | |||||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2005 - 08.2008] GSE2# |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2008 - 08.2010] GSE2# |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30551 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2005 - 08.2008] GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
84652-30551 |
US $136.86 |
||
| replacement | |||||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[09.2005 - 08.2008] GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
84652-30552 |
— | ||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[08.2008 - 10.2008] GSE20..MTM LUXURY PACKAGE; GSE20..MTM SPORT PACKAGE |
84652-30552 |
— | ||
|
84650
|
84650
84652-53160
Switch Assy, Windshield Wiper
[08.2011 -] GSE2# |
84652-53160 |
— | ||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[08.2005 - 08.2008] GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-52030 Sensor, Steering[08.2005 - 08.2008] GSE2# |
89245-52030 |
US $211.41 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
US $1.25 |
||
|
9015950265
|
9015950265
90159-50265 New Genuine Part |
90159-50265 |
US $1.25 |
||
