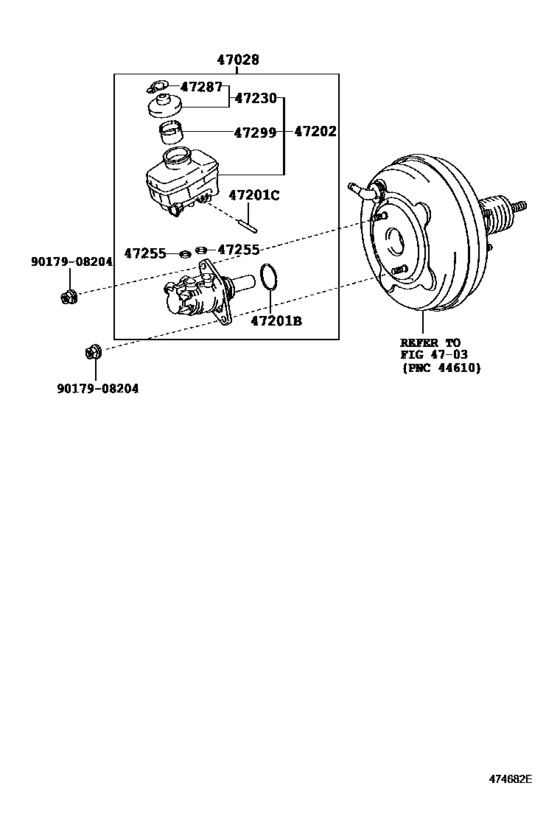

Brake Master Cylinder ([08.2005 - ] (0508- )LHD) Diagram Toyota LEXUS IS
- Year
- 2005 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2010
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47028
|
47028
47028-53020
Cylinder Sub-Assy, Brake Master W/plate
[09.2005 - 08.2008] ALE20,GSE20..LHD..MTM |
47028-53020 |
— | ||
|
47201B
|
47201B
90029-20059 Ring, O(For Brake Master Cylinder)[08.2005 - 08.2008] ALE20,GSE20 |
90029-20059 |
from US $2.19 |
||
|
47201C
|
47201C
90029-15803 Ring Pin, Brake Master Cylinder[08.2005 - 08.2008] ALE20,GSE20 |
90029-15803 |
US $1.05 |
||
|
47202
|
47202
47220-53080
Reservoir Sub-Assy, Brake Master Cylinder
[09.2005 - 08.2008] ALE20,GSE20..LHD..MTM |
47220-53080 |
— | ||
|
47230
|
47230
47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler[08.2005 - 08.2008] ALE20,GSE20 |
47230-20140 |
from US $6.60 |
||
|
47255
|
47255
90029-48001 Grommet, Master Cylinder Reservoir[08.2005 - 08.2008] ALE20,GSE20 |
90029-48001 |
US $6.45 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[08.2005 - 08.2008] ALE20,GSE20 |
47287-20010 |
US $2.33 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[08.2005 - 08.2008] ALE20,GSE20 |
47299-20060 |
US $2.41 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
