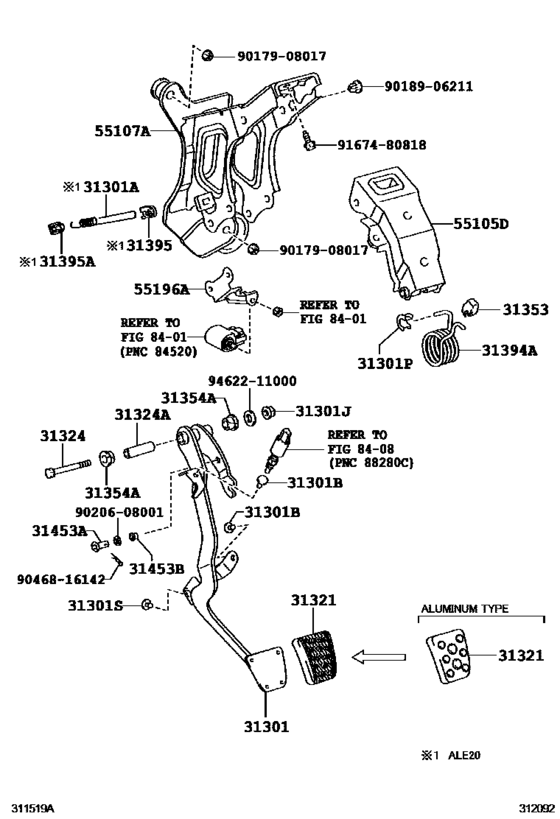

Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2010
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-53110
Pedal Sub-Assy, Clutch
[09.2005 - 08.2008] GSE20..LHD..MTM |
31301-53110 |
— | ||
|
31301B
|
31301B
90541-06036 Cushion, No.1(For Clutch Pedal)[09.2005 - 08.2008] ALE20,GSE20..LHD..MTM |
90541-06036 |
from US $0.87 |
||
| replacement | |||||
|
31301B
|
31301B
90541060361
CUSHION
[09.2005 - 08.2008] ALE20,GSE20..LHD..MTM |
90541060361 |
— | ||
|
31301J
|
31301J
94130-01001 Nut(For Clutch Pedal Stopper)[09.2005 - 08.2008] ALE20,GSE20..MTM |
94130-01001 |
US $1.97 |
||
|
31301P
|
31301P
90386-05017 Bush(For Clutch Pedal Turnover)[09.2005 - 01.2006] ALE20,GSE20..MTM |
90386-05017 |
from US $1.97 |
||
|
31301P
|
31301P
90389-06055 Bush(For Clutch Pedal Turnover)[02.2006 - 08.2008] ALE20,GSE20..MTM |
90389-06055 |
from US $1.79 |
||
|
31301S
|
31301S
90541-06046 Cushion, No.2(For Clutch Pedal)[09.2005 - 08.2008] ALE20,GSE20..MTM |
90541-06046 |
from US $1.31 |
||
|
31321
|
31321
31321-12040 Pad, Clutch Pedal[09.2005 - 08.2008] ALE20,GSE20..MTM..LUX |
31321-12040 |
from US $4.10 |
||
|
31321
|
31321
31321-53010 Pad, Clutch Pedal[09.2005 - 07.2006] GSE20..MTM SPORT PACKAGE |
31321-53010 |
from US $26.98 |
||
|
31324
|
31324
90101-10164 Shaft, Clutch Pedal[09.2005 - 08.2008] ALE20,GSE20..MTM |
90101-10164 |
US $1.16 |
||
|
31324A
|
31324A
90387-10105 Collar, Clutch Pedal Shaft[09.2005 - 08.2008] ALE20,GSE20..MTM |
90387-10105 |
US $2.18 |
||
|
31353
|
31353
31353-26010 Holder, Clutch Pedal Spring[09.2005 - 08.2008] ALE20,GSE20..MTM |
31353-26010 |
from US $2.95 |
||
|
31354A
|
31354A
90386-13015 Bush(For Clutch Pedal)[09.2005 - 08.2008] ALE20,GSE20..MTM |
90386-13015 |
from US $1.29 |
||
|
31394A
|
31394A
31394-53010 Spring, Pedal W/hookPEDAL W/HOOK [09.2005 - 08.2008] GSE20..MTM |
31394-53010 |
US $17.91 |
||
|
31453A
|
31453A
90240-08006 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[09.2005 - 08.2008] ALE20,GSE20..MTM L=23.5 |
90240-08006 |
from US $1.63 |
||
|
31453B
|
31453B
90386-08036 Bush(For Clutch Master Cylinder Push Rod Clevis)[09.2005 - 08.2008] ALE20,GSE20..MTM |
90386-08036 |
US $2.15 |
||
|
55105D
|
55105D
55105-53020
Bracket Sub-Assy, Clutch Pedal
[09.2005 - 08.2008] ALE20,GSE20..LHD..MTM |
55105-53020 |
— | ||
|
55107A
|
55107A
55107-53050
Support Sub-Assy, Clutch Pedal
[09.2005 - 08.2008] ALE20,GSE20..LHD..MTM |
55107-53050 |
— | ||
|
55196A
|
55196A
55196-53030
Bracket, Clutch Start Switch Mounting
[09.2005 - 08.2008] ALE20,GSE20..LHD..MTM |
55196-53030 |
— | ||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.76 |
||
|
9018906211
|
9018906211
90189-06211 GROMMET SCREW |
90189-06211 |
from US $0.70 |
||
|
9020608001
|
9020608001
90206-08001 WASHER |
90206-08001 |
US $2.15 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.80 |
||
|
9167480818
|
9167480818
91674-80818 BOLT FLANGE |
91674-80818 |
from US $0.80 |
||
|
9462211000
|
9462211000
94622-11000 WASHER |
94622-11000 |
from US $1.37 |
||
