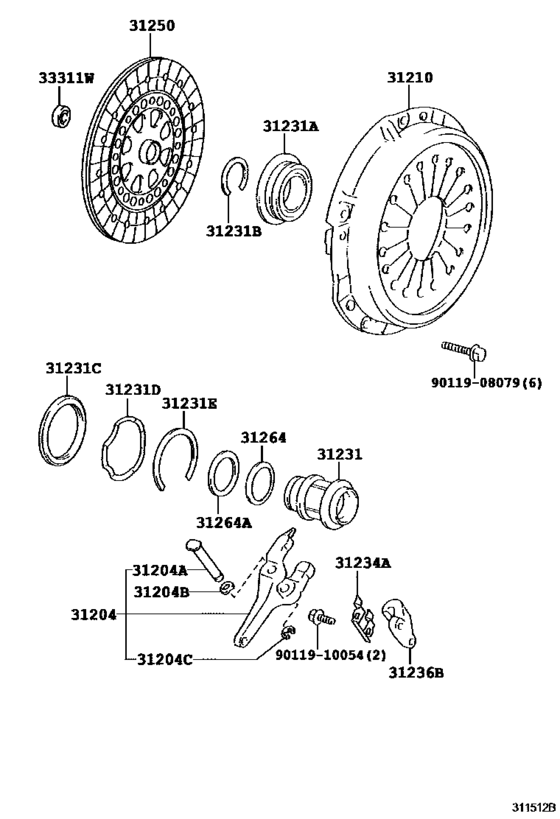

Clutch & Release Fork ([09.2005 - ] (0509- )GSE20..MTM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2010
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31204
|
31204
31204-53010 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [09.2005 - 08.2008] GSE20..MTM |
31204-53010 |
US $69.74 |
||
|
31204A
|
31204A
90249-12044 Pin(For Clutch Release Fork)[09.2005 - 08.2008] GSE20..MTM |
90249-12044 |
US $9.26 |
||
|
31204B
|
31204B
90206-80001 Washer, Wave(For Clutch Release Fork)[09.2005 - 08.2008] GSE20..MTM |
90206-80001 |
US $0.79 |
||
|
31204C
|
31204C
96160-00900 Ring, E(For Injection Pump Lever)[09.2005 - 08.2008] GSE20..MTM |
96160-00900 |
from US $1.61 |
||
|
31210
|
31210
31210-53031
Cover Assy, Clutch
[09.2005 - 02.2008] GSE20..MTM |
31210-53031 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-53032
Cover Assy, Clutch
[09.2005 - 02.2008] GSE20..MTM |
31210-53032 |
— | ||
|
31210
|
31210
31210-53032
Cover Assy, Clutch
[03.2008 - 08.2008] GSE20..MTM |
31210-53032 |
— | ||
|
31231
|
31231
31231-53040 Hub, Clutch Release BearingCLUTCH RELEASE BEARING [09.2005 - 02.2008] GSE20..MTM |
31231-53040 |
US $74.26 |
||
|
31231A
|
31231A
90903-63001 Bearing, Ball(For Clutch Release Hub)[09.2005 - 02.2008] GSE20..MTM |
90903-63001 |
US $55.44 |
||
|
31231B
|
31231B
96152-00500 Ring, Snap(For Clutch Release Hub)[09.2005 - 02.2008] GSE20..MTM |
96152-00500 |
from US $2.39 |
||
|
31231C
|
31231C
90560-79001 Washer, Plate(For Clutch Release Bearing)[09.2005 - 02.2008] GSE20..MTM |
90560-79001 |
from US $2.17 |
||
|
31231D
|
31231D
90206-12006 Washer, Wave(For Clutch Release Bearing)[09.2005 - 02.2008] GSE20..MTM |
90206-12006 |
US $4.66 |
||
|
31231E
|
31231E
90520-75001 Ring, Shaft Snap(For Clutch Release Bearing)[09.2005 - 02.2008] GSE20..MTM |
90520-75001 |
from US $2.70 |
||
|
31234A
|
31234A
31234-14020 Spring, Release Fork Support[09.2005 - 08.2008] GSE20..MTM |
31234-14020 |
US $3.40 |
||
|
31236B
|
31236B
31236-14030 Support, Release Fork[09.2005 - 08.2008] GSE20..MTM |
31236-14030 |
US $33.60 |
||
|
31250
|
31250
31250-53040 Disc Assy, ClutchCLUTCH [09.2005 - 05.2008] GSE20..MTM |
31250-53040 |
US $214.03 |
||
| replacement | |||||
|
31250
|
31250
31250-53050 Disc Assy, ClutchCLUTCH [09.2005 - 05.2008] GSE20..MTM |
31250-53050 |
US $220.32 |
||
|
31250
|
31250
31250-53050 Disc Assy, ClutchCLUTCH [06.2008 - 08.2008] GSE20..MTM |
31250-53050 |
US $220.32 |
||
|
31264
|
31264
31264-14060 Spring, Clutch Thrust Cone[09.2005 - 02.2008] GSE20..MTM |
31264-14060 |
US $5.02 |
||
|
31264A
|
31264A
90560-50001 Washer, Plate(For Clutch Thrust Cone Spring)[09.2005 - 02.2008] GSE20..MTM |
90560-50001 |
US $6.63 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[09.2005 - 08.2008] GSE20..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[09.2005 - 08.2008] GSE20..MTM |
90363-12024 |
from US $5.53 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.63 |
||
|
9011910054
|
9011910054
90119-10054 BOLT |
90119-10054 |
US $2.33 |
||
