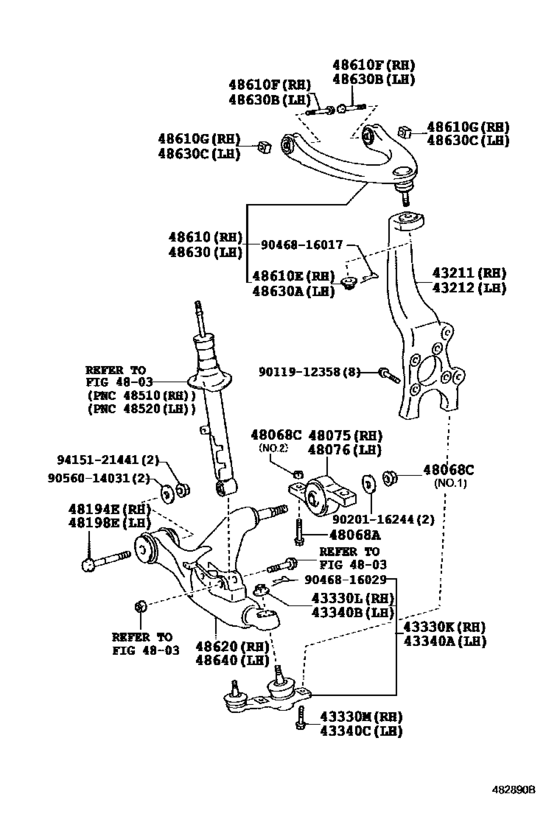

Front Axle Arm & Steering Knuckle ([08.2005 - ] (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2010
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43201-53010 Knuckle, Steering, Rh[08.2005 - 08.2008] ALE20,GSE20 |
43201-53010 |
from US $254.89 |
||
|
43212
|
43212
43202-53010 Knuckle, Steering, Lh[08.2005 - 08.2008] ALE20,GSE20 |
43202-53010 |
from US $252.30 |
||
|
43330K
|
43330K
43330-39625 Joint Assy, Lower Ball, Front Rh[08.2005 - 08.2008] ALE20,GSE20 |
43330-39625 |
from US $86.92 |
||
|
43330L
|
43330L
90171-14011 Nut, Castle (For Front Lower Ball Joint Setting)[08.2005 - 08.2008] ALE20,GSE20 |
90171-14011 |
from US $1.16 |
||
|
43330M
|
43330M
91552-L1455 Bolt (For Steering Knuckle Rh)[08.2005 - 08.2008] ALE20,GSE20 |
91552-L1455 |
from US $2.96 |
||
|
43340A
|
43340A
43340-39505 Joint Assy, Lower Ball, Front Lh[08.2005 - 08.2008] ALE20,GSE20 |
43340-39505 |
from US $86.92 |
||
|
43340B
|
43340B
90171-14011 Nut, Castle (For Front Lower Ball Joint Setting)[08.2005 - 08.2008] ALE20,GSE20 |
90171-14011 |
from US $1.16 |
||
|
43340C
|
43340C
91552-L1455 Bolt (For Steering Knuckle Rh)[08.2005 - 08.2008] ALE20,GSE20 |
91552-L1455 |
from US $2.96 |
||
|
48068A
|
48068A
91552-L1265 Bolt(For Front Suspension Lower Arm)[08.2005 - 08.2008] ALE20,GSE20 |
91552-L1265 |
US $4.30 |
||
|
48068C
|
48068C
94151-21240 Nut(For Front Suspension Lower Arm)[08.2005 - 08.2008] ALE20,GSE20 NO.2 |
94151-21240 |
US $1.79 |
||
|
48068C
|
48068C
94151-21601 Nut(For Front Suspension Lower Arm)[08.2005 - 08.2008] ALE20,GSE20 NO.1 |
94151-21601 |
from US $1.24 |
||
|
48075
|
48075
48075-30040 Bracket Sub-Assy, Lwr Arm, No,1[08.2005 - 08.2008] ALE20,GSE20 OFFSET:+20,REFER R/M |
48075-30040 |
from US $47.01 |
||
|
48075
|
48075
48075-30050 Bracket Sub-Assy, Lwr Arm, No,1[08.2005 - 08.2008] ALE20,GSE20 OFFSET:-20,REFER R/M |
48075-30050 |
from US $32.40 |
||
|
48075
|
48075
48075-53010
Bracket Sub-Assy, Lwr Arm, No,1
[08.2005 - 08.2008] ALE20,GSE20 OFFSET:0,REFER R/M |
48075-53010 |
— | ||
| replacement | |||||
|
48075
|
48075
48075-30030 Bracket Sub-Assy, Lwr Arm, No,1, RH[08.2005 - 08.2008] ALE20,GSE20 OFFSET:0,REFER R/M |
48075-30030 |
from US $37.07 |
||
|
48076
|
48076
48076-30040 Bracket Sub-Assy, Lwr Arm, No.2[08.2005 - 08.2008] ALE20,GSE20 OFFSET:+20,REFER R/M |
48076-30040 |
from US $47.73 |
||
|
48076
|
48076
48076-30050 Bracket Sub-Assy, Lwr Arm, No.2[08.2005 - 08.2008] ALE20,GSE20 OFFSET:-20,REFER R/M |
48076-30050 |
from US $32.40 |
||
|
48076
|
48076
48076-53010
Bracket Sub-Assy, Lwr Arm, No.2
[08.2005 - 08.2008] ALE20,GSE20 OFFSET:0,REFER R/M |
48076-53010 |
— | ||
| replacement | |||||
|
48076
|
48076
48076-30030 Bracket Sub-Assy, Lwr Arm, No.2, LH[08.2005 - 08.2008] ALE20,GSE20 OFFSET:0,REFER R/M |
48076-30030 |
from US $37.66 |
||
|
48194E
|
48194E
90105-14166 Cam, Front Suspension Camber Adjust, No.3 Rh[08.2005 - 08.2008] ALE20,GSE20 |
90105-14166 |
from US $3.80 |
||
|
48198E
|
48198E
90105-14166 Cam, Front Suspension Camber Adjust, No.3 Rh[08.2005 - 08.2008] ALE20,GSE20 |
90105-14166 |
from US $3.80 |
||
|
48610
|
48610
48610-59065 Arm Assy, Front Suspension Upper, Rh[08.2005 - 08.2008] ALE20,GSE20 |
48610-59065 |
from US $238.40 |
||
|
48610E
|
48610E
90171-12012 Nut, Castle(For Tie Rod End)[08.2005 - 08.2008] ALE20,GSE20 |
90171-12012 |
from US $1.46 |
||
|
48610F
|
48610F
91672-G1070 Bolt(For Suspension Upper Arm)[08.2005 - 08.2008] ALE20,GSE20 |
91672-G1070 |
US $3.40 |
||
|
48610G
|
48610G
90173-10012 Nut(For Suspension Upper Arm)[08.2005 - 08.2008] ALE20,GSE20 |
90173-10012 |
US $1.79 |
||
|
48620
|
48620
48620-30290 Arm Assy, Front Suspension, Lower Rh[08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
48620-30290 |
from US $247.25 |
||
|
48620
|
48620
48620-53020 Arm Assy, Front Suspension, Lower Rh[08.2005 - 08.2008] ALE20,GSE20 |
48620-53020 |
from US $233.60 |
||
|
48630
|
48630
48630-59065 Arm Assy, Front Suspension, Upper Lh[08.2005 - 08.2008] ALE20,GSE20 |
48630-59065 |
from US $238.40 |
||
|
48630A
|
48630A
90171-12012 Nut, Castle(For Tie Rod End)[08.2005 - 08.2008] ALE20,GSE20 |
90171-12012 |
from US $1.46 |
||
|
48630B
|
48630B
91672-G1070 Bolt(For Suspension Upper Arm)[08.2005 - 08.2008] ALE20,GSE20 |
91672-G1070 |
US $3.40 |
||
|
48630C
|
48630C
90173-10012 Nut(For Suspension Upper Arm)[08.2005 - 08.2008] ALE20,GSE20 |
90173-10012 |
US $1.79 |
||
|
48640
|
48640
48640-30290 Arm Assy, Front Suspension Lower, Lh[08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
48640-30290 |
from US $228.32 |
||
|
48640
|
48640
48640-53020 Arm Assy, Front Suspension Lower, Lh[08.2005 - 08.2008] ALE20,GSE20 |
48640-53020 |
from US $233.60 |
||
|
9011912358
|
9011912358
90119-12358 BOLT WWASHER |
90119-12358 |
from US $1.52 |
||
|
9020116244
|
9020116244
90201-16244 Washer, Plate (For Rear Drive Pinion) |
90201-16244 |
US $1.97 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.82 |
||
|
9046816029
|
9046816029
90468-16029 CLIP |
90468-16029 |
from US $0.64 |
||
|
9056014031
|
9056014031
90560-14031 New Genuine Part |
90560-14031 |
US $4.30 |
||
|
9415121441
|
9415121441
94151-21441 NUT FLANGE |
94151-21441 |
from US $1.12 |
||
