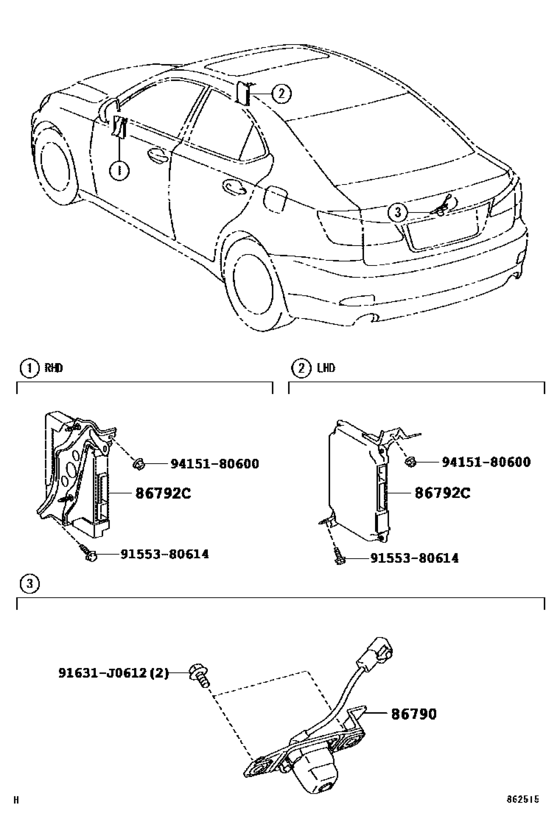

Rear Monitor Display & Camera ([08.2005 - 08.2009] (0508-0908)) Diagram Toyota LEXUS IS
- Year
- 2005 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2010
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86790
|
86790
86790-53010 Camera Assy, Television[08.2005 - 08.2007] GSE20..LHD EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
86790-53010 |
US $650.83 |
||
| replacement | |||||
|
86790
|
86790
86790-53011 Camera Assy, Television[08.2005 - 08.2007] GSE20..LHD EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
86790-53011 |
US $904.80 |
||
|
86792C
|
86792C
86792-53020
Computer, Parking Assist
[08.2005 - 08.2007] ALE20,GSE20..LHD EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
86792-53020 |
— | ||
|
86792C
|
86792C
86792-53050
Computer, Parking Assist
[08.2007 - 08.2008] GSE20..LHD..MTM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; ALE20..LHD EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION); GSE20..LHD..ATM BACK MONITOR-BACK GUIDE MONITOR,WITHOUT(VOICE GUIDE) |
86792-53050 |
— | ||
| replacement | |||||
|
86792C
|
86792C
86792-53051
Computer, Parking Assist
[08.2007 - 08.2008] GSE20..LHD..MTM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; ALE20..LHD EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION); GSE20..LHD..ATM BACK MONITOR-BACK GUIDE MONITOR,WITHOUT(VOICE GUIDE) |
86792-53051 |
— | ||
|
86792C
|
86792C
86792-53051
Computer, Parking Assist
[08.2008 - 08.2009] GSE20..LHD..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATI ON); GSE20..LHD..ATM AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(GPS NAVI GATION); GSE20..LHD..MTM EMV & N |
86792-53051 |
— | ||
|
86792C
|
86792C
86792-53080
Computer, Parking Assist
[08.2009 - 08.2010] GSE20..LHD..ATM TAIWAN SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH( DVD NAVIGATION); ALE20..LHD;GSE20..LHD..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); ALE2 |
86792-53080 |
— | ||
| replacement | |||||
|
86792C
|
86792C
86792-53101
Computer, Parking Assist
[08.2009 - 08.2010] GSE20..LHD..ATM TAIWAN SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH( DVD NAVIGATION); ALE20..LHD;GSE20..LHD..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); ALE2 |
86792-53101 |
— | ||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
