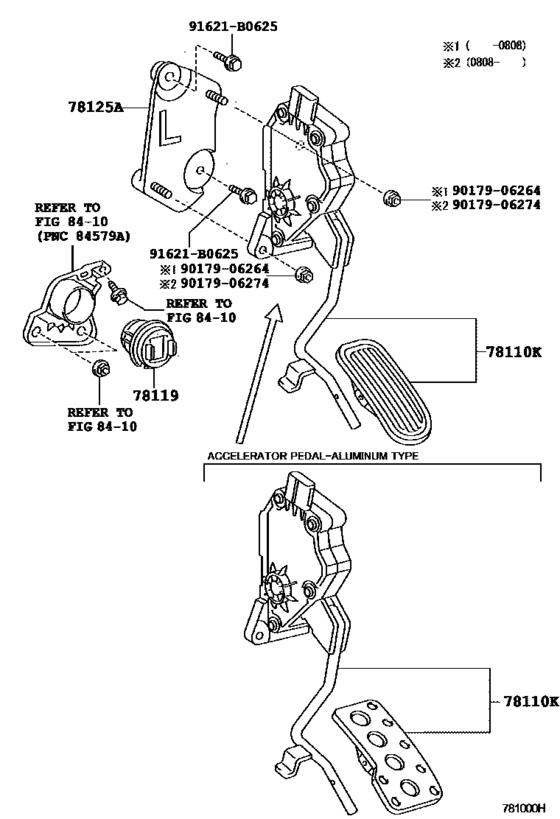

Accelerator Link ([08.2005 - ] (0508- )LHD) Diagram Toyota LEXUS IS
- Year
- 2005 - 2010
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2010
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110K
|
78110K
78110-53030
Sensor Assy, Accelerator Pedal
[08.2005 - 07.2007] ALE20,GSE20..LHD..LUX |
78110-53030 |
— | ||
| replacement | |||||
|
78110K
|
78110K
78110-53090
Sensor Assy, Accelerator Pedal
[08.2005 - 07.2007] ALE20,GSE20..LHD..LUX |
78110-53090 |
— | ||
|
78110K
|
78110K
78110-53031
Sensor Assy, Accelerator Pedal
[08.2007 - 08.2008] ALE20,GSE20..LHD |
78110-53031 |
— | ||
| replacement | |||||
|
78110K
|
78110K
78110-53090
Sensor Assy, Accelerator Pedal
[08.2007 - 08.2008] ALE20,GSE20..LHD |
78110-53090 |
— | ||
|
78110K
|
78110K
78110-53040
Sensor Assy, Accelerator Pedal
[08.2005 - 07.2006] GSE20..LHD SPORT PACKAGE |
78110-53040 |
— | ||
| replacement | |||||
|
78110K
|
78110K
78110-53110
Sensor Assy, Accelerator Pedal
[08.2005 - 07.2006] GSE20..LHD SPORT PACKAGE |
78110-53110 |
— | ||
|
78110K
|
78110K
78110-53041
Sensor Assy, Accelerator Pedal
[08.2007 - 08.2008] GSE20..LHD;ALE20..LHD..SPO ACCELERATOR PEDAL-ALUMINUM TYPE |
78110-53041 |
— | ||
| replacement | |||||
|
78110K
|
78110K
78110-53110
Sensor Assy, Accelerator Pedal
[08.2007 - 08.2008] GSE20..LHD;ALE20..LHD..SPO ACCELERATOR PEDAL-ALUMINUM TYPE |
78110-53110 |
— | ||
|
78119
|
78119
78119-48010 Stopper, Accelerator Pedal Rod[09.2005 - 08.2008] ALE20,GSE20..MTM |
78119-48010 |
US $7.86 |
||
|
78125A
|
78125A
78125-53010 Bracket, Accelerator Pedal Rod, No.2ACCELERATOR PEDAL ROD, NO.2 [08.2005 - 08.2008] ALE20,GSE20..LHD |
78125-53010 |
US $40.33 |
||
|
91621B0625
|
91621B0625
91621-B0625 New Genuine Part |
91621-B0625 |
US $1.08 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.82 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
