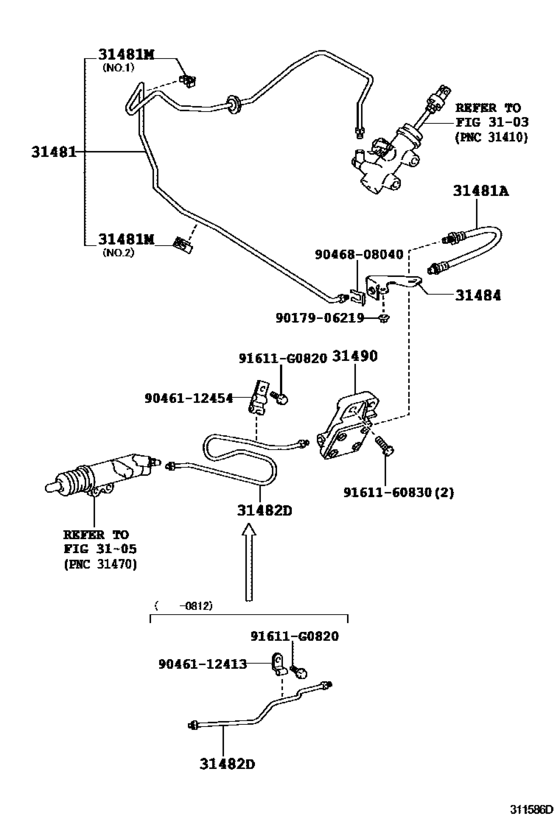

Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )GSE20..LHD..MTM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2010
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2010
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481
|
31481
31481-53080
Tube, Clutch Master Cylinder To Flexible Hose
[09.2005 - 08.2008] GSE20..LHD..MTM |
31481-53080 |
— | ||
|
31481A
|
31481A
90947-02E47
Hose, Clutch, No.1
[09.2005 - 08.2008] ALE20,GSE20..MTM |
90947-02E47 |
— | ||
|
31481M
|
31481M
90949-01B45 Clamp(For Clutch Master Cylinder Tube)[09.2005 - 08.2008] ALE20,GSE20..MTM NO.2 |
90949-01B45 |
US $3.94 |
||
|
31481M
|
31481M
90949-01D12 Clamp(For Clutch Master Cylinder Tube)[09.2005 - 08.2008] ALE20,GSE20..MTM NO.1 |
90949-01D12 |
US $1.97 |
||
|
31482D
|
31482D
31482-53040
Tube, Clutch Release Cylinder To Accumulator
[09.2005 - 08.2008] GSE20..MTM |
31482-53040 |
— | ||
| replacement | |||||
|
31482D
|
31482D
31482-53060
Tube, Clutch Release Cylinder To Accumulator
[09.2005 - 08.2008] GSE20..MTM |
31482-53060 |
— | ||
|
31482D
|
31482D
31482-53060
Tube, Clutch Release Cylinder To Accumulator
[01.2009 - 08.2010] GSE20..MTM |
31482-53060 |
— | ||
|
31484
|
31484
31484-53050
Bracket, Flexible Hose(For Clutch)
[09.2005 - 08.2008] GSE20..MTM |
31484-53050 |
— | ||
|
31490
|
31490
31490-53010
Accumulator Assy, Clutch
[09.2005 - 08.2008] ALE20,GSE20..MTM |
31490-53010 |
— | ||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
from US $1.01 |
||
|
9046112413
|
9046112413
90461-12413
New Genuine Part
|
90461-12413 |
— | ||
|
9046112454
|
9046112454
90461-12454
New Genuine Part
|
90461-12454 |
— | ||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.37 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.41 |
||
