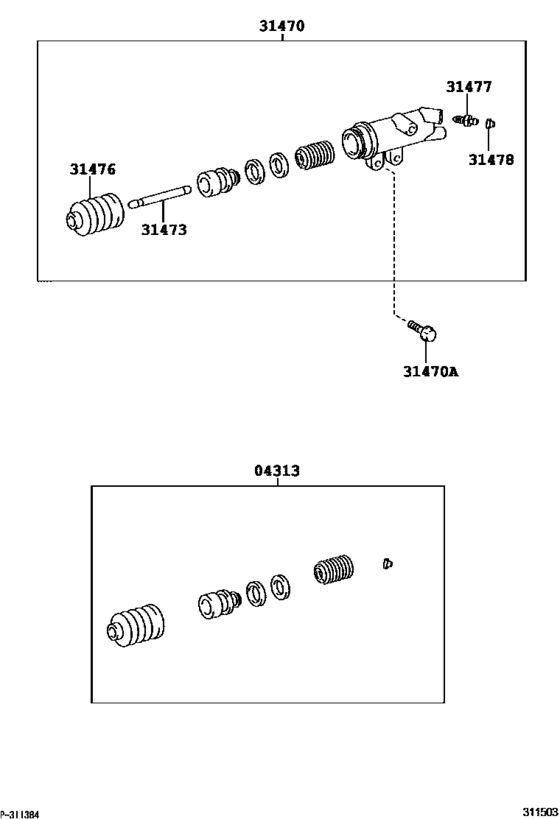

Clutch Release Cylinder ([09.2005 - ] (0509- )GSE20..MTM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2010
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2010
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04313
|
04313
04313-53040
Cylinder Kit, Clutch Release
[09.2005 - 08.2008] GSE20..MTM |
04313-53040 |
— | ||
| replacement | |||||
|
04313
|
04313
04313-53041 Cylinder Kit, Clutch Release[09.2005 - 08.2008] GSE20..MTM |
04313-53041 |
from US $17.04 |
||
|
31470
|
31470
31470-60340 Cylinder Assy, Clutch ReleaseCLUTCH RELEASE [09.2005 - 08.2008] GSE20..MTM |
31470-60340 |
from US $70.13 |
||
|
31470A
|
31470A
91611-B0825 Bolt(For Clutch Release Cylinder Setting)[09.2005 - 08.2008] GSE20..MTM *8-1.25PX25-25 |
91611-B0825 |
from US $1.08 |
||
|
31473
|
31473
31473-14030 Rod, Clutch Release Cylinder Push, No.1[09.2005 - 08.2008] GSE20..MTM |
31473-14030 |
US $4.54 |
||
|
31476
|
31476
31476-22010 Boot, Clutch Release Cylinder[09.2005 - 08.2008] ALE20,GSE20..MTM |
31476-22010 |
from US $3.99 |
||
|
31477
|
31477
47547-12010 Plug, Bleeder(For Release Cylinder)[09.2005 - 08.2008] ALE20,GSE20..MTM |
47547-12010 |
from US $2.26 |
||
|
31478
|
31478
31478-30010 Bleeder Plug Cap[09.2005 - 08.2008] ALE20,GSE20..MTM |
31478-30010 |
from US $1.48 |
||
