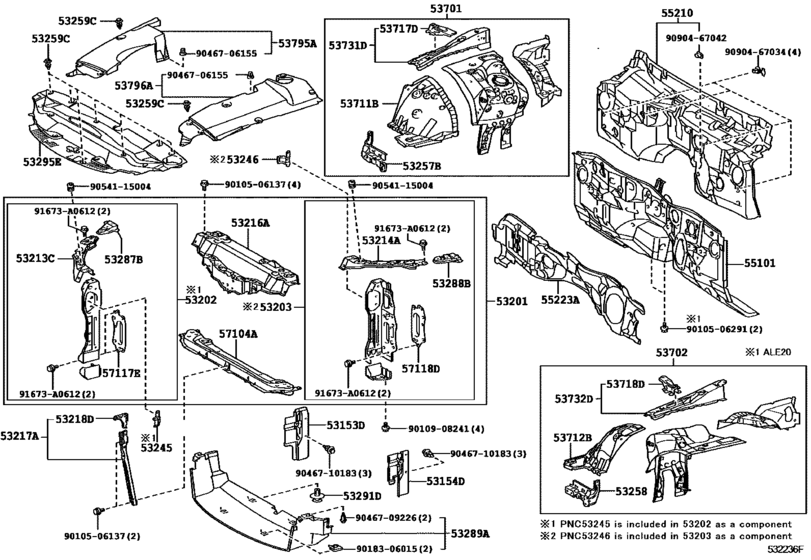

Front Fender Apron & Dash Panel ([08.2005 - ] (0508- )LHD) Diagram Toyota LEXUS IS
- Year
- 2005 - 2010
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2010
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53153D
|
53153D
53153-53010 Guide, Radiator Grille Side Air, Rh[08.2005 - 08.2008] ALE20,GSE20 |
53153-53010 |
US $16.45 |
||
|
53154D
|
53154D
53154-53010 Guide, Radiator Grille Side Air, Lh[08.2005 - 08.2008] ALE20,GSE20 |
53154-53010 |
US $16.45 |
||
|
53201
|
53201
53201-53112 Support Sub-Assy, Radiator[08.2005 - 08.2008] ALE20,GSE20 |
53201-53112 |
US $572.21 |
||
| replacement | |||||
|
53201
|
53201
53201-53113 Support Sub-Assy, Radiator[08.2005 - 08.2008] ALE20,GSE20 |
53201-53113 |
US $353.30 |
||
|
53201
|
53201
53201-53113 Support Sub-Assy, Radiator[08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
53201-53113 |
US $353.30 |
||
|
53202
|
53202
53202-53904
Support Sub-Assy, Radiator, Rh
[08.2005 - 08.2008] ALE20,GSE20 |
53202-53904 |
— | ||
| replacements | |||||
|
53202
|
53202
53202-53053 Support Sub-Assy, Radiator, Rh[08.2005 - 08.2008] ALE20,GSE20 |
53202-53053 |
from US $127.55 |
||
|
53202
|
53202
53245-53010 Bracket, Headlamp, Rh[08.2005 - 08.2008] ALE20,GSE20 |
53245-53010 |
US $15.29 |
||
|
53202
|
53202
53202-53906
Support Sub-Assy, Radiator, Rh
[08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
53202-53906 |
— | ||
| replacements | |||||
|
53202
|
53202
53202-53053 Support Sub-Assy, Radiator, Rh[08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
53202-53053 |
from US $127.55 |
||
|
53202
|
53202
53245-53010 Bracket, Headlamp, Rh[08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
53245-53010 |
US $15.29 |
||
|
53203
|
53203
53203-53904
Support Sub-Assy, Radiator, Lh
[08.2005 - 08.2008] ALE20,GSE20 |
53203-53904 |
— | ||
| replacements | |||||
|
53203
|
53203
53203-53053 Support Sub-Assy, Radiator, Lh[08.2005 - 08.2008] ALE20,GSE20 |
53203-53053 |
US $162.49 |
||
|
53203
|
53203
53246-53010 Bracket, Headlamp, Lh[08.2005 - 08.2008] ALE20,GSE20 |
53246-53010 |
US $19.42 |
||
|
53203
|
53203
53203-53906
Support Sub-Assy, Radiator, Lh
[08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
53203-53906 |
— | ||
| replacements | |||||
|
53203
|
53203
53203-53053 Support Sub-Assy, Radiator, Lh[08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
53203-53053 |
US $162.49 |
||
|
53203
|
53203
53246-53010 Bracket, Headlamp, Lh[08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
53246-53010 |
US $19.42 |
||
|
53213C
|
53213C
53213-53020 Support, Radiator, Upper Front[08.2005 - 08.2008] ALE20,GSE20 |
53213-53020 |
US $20.68 |
||
|
53214A
|
53214A
53214-53020 Support, Radiator, Upper Lh[08.2005 - 08.2008] ALE20,GSE20 |
53214-53020 |
US $32.54 |
||
|
53216A
|
53216A
53205-53030 Support, Radiator, Upper[08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
53205-53030 |
US $100.46 |
||
|
53216A
|
53216A
53216-53030 Support, Radiator, Upper[08.2005 - 08.2008] ALE20,GSE20 |
53216-53030 |
US $161.62 |
||
| replacement | |||||
|
53216A
|
53216A
53205-53030 Support, Radiator, Upper[08.2005 - 08.2008] ALE20,GSE20 |
53205-53030 |
US $100.46 |
||
|
53217A
|
53217A
53217-53901 Brace, Hood Lock Support[08.2005 - 08.2008] ALE20,GSE20 |
53217-53901 |
US $39.14 |
||
|
53218D
|
53218D
53218-53010 Extension, Hood Lock Brace[08.2005 - 08.2008] ALE20,GSE20 |
53218-53010 |
US $8.59 |
||
|
53245
|
53245
53245-53010 Bracket, Headlamp, Rh[08.2005 - 08.2008] ALE20,GSE20 |
53245-53010 |
US $15.29 |
||
|
53246
|
53246
53246-53010 Bracket, Headlamp, Lh[08.2005 - 08.2008] ALE20,GSE20 |
53246-53010 |
US $19.42 |
||
|
53257B
|
53257B
53257-53020 Bracket, Radiator Support To Front Fender[08.2005 - 01.2007] ALE20,GSE20 |
53257-53020 |
US $21.11 |
||
|
53258
|
53258
53258-53020 Bracket, Front End Panel Mounting, Lh[08.2005 - 01.2007] ALE20,GSE20 |
53258-53020 |
US $14.27 |
||
|
53259C
|
53259C
53259-48010 Clip, Radiator Support To Frame Seal[08.2005 - 07.2006] GSE20 |
53259-48010 |
from US $1.39 |
||
|
53259C
|
53259C
90467-07211 Clip(For Reserve Tank Outlet Hose No.2)[08.2006 - 08.2008] GSE20 |
90467-07211 |
from US $0.82 |
||
|
53287B
|
53287B
53287-53010 Extension, Radiator Support, Rh[08.2005 - 08.2008] ALE20,GSE20 |
53287-53010 |
US $10.05 |
||
|
53288B
|
53288B
53288-53010 Extension, Radiator Support, Lh[08.2005 - 08.2008] ALE20,GSE20 |
53288-53010 |
US $12.49 |
||
|
53289A
|
53289A
53289-53011
Cover, Radiator Support Opening
[08.2005 - 08.2008] ALE20,GSE20 |
53289-53011 |
— | ||
| replacement | |||||
|
53289A
|
53289A
53289-53012 Cover, Radiator Support Opening[08.2005 - 08.2008] ALE20,GSE20 |
53289-53012 |
US $126.06 |
||
|
53289A
|
53289A
53289-53050 Cover, Radiator Support Opening[08.2008 - 07.2009] ALE20,GSE20 |
53289-53050 |
US $94.64 |
||
| replacement | |||||
|
53289A
|
53289A
53289-53051 Cover, Radiator Support OpeningRADIATOR SUPPORT OPENING [08.2008 - 07.2009] ALE20,GSE20 |
53289-53051 |
US $94.64 |
||
|
53289A
|
53289A
53289-53051 Cover, Radiator Support OpeningRADIATOR SUPPORT OPENING [08.2009 - 08.2010] ALE20,GSE20 |
53289-53051 |
US $94.64 |
||
|
53291D
|
53291D
90467-07201 Clamp(For Cool Air Intake)[08.2005 - 08.2008] ALE20,GSE20 |
90467-07201 |
from US $0.93 |
||
|
53295E
|
53295E
53295-53010 Seal, Cool Air Intake Duct[08.2005 - 08.2008] GSE20 |
53295-53010 |
from US $135.41 |
||
|
53701
|
53701
53701-53050 Apron Sub-Assy, Front Fender, Rh[08.2005 - 01.2007] ALE20,GSE20 |
53701-53050 |
US $773.14 |
||
| replacement | |||||
|
53701
|
53701
53701-53051 Apron Sub-Assy, Front Fender, Rh[08.2005 - 01.2007] ALE20,GSE20 |
53701-53051 |
from US $643.55 |
||
|
53701
|
53701
53701-53051 Apron Sub-Assy, Front Fender, Rh[02.2007 - 08.2008] ALE20,GSE20 |
53701-53051 |
from US $643.55 |
||
|
53702
|
53702
53702-53060 Apron Sub-Assy, Front Fender, Lh[08.2005 - 01.2007] ALE20,GSE20 |
53702-53060 |
US $773.14 |
||
| replacement | |||||
|
53702
|
53702
53702-53061 Apron Sub-Assy, Front Fender, Lh[08.2005 - 01.2007] ALE20,GSE20 |
53702-53061 |
from US $643.55 |
||
|
53702
|
53702
53702-53061 Apron Sub-Assy, Front Fender, Lh[02.2007 - 08.2008] ALE20,GSE20 |
53702-53061 |
from US $643.55 |
||
|
53711B
|
53711B
53711-53030 Apron, Front Fender, Front Rh[08.2005 - 01.2007] ALE20,GSE20 |
53711-53030 |
US $87.83 |
||
|
53712B
|
53712B
53712-53030 Apron, Front Fender, Front Lh[08.2005 - 01.2007] ALE20,GSE20 |
53712-53030 |
US $88.58 |
||
|
53717D
|
53717D
53717-53010 Gusset, Fender Apron, Rh[08.2005 - 08.2008] ALE20,GSE20 |
53717-53010 |
US $7.57 |
||
|
53718D
|
53718D
53717-53010 Gusset, Fender Apron, Rh[08.2005 - 08.2008] ALE20,GSE20 |
53717-53010 |
US $7.57 |
||
|
53731D
|
53731D
53705-53020 Member, Front Apron To Cowl Side, Upper Rh[08.2005 - 01.2007] ALE20,GSE20 |
53705-53020 |
US $56.35 |
||
|
53732D
|
53732D
53706-53020 Member, Front Apron To Cowl Side, Upper Lh[08.2005 - 01.2007] ALE20,GSE20 |
53706-53020 |
US $56.35 |
||
|
53795A
|
53795A
53795-53030 Cover, Engine Room, SideENGINE ROOM, SIDE [08.2005 - 08.2008] GSE20..LHD |
53795-53030 |
US $118.31 |
||
|
53796A
|
53796A
53796-53030
Cover, Engine Room Side, Lh
[08.2005 - 08.2008] GSE20..LHD |
53796-53030 |
— | ||
| replacement | |||||
|
53796A
|
53796A
53796-53031 Cover, Engine Room Side, LhENGINE ROOM SIDE, LH [08.2005 - 08.2008] GSE20..LHD |
53796-53031 |
from US $87.36 |
||
|
53796A
|
53796A
53796-53031 Cover, Engine Room Side, LhENGINE ROOM SIDE, LH [08.2009 - 08.2010] GSE20..LHD |
53796-53031 |
from US $87.36 |
||
|
55101
|
55101
55101-53171
Panel Sub-Assy, Dash
[09.2005 - 08.2008] GSE20..LHD..MTM |
55101-53171 |
— | ||
|
55210
|
55210
55210-53050
Insulator Assy, Dash Panel
[08.2005 - 08.2008] GSE20..LHD |
55210-53050 |
— | ||
|
55223A
|
55223A
55223-53050
Insulator, Dash Panel, Outer
[08.2005 - 09.2007] GSE20..LHD |
55223-53050 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-53082
Insulator, Dash Panel, Outer
[08.2005 - 09.2007] GSE20..LHD |
55223-53082 |
— | ||
|
55223A
|
55223A
55223-53080
Insulator, Dash Panel, Outer
[10.2007 - 08.2008] GSE20..LHD |
55223-53080 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-53082
Insulator, Dash Panel, Outer
[10.2007 - 08.2008] GSE20..LHD |
55223-53082 |
— | ||
|
57104A
|
57104A
57104-53020 Member Sub-Assy, Front Cross[08.2005 - 08.2008] ALE20,GSE20 |
57104-53020 |
US $136.28 |
||
|
57117E
|
57117E
57117-30050 Retainer, Front Bumper Arm, Rh[08.2005 - 08.2008] ALE20,GSE20 |
57117-30050 |
US $25.33 |
||
|
57118D
|
57118D
57118-30050 Retainer, Front Bumper Arm, Lh[08.2005 - 08.2008] ALE20,GSE20 |
57118-30050 |
US $26.56 |
||
|
91673A0612
|
91673A0612
91673-A0612 Bolt |
91673-A0612 |
US $1.08 |
||
|
9010506137
|
9010506137
90105-06137 BOLT, WASHER BASED H |
90105-06137 |
from US $0.82 |
||
|
9010506291
|
9010506291
90105-06291 New Genuine Part |
90105-06291 |
US $1.61 |
||
|
9010908241
|
9010908241
90109-08241 BOLT |
90109-08241 |
US $1.61 |
||
|
9018306015
|
9018306015
90183-06015 NUTSPRING |
90183-06015 |
US $2.15 |
||
|
9046706155
|
9046706155
90467-06155 Clip |
90467-06155 |
from US $0.72 |
||
|
9046709226
|
9046709226
90467-09226 CLIP |
90467-09226 |
US $2.33 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.82 |
||
|
9054115004
|
9054115004
90541-15004 Cushion, Hood Bumper |
90541-15004 |
from US $2.76 |
||
|
9090467034
|
9090467034
90904-67034 Clip |
90904-67034 |
US $2.48 |
||
|
9090467042
|
9090467042
90904-67042 New Genuine Part |
90904-67042 |
US $2.91 |
||
