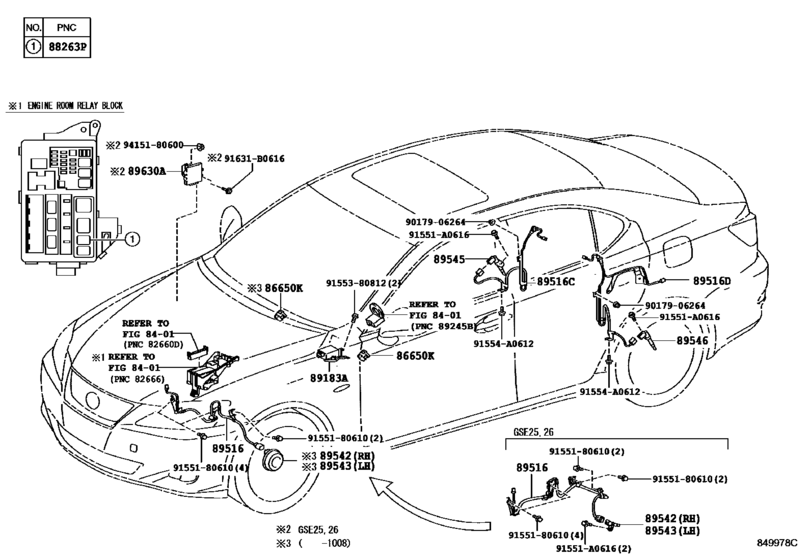

Abs & Vsc ([08.2008 - ] (0808- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86650K
|
86650K
86652-48010 Buzzer Assy, Skid Control[08.2005 - 08.2007] GSE2# |
86652-48010 |
US $35.67 |
||
|
86650K
|
86650K
86652-50010 Buzzer Assy[08.2007 - 08.2008] GSE2# |
86652-50010 |
from US $31.45 |
||
|
88263P
|
88263P
90987-04004 Relay, Starter Cut[08.2005 - 08.2008] GSE2#..ATM |
90987-04004 |
from US $47.21 |
||
|
89183A
|
89183A
89180-22020 Sensor Assy, Yawrate[08.2005 - 08.2008] GSE2# |
89180-22020 |
US $1,340.98 |
||
|
89183A
|
89183A
89180-53010 Sensor, Yawrate[08.2008 - 07.2009] GSE2# |
89180-53010 |
US $1,340.98 |
||
| replacement | |||||
|
89183A
|
89183A
89180-53030 Sensor, YawrateYAWRATE [08.2008 - 07.2009] GSE2# |
89180-53030 |
US $1,116.75 |
||
|
89183A
|
89183A
89180-53030 Sensor, YawrateYAWRATE [08.2009 - 08.2010] GSE2# |
89180-53030 |
US $1,116.75 |
||
|
89516
|
89516
89516-30020
Wire, Skid Control Sensor
[08.2005 - 08.2008] GSE20,21 RH |
89516-30020 |
— | ||
| replacement | |||||
|
89516
|
89516
89516-30150 Wire, Skid Control Sensor[08.2005 - 08.2008] GSE20,21 RH |
89516-30150 |
from US $50.18 |
||
|
89516
|
89516
89516-30030 Wire, Skid Control Sensor[08.2005 - 08.2008] GSE20,21 LH |
89516-30030 |
from US $54.17 |
||
|
89516
|
89516
89516-30150 Wire, Skid Control Sensor[04.2012 - 02.2013] GSE20,21 RH |
89516-30150 |
from US $50.18 |
||
|
89516
|
89516
89516-53060 Wire, Skid Control Sensor[03.2013 - 04.2013] GSE20,21 RH |
89516-53060 |
US $39.75 |
||
|
89516C
|
89516C
89516-22020 Wire, Skid Control Sensor[08.2005 - 08.2008] GSE2# |
89516-22020 |
US $47.71 |
||
|
89516D
|
89516D
89516-22010 Wire, Skid Control Sensor, Lh[08.2005 - 08.2008] GSE2# |
89516-22010 |
US $44.55 |
||
|
89516D
|
89516D
89516-22040 Wire, Skid Control Sensor[08.2005 - 08.2008] GSE2# HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE20..ATM HEADLAMP-DISCHARGE WITH/AUTO LEVELING KOREA |
89516-22040 |
US $123 |
||
|
89542
|
89542
89542-30260 Sensor, Speed, Front Rh[08.2005 - 08.2008] GSE20,21 |
89542-30260 |
from US $173.55 |
||
|
89543
|
89543
89543-30260 Sensor, Speed, Front Lh[08.2005 - 08.2008] GSE20,21 |
89543-30260 |
from US $174.33 |
||
|
89545
|
89545
89545-30070 Sensor, Speed, Rear Rh[08.2005 - 08.2008] GSE2# |
89545-30070 |
from US $172.56 |
||
|
89546
|
89546
89546-30070 Sensor, Speed, Rear Lh[08.2005 - 08.2008] GSE2# |
89546-30070 |
from US $168.11 |
||
|
91551A0616
|
91551A0616
91551-A0616 New Genuine Part |
91551-A0616 |
US $1.08 |
||
|
91554A0612
|
91554A0612
91554-A0612 New Genuine Part |
91554-A0612 |
US $1.08 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.65 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.82 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $1.08 |
||
|
9155380812
|
9155380812
91553-80812 New Genuine Part |
91553-80812 |
US $1.43 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
