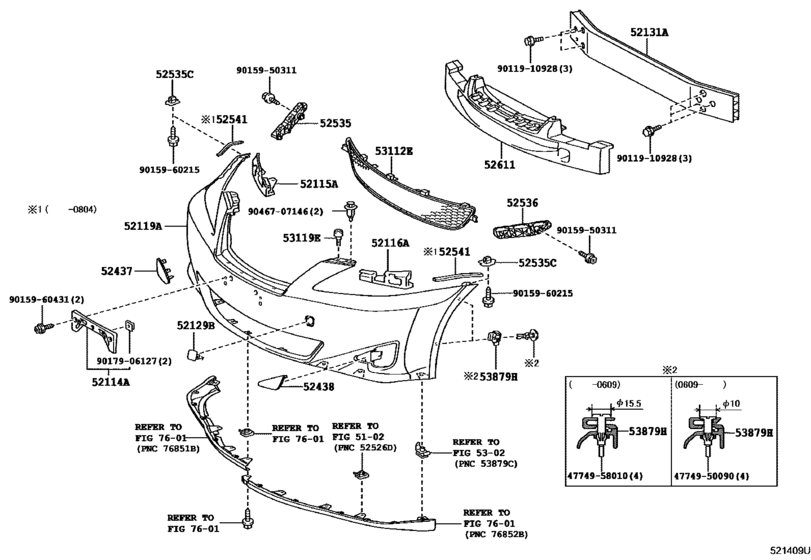

Front Bumper & Bumper Stay ([08.2005 - 08.2008] (0508-0808)) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52114A
|
52114A
52114-53080 Bracket, Front Bumper Extention MountingFRONT BUMPER EXTENTION MOUNTING [08.2005 - 08.2008] GSE2# |
52114-53080 |
US $34.36 |
||
| replacements | |||||
|
52114A
|
52114A
52114-53901 BRACKET FR BUMPER[08.2005 - 08.2008] GSE2# |
52114-53901 |
US $23.98 |
||
|
52114A
|
52114A
90159-60431 SCREW[08.2005 - 08.2008] GSE2# |
90159-60431 |
from US $0.72 |
||
|
52114A
|
52114A
90179-06127 Bracket, Front Licence Plate Mounting[08.2005 - 08.2008] GSE2# |
90179-06127 |
from US $0.68 |
||
|
52114A
|
52114A
52114-53120
Bracket, Front Bumper Extention Mounting
[08.2008 - 07.2009] GSE20..ATM KOREA SPEC |
52114-53120 |
— | ||
| replacements | |||||
|
52114A
|
52114A
52114-53900 BRACKET FR BUMPER[08.2008 - 07.2009] GSE20..ATM KOREA SPEC |
52114-53900 |
US $32.03 |
||
|
52114A
|
52114A
90179-06349 NUT[08.2008 - 07.2009] GSE20..ATM KOREA SPEC |
90179-06349 |
from US $1.27 |
||
|
52114A
|
52114A
52114-53121 Bracket, Front Bumper Extention MountingFRONT BUMPER EXTENTION MOUNTING [08.2009 - 10.2009] GSE20..ATM KOREA SPEC |
52114-53121 |
US $32.32 |
||
| replacements | |||||
|
52114A
|
52114A
52114-53900 BRACKET FR BUMPER[08.2009 - 10.2009] GSE20..ATM KOREA SPEC |
52114-53900 |
US $32.03 |
||
|
52114A
|
52114A
90179-06349 NUT[08.2009 - 10.2009] GSE20..ATM KOREA SPEC |
90179-06349 |
from US $1.27 |
||
|
52114A
|
52114A
52114-53140 Bracket, Front Bumper Extention Mounting[08.2008 - 07.2009] GSE2# |
52114-53140 |
US $32.32 |
||
| replacements | |||||
|
52114A
|
52114A
52114-53900 BRACKET FR BUMPER[08.2008 - 07.2009] GSE2# |
52114-53900 |
US $32.03 |
||
|
52114A
|
52114A
90159-60431 SCREW[08.2008 - 07.2009] GSE2# |
90159-60431 |
from US $0.72 |
||
|
52114A
|
52114A
90179-06127 Bracket, Front Licence Plate Mounting[08.2008 - 07.2009] GSE2# |
90179-06127 |
from US $0.68 |
||
|
52114A
|
52114A
52114-53141
Bracket, Front Bumper Extention Mounting
[08.2009 - 10.2009] GSE2# |
52114-53141 |
— | ||
| replacements | |||||
|
52114A
|
52114A
90159-60431 SCREW[08.2009 - 10.2009] GSE2# |
90159-60431 |
from US $0.72 |
||
|
52114A
|
52114A
52114-53900 BRACKET FR BUMPER[08.2009 - 10.2009] GSE2# |
52114-53900 |
US $32.03 |
||
|
52114A
|
52114A
90179-06127 Bracket, Front Licence Plate Mounting[08.2009 - 10.2009] GSE2# |
90179-06127 |
from US $0.68 |
||
|
52114A
|
52114A
52114-53200 Bracket, Front Bumper Extention Mounting[08.2010 -] GSE2# |
52114-53200 |
US $26.94 |
||
|
52114A
|
52114A
52114-53210 Bracket, Front Bumper Extention Mounting[08.2010 -] GSE20..ATM KOREA SPEC |
52114-53210 |
from US $34.60 |
||
|
52115A
|
52115A
52115-53020 Support, Front Bumper Side, Rh[08.2005 - 08.2008] GSE2# |
52115-53020 |
from US $99.29 |
||
|
52115A
|
52115A
52115-53050 Support, Front Bumper Side, Rh[08.2008 - 08.2010] GSE2# |
52115-53050 |
from US $72.60 |
||
|
52115A
|
52115A
52115-53070 Support, Front Bumper Side, Rh[08.2010 -] GSE2# |
52115-53070 |
from US $75.60 |
||
|
52116A
|
52116A
52116-53020 Support, Front Bumper Side, Lh[08.2005 - 08.2008] GSE2# |
52116-53020 |
from US $104.61 |
||
|
52116A
|
52116A
52116-53050 Support, Front Bumper Side, Lh[08.2008 - 08.2010] GSE2# |
52116-53050 |
US $96.76 |
||
|
52116A
|
52116A
52116-53070 Support, Front Bumper Side, Lh[08.2010 -] GSE2# |
52116-53070 |
from US $74.20 |
||
|
52119A
|
52119A
52119-53917
Cover, Front Bumper
[08.2005 - 08.2008] GSE2# CLEARANCE & BACK SONAR-WITH |
52119-53917 |
— | ||
|
52119A
|
52119A
52119-53918
Cover, Front Bumper
[08.2005 - 07.2006] GSE2# HEAD LAMP CLEANER-WITH |
52119-53918 |
— | ||
|
52119A
|
52119A
52119-53919 Cover, Front BumperFRONT BUMPER [08.2005 - 07.2006] GSE2# HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
52119-53919 |
from US $611.12 |
||
|
52119A
|
52119A
52119-53925 Cover, Front BumperFRONT BUMPER [08.2005 - 08.2008] GSE2# |
52119-53925 |
from US $527.97 |
||
|
52119A
|
52119A
52119-53945 Cover, Front BumperFRONT BUMPER [08.2008 - 08.2010] GSE2# |
52119-53945 |
US $714.90 |
||
|
52119A
|
52119A
52119-53946
Cover, Front Bumper
[08.2008 - 08.2010] GSE2# CLEARANCE & BACK SONAR-WITH |
52119-53946 |
— | ||
|
52119A
|
52119A
52119-53950 Cover, Front BumperFRONT BUMPER [08.2008 - 08.2010] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC&CLEARANCE & BACK SONAR -WITH |
52119-53950 |
US $353.93 |
||
|
52119A
|
52119A
52119-53951
Cover, Front Bumper
[08.2008 - 08.2010] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC |
52119-53951 |
— | ||
|
52119A
|
52119A
52119-53979 Cover, Front Bumper[08.2010 - 04.2013] GSE20,25 |
52119-53979 |
from US $535.76 |
||
|
52119A
|
52119A
52119-53980
Cover, Front Bumper
[08.2010 - 04.2013] GSE20,25 CLEARANCE & BACK SONAR-WITH |
52119-53980 |
— | ||
|
52119A
|
52119A
52119-53986
Cover, Front Bumper
[08.2010 - 04.2013] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
52119-53986 |
— | ||
|
52119A
|
52119A
52119-53987 Cover, Front Bumper[08.2010 - 04.2013] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)&CLEARANCE & BACK SONAR-WITH |
52119-53987 |
US $431.98 |
||
|
52119A
|
52119A
52119-53990
Cover, Front Bumper
[08.2010 - 04.2013] GSE20..ATM CANADA SPEC&F PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..ATM FB PACKAGE |
52119-53990 |
— | ||
|
52119A
|
52119A
52119-53991
Cover, Front Bumper
[08.2010 - 04.2013] GSE20..ATM CANADA SPEC&F PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)&CLEARANCE & BACK SONAR-WITH; GSE20..ATM FB PACKAGE&CLEARANCE & BACK SONAR-WITH |
52119-53991 |
— | ||
|
52119A
|
52119A
52119-53998
Cover, Front Bumper
[08.2010 - 04.2013] GSE20..ATM KOREA SPEC&FB PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..ATM KOREA SPEC&F PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
52119-53998 |
— | ||
|
52119A
|
52119A
52119-53999
Cover, Front Bumper
[08.2010 - 04.2013] GSE20..ATM KOREA SPEC&FB PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)&CLEARANCE & BACK SONAR-WITH; GSE20..ATM KOREA SPEC&F PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)&CLEARANCE & BACK SONAR-WITH |
52119-53999 |
— | ||
|
52129B
|
52129B
52129-53902 Cover, Front Bumper, LowerFRONT BUMPER, LOWER [08.2005 - 08.2008] GSE2# |
52129-53902 |
from US $5.24 |
||
|
52129B
|
52129B
52129-53904 Cover, Front Bumper, LowerFRONT BUMPER, LOWER [08.2008 - 08.2010] GSE2# |
52129-53904 |
from US $5.74 |
||
|
52129B
|
52129B
52129-53909 Cover, Front Bumper, Lower[08.2010 - 04.2013] GSE2# |
52129-53909 |
US $4.96 |
||
|
52131A
|
52131A
52131-53050 Reinforcement, Front BumperFRONT BUMPER [08.2008 - 08.2010] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC; GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC&CLEARANCE & BACK SONAR -WITH |
52131-53050 |
US $320.32 |
||
|
52131A
|
52131A
52131-53060 Reinforcement, Front BumperFRONT BUMPER [08.2005 - 08.2008] GSE2# |
52131-53060 |
US $426.61 |
||
|
52437
|
52437
52437-53010 Cover, Front Bumper Guard, Rh[08.2005 - 08.2008] GSE2# |
52437-53010 |
from US $9.22 |
||
|
52437
|
52437
52437-53020 Cover, Front Bumper Guard, Rh[08.2008 - 08.2010] GSE2# |
52437-53020 |
from US $9.22 |
||
|
52438
|
52438
52438-53010 Cover, Front Bumper Guard, Lh[08.2005 - 08.2008] GSE2# |
52438-53010 |
from US $8.84 |
||
|
52438
|
52438
52438-53020 Cover, Front Bumper Guard, Lh[08.2008 - 08.2010] GSE2# |
52438-53020 |
from US $7.87 |
||
|
52535
|
52535
52535-53010
Retainer, Front Bumper Side, Rh
[08.2005 - 02.2008] GSE2# |
52535-53010 |
— | ||
| replacement | |||||
|
52535
|
52535
52535-53011 Retainer, Front Bumper Side, Rh[08.2005 - 02.2008] GSE2# |
52535-53011 |
from US $32.83 |
||
|
52535
|
52535
52535-53011 Retainer, Front Bumper Side, Rh[03.2008 - 08.2008] GSE2# |
52535-53011 |
from US $32.83 |
||
|
52535C
|
52535C
52535-50060 Retainer, Front Bumper Side[08.2005 - 08.2008] GSE2# |
52535-50060 |
from US $3.55 |
||
|
52536
|
52536
52536-53010
Retainer, Front Bumper Side, Lh
[08.2005 - 02.2008] GSE2# |
52536-53010 |
— | ||
| replacement | |||||
|
52536
|
52536
52536-53011 Retainer, Front Bumper Side, Lh[08.2005 - 02.2008] GSE2# |
52536-53011 |
from US $33.57 |
||
|
52536
|
52536
52536-53011 Retainer, Front Bumper Side, Lh[03.2008 - 08.2008] GSE2# |
52536-53011 |
from US $33.57 |
||
|
52541
|
52541
52541-53010 Protector, Front Bumper[08.2005 - 04.2008] GSE2# |
52541-53010 |
from US $5.83 |
||
|
52611
|
52611
52611-53060 Absorber, Front Bumper EnergyFRONT BUMPER ENERGY [08.2005 - 08.2008] GSE2# |
52611-53060 |
US $145.60 |
||
|
52611
|
52611
52611-53100 Absorber, Front Bumper EnergyFRONT BUMPER ENERGY [08.2008 - 08.2010] GSE2# |
52611-53100 |
from US $76.65 |
||
|
52611
|
52611
52611-53140 Absorber, Front Bumper Energy[08.2010 - 04.2013] GSE2# |
52611-53140 |
from US $54.30 |
||
|
53112E
|
53112E
53112-53010 Grille, Radiator, Lower No.1[08.2005 - 08.2008] GSE2# |
53112-53010 |
US $68.64 |
||
|
53112E
|
53112E
53113-53010 Grille, Radiator, Lower No.1[08.2008 - 08.2010] GSE2# |
53113-53010 |
US $71.20 |
||
|
53112E
|
53112E
53113-53020 Grille, Radiator, Lower No.1[08.2010 - 04.2013] GSE2# |
53113-53020 |
from US $72.07 |
||
|
53112E
|
53112E
53113-53030 Grille, Radiator, Lower No.1[08.2010 - 04.2013] GSE21 CANADA SPEC&F PACKAGE; GSE20..ATM CANADA SPEC&F PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..ATM CANADA SPEC&F PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)&CLEARANCE & BACK SONAR-WITH; GSE21 CANADA SPEC&F PA |
53113-53030 |
from US $71.19 |
||
|
53119E
|
53119E
53119-53020 Protector, Radiator Grille[08.2005 - 06.2006] GSE2# |
53119-53020 |
US $9.61 |
||
| replacement | |||||
|
53119E
|
53119E
53119-53021 Protector, Radiator Grille[08.2005 - 06.2006] GSE2# |
53119-53021 |
from US $7.71 |
||
|
53119E
|
53119E
53119-53021 Protector, Radiator Grille[06.2006 - 08.2008] GSE2# |
53119-53021 |
from US $7.71 |
||
|
53879H
|
53879H
53879-50020 Retainer, Front Fender Liner[09.2006 - 08.2008] GSE2# |
53879-50020 |
from US $4.58 |
||
|
53879H
|
53879H
53879-58010 Retainer, Front Fender Liner[08.2005 - 09.2006] GSE2# |
53879-58010 |
from US $3.15 |
||
|
4774950090
|
4774950090
47749-50090 Clip, Pin Hold |
47749-50090 |
from US $0.51 |
||
|
4774958010
|
4774958010
47749-58010 Clip, Pin Hold |
47749-58010 |
from US $0.84 |
||
|
9011910928
|
9011910928
90119-10928 BOLT WWASHER |
90119-10928 |
US $2.15 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.10 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.72 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
|
9046707146
|
9046707146
90467-07146 Clip |
90467-07146 |
from US $1.46 |
||
