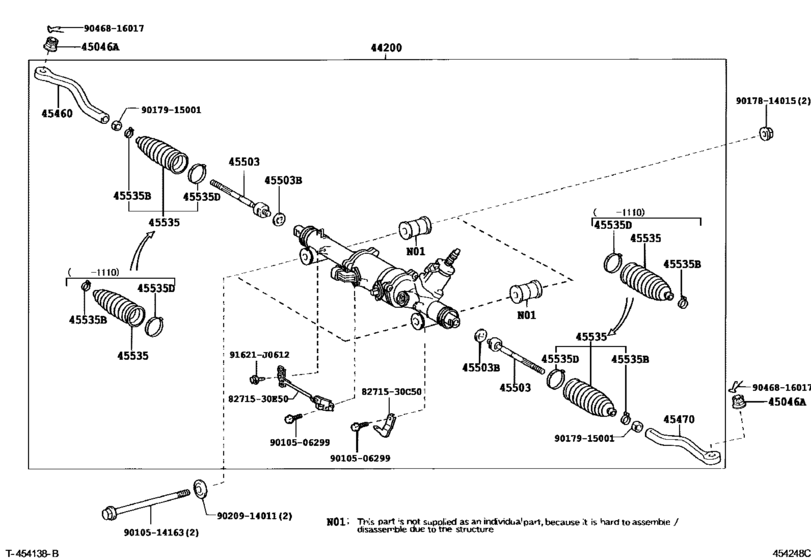

Front Steering Gear & Link ([08.2005 - ] (0508- )GSE20,21) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-53080
Link Assy, Power Steering
[08.2005 - 07.2006] GSE20,21 |
44200-53080 |
— | ||
| replacement | |||||
|
44200
|
44200
44200-53131 Link Assy, Power Steering[08.2005 - 07.2006] GSE20,21 |
44200-53131 |
US $2,067.52 |
||
|
44200
|
44200
44200-53130 Link Assy, Power SteeringPOWER STEERING [08.2006 - 08.2008] GSE20,21 |
44200-53130 |
US $2,067.52 |
||
| replacement | |||||
|
44200
|
44200
44200-53131 Link Assy, Power Steering[08.2006 - 08.2008] GSE20,21 |
44200-53131 |
US $2,067.52 |
||
|
44200
|
44200
44200-53131 Link Assy, Power Steering[06.2012 - 04.2013] GSE20,21 |
44200-53131 |
US $2,067.52 |
||
|
44200
|
44200
44200-53290 Link Assy, Power Steering[10.2011 - 06.2012] GSE20,21 |
44200-53290 |
US $2,067.52 |
||
| replacement | |||||
|
44200
|
44200
44200-53131 Link Assy, Power Steering[10.2011 - 06.2012] GSE20,21 |
44200-53131 |
US $2,067.52 |
||
|
45046A
|
45046A
90171-12002 Nut, Castle(For Tie Rod End)[08.2005 - 08.2008] GSE20,21 |
90171-12002 |
from US $1.10 |
||
|
45460
|
45460
45463-30130 Rod Assy, Tie, Rh[08.2005 - 08.2008] GSE20,21 |
45463-30130 |
from US $22.27 |
||
|
45470
|
45470
45464-30060 Rod Assy, Tie, Lh[08.2005 - 08.2008] GSE20,21 |
45464-30060 |
from US $21.98 |
||
|
45503
|
45503
45503-30070 End Sub-Assy, Steering Rack[08.2005 - 08.2008] GSE20,21 |
45503-30070 |
from US $91.69 |
||
|
45503B
|
45503B
90214-14011 Washer, Claw(For Steering Rack End)[08.2005 - 08.2008] GSE2# OD=40 |
90214-14011 |
US $3.23 |
||
|
45535
|
45535
45535-30030
Boot, Steering Rack, No.1
[08.2005 - 08.2008] GSE2# |
45535-30030 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-59065 Boot, Steering Rack, No.1[08.2005 - 08.2008] GSE2# |
45535-59065 |
from US $17.64 |
||
|
45535
|
45535
45535-59045
Boot, Steering Rack, No.1
[10.2011 -] GSE2# |
45535-59045 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-59065 Boot, Steering Rack, No.1[10.2011 -] GSE2# |
45535-59065 |
from US $17.64 |
||
|
45535B
|
45535B
90467-19019 Clip[08.2005 - 08.2008] GSE2# |
90467-19019 |
from US $4.09 |
||
|
45535D
|
45535D
90460-55016 Clamp(For Power Steering Rack Boot)[08.2005 - 08.2008] GSE2# |
90460-55016 |
from US $4.30 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
8271530C50
|
8271530C50
82715-30C50 Bracket,wiring Harness Clamp |
82715-30C50 |
US $2.33 |
||
|
8271530E50
|
8271530E50
82715-30E50 Bracket,wiring Harness Clamp |
82715-30E50 |
US $8.59 |
||
|
9010506299
|
9010506299
90105-06299 New Genuine Part |
90105-06299 |
US $0.44 |
||
|
9010514163
|
9010514163
90105-14163 Bolt, Differential Support Member Mounting, No.1 |
90105-14163 |
US $7.71 |
||
|
9017814015
|
9017814015
90178-14015 New Genuine Part |
90178-14015 |
US $3.40 |
||
|
9017915001
|
9017915001
90179-15001 Nut (For Rear Axle Carrier) |
90179-15001 |
from US $2.81 |
||
|
9020914011
|
9020914011
90209-14011 New Genuine Part |
90209-14011 |
US $4.30 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.82 |
||
