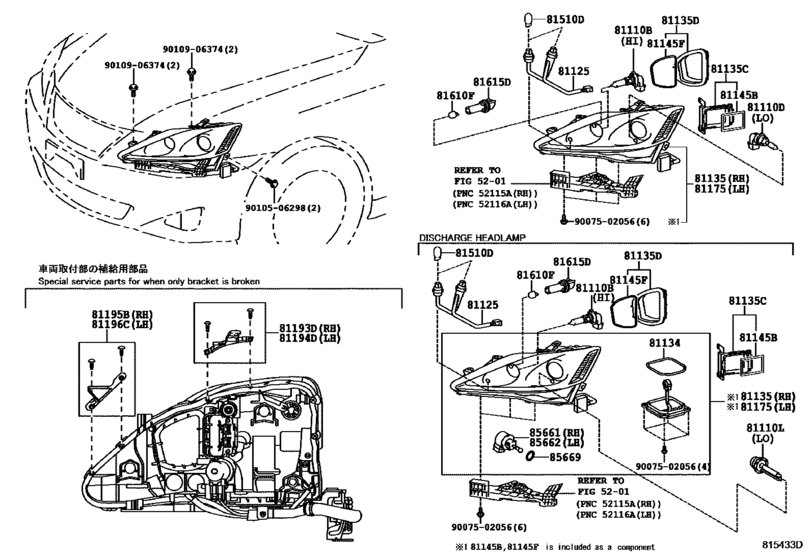

Headlamp ([08.2008 - 08.2010] (0808-1008)) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[08.2005 - 08.2008] GSE2# 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $15.88 |
||
|
81110D
|
81110D
90981-13075 Bulb(For Headlamp, No.1)[08.2005 - 08.2008] GSE2# 12V 55W,HALOGEN |
90981-13075 |
from US $16 |
||
|
81110L
|
81110L
90981-20013 Bulb, Discharge Headlamp[08.2005 - 12.2005] GSE20..ATM 45V 35W,TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM 45V 35W,TAIWAN SPEC&SPORT PACKAGE; GSE20..ATM 45V 35W,KOREA SPEC&LUXURY PACKAGE; GSE20..ATM 45V 35W,KOREA SPEC&SPORT PACKAGE; GSE2# 45V 35W,LUXURY PACKAGE; GSE20,21 45V 35W,SPOR |
90981-20013 |
US $189.28 |
||
| replacement | |||||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[08.2005 - 12.2005] GSE20..ATM 45V 35W,TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM 45V 35W,TAIWAN SPEC&SPORT PACKAGE; GSE20..ATM 45V 35W,KOREA SPEC&LUXURY PACKAGE; GSE20..ATM 45V 35W,KOREA SPEC&SPORT PACKAGE; GSE2# 45V 35W,LUXURY PACKAGE; GSE20,21 45V 35W,SPOR |
90981-20024 |
from US $164.74 |
||
|
81110L
|
81110L
90981-20021 Bulb, Discharge Headlamp[01.2006 - 07.2006] GSE20..ATM 45V 35W,TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM 45V 35W,TAIWAN SPEC&SPORT PACKAGE; GSE20..ATM 45V 35W,KOREA SPEC&LUXURY PACKAGE; GSE20..ATM 45V 35W,KOREA SPEC&SPORT PACKAGE; GSE2# 45V 35W,LUXURY PACKAGE; GSE20,21 45V 35W,SPOR |
90981-20021 |
US $189.28 |
||
| replacement | |||||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[01.2006 - 07.2006] GSE20..ATM 45V 35W,TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM 45V 35W,TAIWAN SPEC&SPORT PACKAGE; GSE20..ATM 45V 35W,KOREA SPEC&LUXURY PACKAGE; GSE20..ATM 45V 35W,KOREA SPEC&SPORT PACKAGE; GSE2# 45V 35W,LUXURY PACKAGE; GSE20,21 45V 35W,SPOR |
90981-20024 |
from US $164.74 |
||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[02.2009 - 08.2010] GSE2# 42V 35W,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..ATM 42V 35W,HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC |
90981-20024 |
from US $164.74 |
||
|
81125
|
81125
81125-53540 Cord, Headlamp[08.2010 -] GSE21,26; GSE20,25..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81125-53540 |
US $19.68 |
||
|
81125
|
81125
81125-53570 Cord, Headlamp[08.2010 -] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81125-53570 |
US $46.66 |
||
|
81125
|
81125
81126-53220 Cord, Headlamp[08.2005 - 07.2006] GSE20..ATM KOREA SPEC&LUXURY PACKAGE; GSE20..ATM KOREA SPEC&SPORT PACKAGE |
81126-53220 |
US $36.40 |
||
|
81125
|
81125
81126-53240
Cord, Headlamp
[08.2005 - 07.2006] GSE20..ATM TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM TAIWAN SPEC&SPORT PACKAGE; GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
81126-53240 |
— | ||
|
81134
|
81134
90075-68007 Gasket, Headlamp[08.2005 - 07.2006] GSE20..ATM TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM TAIWAN SPEC&SPORT PACKAGE; GSE20..ATM KOREA SPEC&LUXURY PACKAGE; GSE20..ATM KOREA SPEC&SPORT PACKAGE; GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
90075-68007 |
from US $7.13 |
||
|
81135
|
81135
81130-53270 Unit Assy, Headlamp, RhHEADLAMP, RH [08.2005 - 08.2008] GSE2# |
81130-53270 |
US $780.42 |
||
|
81135
|
81135
81130-53310
Unit Assy, Headlamp, Rh
[08.2005 - 08.2008] GSE20..ATM KOREA SPEC |
81130-53310 |
— | ||
|
81135
|
81135
81130-53400 Unit Assy, Headlamp, RhHEADLAMP, RH [08.2008 - 08.2010] GSE2# |
81130-53400 |
US $512.51 |
||
|
81135
|
81135
81130-53550
Unit Assy, Headlamp, Rh
[08.2010 - 04.2013] GSE20,25 |
81130-53550 |
— | ||
|
81135
|
81135
81140-53240 Unit Assy, Headlamp, RhHEADLAMP, RH [08.2005 - 07.2006] GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
81140-53240 |
from US $2,052.96 |
||
|
81135
|
81135
81140-53290
Unit Assy, Headlamp, Rh
[08.2005 - 07.2006] GSE20..ATM TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM TAIWAN SPEC&SPORT PACKAGE |
81140-53290 |
— | ||
|
81135
|
81135
81140-53300 Unit Assy, Headlamp, RhHEADLAMP, RH [08.2005 - 07.2006] GSE20..ATM KOREA SPEC&LUXURY PACKAGE; GSE20..ATM KOREA SPEC&SPORT PACKAGE |
81140-53300 |
from US $1,645.28 |
||
|
81135
|
81135
81140-53390
Unit Assy, Headlamp, Rh
[08.2008 - 08.2010] GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81140-53390 |
— | ||
|
81135
|
81135
81140-53410 Unit Assy, Headlamp, RhHEADLAMP, RH [08.2008 - 08.2010] GSE20..ATM HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC |
81140-53410 |
US $2,929.25 |
||
|
81135
|
81135
81145-53540 Unit Assy, Headlamp, Rh[08.2010 - 08.2011] GSE21,26; GSE20,25..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81145-53540 |
from US $884.77 |
||
|
81135
|
81135
81145-53541
Unit Assy, Headlamp, Rh
[08.2011 - 09.2011] GSE21,26; GSE20,25..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81145-53541 |
— | ||
|
81135
|
81135
81145-53542
Unit Assy, Headlamp, Rh
[09.2011 - 09.2011] GSE21,26; GSE20,25..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81145-53542 |
— | ||
|
81135
|
81135
81145-53543 Unit Assy, Headlamp, Rh[09.2011 - 04.2013] GSE21,26; GSE20,25..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81145-53543 |
US $2,827.39 |
||
|
81135
|
81135
81145-53570
Unit Assy, Headlamp, Rh
[08.2010 - 08.2011] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81145-53570 |
— | ||
|
81135
|
81135
81145-53571
Unit Assy, Headlamp, Rh
[08.2011 - 09.2011] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81145-53571 |
— | ||
|
81135
|
81135
81145-53572
Unit Assy, Headlamp, Rh
[09.2011 - 09.2011] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81145-53572 |
— | ||
|
81135
|
81135
81145-53573
Unit Assy, Headlamp, Rh
[09.2011 - 04.2013] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81145-53573 |
— | ||
|
81135C
|
81135C
81135-53240 Cover, Headlamp Back, No.1[08.2005 - 07.2006] GSE20..ATM TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM TAIWAN SPEC&SPORT PACKAGE; GSE20..ATM KOREA SPEC&LUXURY PACKAGE; GSE20..ATM KOREA SPEC&SPORT PACKAGE; GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
81135-53240 |
from US $21.76 |
||
|
81135C
|
81135C
81135-53270 Cover, Headlamp Back, No.1[08.2005 - 08.2008] GSE2# |
81135-53270 |
from US $15.84 |
||
|
81135D
|
81135D
81136-53240 Cover, Headlamp Back, No.2[08.2005 - 08.2008] GSE2# RH |
81136-53240 |
US $13.62 |
||
|
81135D
|
81135D
81176-53240 Cover, Headlamp Back, No.2[08.2005 - 08.2008] GSE2# LH |
81176-53240 |
from US $9.90 |
||
|
81145B
|
81145B
81132-53240 Gasket, Headlamp Cover, No.1[08.2005 - 08.2008] GSE2# |
81132-53240 |
US $20.83 |
||
|
81145F
|
81145F
81134-53240 Gasket, Headlamp Cover, No.2[08.2005 - 08.2008] GSE2# |
81134-53240 |
US $10.22 |
||
|
81175
|
81175
81070-53240 Unit Assy, Headlamp, LhHEADLAMP, LH [08.2005 - 07.2006] GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
81070-53240 |
US $2,052.96 |
||
|
81175
|
81175
81070-53290
Unit Assy, Headlamp, Lh
[08.2005 - 07.2006] GSE20..ATM TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM TAIWAN SPEC&SPORT PACKAGE |
81070-53290 |
— | ||
|
81175
|
81175
81070-53300 Unit Assy, Headlamp, LhHEADLAMP, LH [08.2005 - 07.2006] GSE20..ATM KOREA SPEC&LUXURY PACKAGE; GSE20..ATM KOREA SPEC&SPORT PACKAGE |
81070-53300 |
US $1,645.28 |
||
|
81175
|
81175
81070-53390 Unit Assy, Headlamp, LhHEADLAMP, LH [08.2008 - 08.2010] GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81070-53390 |
from US $1,326.42 |
||
|
81175
|
81175
81070-53410
Unit Assy, Headlamp, Lh
[08.2008 - 08.2010] GSE20..ATM HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC |
81070-53410 |
— | ||
|
81175
|
81175
81170-53270 Unit Assy, Headlamp, LhHEADLAMP, LH [08.2005 - 08.2008] GSE2# |
81170-53270 |
US $780.42 |
||
|
81175
|
81175
81170-53310
Unit Assy, Headlamp, Lh
[08.2005 - 08.2008] GSE20..ATM KOREA SPEC |
81170-53310 |
— | ||
|
81175
|
81175
81170-53400 Unit Assy, Headlamp, LhHEADLAMP, LH [08.2008 - 08.2010] GSE2# |
81170-53400 |
US $512.51 |
||
|
81175
|
81175
81170-53550
Unit Assy, Headlamp, Lh
[08.2010 - 04.2013] GSE20,25 |
81170-53550 |
— | ||
|
81175
|
81175
81185-53540
Unit Assy, Headlamp, Lh
[08.2010 - 08.2011] GSE21,26; GSE20,25..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81185-53540 |
— | ||
|
81175
|
81175
81185-53541
Unit Assy, Headlamp, Lh
[08.2011 - 09.2011] GSE21,26; GSE20,25..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81185-53541 |
— | ||
|
81175
|
81175
81185-53542
Unit Assy, Headlamp, Lh
[09.2011 - 09.2011] GSE21,26; GSE20,25..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81185-53542 |
— | ||
|
81175
|
81175
81185-53543 Unit Assy, Headlamp, Lh[09.2011 - 04.2013] GSE21,26; GSE20,25..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81185-53543 |
US $2,827.39 |
||
|
81175
|
81175
81185-53570
Unit Assy, Headlamp, Lh
[08.2010 - 08.2011] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81185-53570 |
— | ||
|
81175
|
81175
81185-53571
Unit Assy, Headlamp, Lh
[08.2011 - 09.2011] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81185-53571 |
— | ||
|
81175
|
81175
81185-53572
Unit Assy, Headlamp, Lh
[09.2011 - 09.2011] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81185-53572 |
— | ||
|
81175
|
81175
81185-53573
Unit Assy, Headlamp, Lh
[09.2011 - 04.2013] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
81185-53573 |
— | ||
|
81193D
|
81193D
81193-53020 Retainer, Rh Headlamp Protector, Upper Lh[08.2005 - 08.2008] GSE2# |
81193-53020 |
from US $16.26 |
||
|
81194D
|
81194D
81194-53010 Retainer, Lh Headlamp Protector, Upper Lh[08.2005 - 08.2008] GSE2# |
81194-53010 |
from US $24.62 |
||
|
81195B
|
81195B
81195-53010 Retainer, Rh Headlamp Protector, Lower Rh[08.2005 - 08.2008] GSE2# |
81195-53010 |
from US $7.78 |
||
|
81196C
|
81196C
81196-53020 Retainer, Lh Headlamp Protector, Lower Lh[08.2005 - 08.2008] GSE2# |
81196-53020 |
from US $7.78 |
||
|
81510D
|
81510D
90981-15021 Bulb (For Front Turn Signal Lamp)[08.2005 - 07.2006] GSE20..ATM 12V 21W,AMBER,KOREA SPEC&LUXURY PACKAGE; GSE20..ATM 12V 21W,AMBER,KOREA SPEC&SPORT PACKAGE |
90981-15021 |
from US $3.14 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[08.2005 - 08.2008] GSE2# 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[08.2005 - 08.2008] GSE2# 12V 5W |
90080-81053 |
US $0.99 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[08.2005 - 08.2008] GSE2# |
90075-60077 |
from US $6 |
||
|
85661
|
85661
85661-48030 Motor, Headlamp Leveling, Rh[08.2005 - 07.2006] GSE20..ATM TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM TAIWAN SPEC&SPORT PACKAGE; GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
85661-48030 |
US $155.79 |
||
|
85662
|
85662
85661-48030 Motor, Headlamp Leveling, Rh[08.2005 - 07.2006] GSE20..ATM TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM TAIWAN SPEC&SPORT PACKAGE; GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
85661-48030 |
US $155.79 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[08.2005 - 07.2006] GSE20..ATM TAIWAN SPEC&LUXURY PACKAGE; GSE20..ATM TAIWAN SPEC&SPORT PACKAGE; GSE20..ATM KOREA SPEC&LUXURY PACKAGE; GSE20..ATM KOREA SPEC&SPORT PACKAGE; GSE2# LUXURY PACKAGE; GSE20,21 SPORT PACKAGE |
90075-99120 |
from US $2.32 |
||
|
9007502056
|
9007502056
90075-02056 Screw, Headlamp |
90075-02056 |
from US $0.59 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.59 |
||
|
9010906374
|
9010906374
90109-06374 BOLT |
90109-06374 |
US $1.08 |
||
