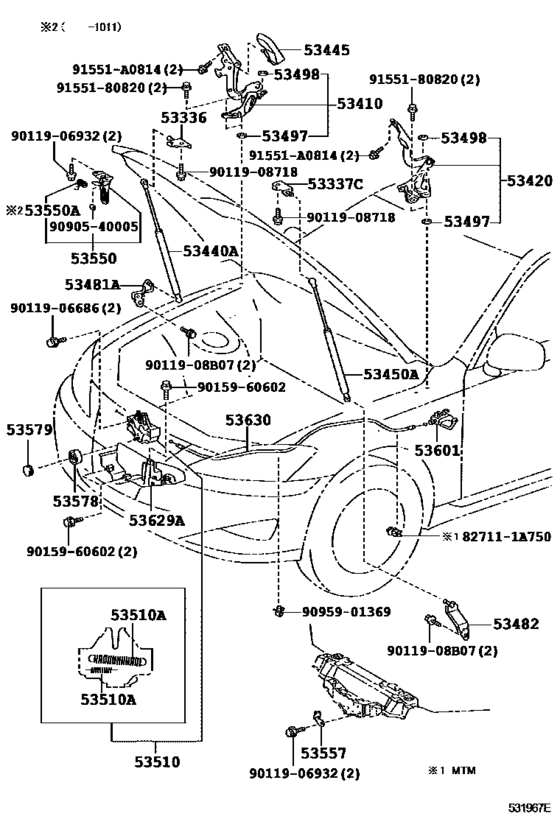

Hood Lock & Hinge ([08.2005 - ] (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53336
|
53336
53336-53020 Bracket, Hood Stay, Rh[08.2005 - 08.2008] GSE2# |
53336-53020 |
US $4.37 |
||
|
53337C
|
53337C
53337-53010 Bracket, Hood Stay, Lh[08.2005 - 08.2008] GSE2# |
53337-53010 |
US $4.37 |
||
|
53410
|
53410
53410-53020 Hinge Assy, Hood, Rh[08.2005 - 08.2008] GSE2# |
53410-53020 |
from US $32.60 |
||
|
53420
|
53420
53420-53020 Hinge Assy, Hood, Lh[08.2005 - 08.2008] GSE2# |
53420-53020 |
from US $36.55 |
||
|
53440A
|
53440A
53440-0W100 Support Assy, Hood, Rh[08.2005 - 03.2006] GSE2# |
53440-0W100 |
US $155.79 |
||
| replacement | |||||
|
53440A
|
53440A
53440-0W102 Support Assy, Hood, Rh[08.2005 - 03.2006] GSE2# |
53440-0W102 |
from US $134.14 |
||
|
53440A
|
53440A
53440-0W101 Support Assy, Hood, Rh[04.2006 - 08.2008] GSE2# |
53440-0W101 |
US $128.13 |
||
| replacement | |||||
|
53440A
|
53440A
53440-0W102 Support Assy, Hood, Rh[04.2006 - 08.2008] GSE2# |
53440-0W102 |
from US $134.14 |
||
|
53440A
|
53440A
53440-0W102 Support Assy, Hood, Rh[04.2012 -] GSE2# |
53440-0W102 |
from US $134.14 |
||
|
53445
|
53445
53445-53010 Cover, Hood Hinge, Rh[08.2005 - 08.2008] GSE2# |
53445-53010 |
from US $6.12 |
||
|
53450A
|
53450A
53450-0W080 Support Assy, Hood, Lh[08.2005 - 03.2006] GSE2# |
53450-0W080 |
US $155.79 |
||
| replacement | |||||
|
53450A
|
53450A
53450-0W082 Support Assy, Hood, Lh[08.2005 - 03.2006] GSE2# |
53450-0W082 |
from US $129.24 |
||
|
53450A
|
53450A
53450-0W081 Support Assy, Hood, Lh[04.2006 - 08.2008] GSE2# |
53450-0W081 |
US $128.13 |
||
| replacement | |||||
|
53450A
|
53450A
53450-0W082 Support Assy, Hood, Lh[04.2006 - 08.2008] GSE2# |
53450-0W082 |
from US $129.24 |
||
|
53450A
|
53450A
53450-0W082 Support Assy, Hood, Lh[04.2012 -] GSE2# |
53450-0W082 |
from US $129.24 |
||
|
53481A
|
53481A
53481-53010 Bracket, Hood Support, Rh[08.2005 - 08.2008] GSE2# |
53481-53010 |
US $8.30 |
||
|
53482
|
53482
53482-53010 Bracket, Hood Support, Lh[08.2005 - 08.2008] GSE2# |
53482-53010 |
US $8.30 |
||
|
53497
|
53497
53497-50020 Pad, Hood Hinge, No.1[08.2005 - 08.2008] GSE2# T=1.0 |
53497-50020 |
from US $2.19 |
||
|
53498
|
53498
53497-53010 Pad, Hood Hinge, No.2[08.2005 - 08.2008] GSE2# T=1.0 |
53497-53010 |
US $1.31 |
||
|
53510
|
53510
53510-53060
Lock Assy, Hood
[08.2005 - 08.2008] GSE2# |
53510-53060 |
— | ||
| replacement | |||||
|
53510
|
53510
53510-53061 Lock Assy, HoodHOOD [08.2005 - 08.2008] GSE2# |
53510-53061 |
US $67.89 |
||
|
53510
|
53510
53510-53061 Lock Assy, HoodHOOD [09.2009 - 08.2010] GSE2# |
53510-53061 |
US $67.89 |
||
|
53510A
|
53510A
90506-09050 Spring, Tension(For Hood Lock)[08.2005 - 08.2008] GSE2# WD=0.9,CW=20.5 |
90506-09050 |
from US $1.38 |
||
|
53510A
|
53510A
90506-14086 Spring, Tension(For Hood Lock)[12.2005 - 08.2008] GSE2# WD=1.4,CW=15 |
90506-14086 |
US $3.58 |
||
|
53510A
|
53510A
90506-16071 Spring, Tension(For Hood Lock)[08.2005 - 11.2005] GSE2# WD=1.8,CW=18 |
90506-16071 |
US $3.06 |
||
|
53550
|
53550
53550-53010 Hook Assy, Hood Auxiliary Catch[08.2005 - 08.2008] GSE2# |
53550-53010 |
from US $42.64 |
||
|
53550A
|
53550A
90508-18096 Spring, Torsion(For Hood Lock Hook)[08.2005 - 08.2008] GSE2# |
90508-18096 |
US $2.91 |
||
|
53557
|
53557
53557-53011 Catch, Hood Auxiliary Hook[08.2005 - 08.2008] GSE2# |
53557-53011 |
US $3.72 |
||
|
53578
|
53578
53578-50010 Nut, Hood Lock[08.2005 - 08.2008] GSE2# |
53578-50010 |
from US $1.12 |
||
|
53579
|
53579
53579-50010 Cap, Hood Lock Nut[08.2005 - 08.2008] GSE2# |
53579-50010 |
from US $1.12 |
||
|
53601
|
53601
53601-52010-A1 Lever Sub-Assy, Hood Lock Control[08.2005 - 08.2008] GSE2# IVORY,TRIM0# |
53601-52010-A1 |
US $25.04 |
||
|
53601
|
53601
53601-52010-A6 Lever Sub-Assy, Hood Lock Control[08.2008 - 08.2010] GSE2# ECRU,TRIM0# |
53601-52010-A6 |
US $18.93 |
||
|
53601
|
53601
53601-52010-B5 Lever Sub-Assy, Hood Lock Control[08.2008 - 08.2010] GSE2# LT.GRAY,TRIM1# |
53601-52010-B5 |
US $25.04 |
||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[08.2005 - 08.2008] GSE2# BLACK,TRIM2# |
53601-52010-C0 |
— | ||
| replacement | |||||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[08.2005 - 08.2008] GSE2# BLACK,TRIM2# |
53601-52010-C1 |
from US $23.69 |
||
|
53601
|
53601
53601-52010-P0 Lever Sub-Assy, Hood Lock Control[08.2005 - 08.2008] GSE2# FROSTY GRAY,TRIM1# |
53601-52010-P0 |
US $30.14 |
||
|
53629A
|
53629A
53629-53040 Cover, Hood Lock Control CableHOOD LOCK CONTROL CABLE [08.2005 - 08.2008] GSE2# |
53629-53040 |
US $26.32 |
||
|
53630
|
53630
53630-53030 Cable Assy, Hood Lock ControlHOOD LOCK CONTROL [08.2005 - 08.2008] GSE2# |
53630-53030 |
US $27.21 |
||
|
91551A0814
|
91551A0814
91551-A0814 BOLT FLANGE |
91551-A0814 |
US $1.43 |
||
|
827111A750
|
827111A750
82711-1A750 Clamp, No.1(For Back Door Lock Control Cable) |
82711-1A750 |
US $1.08 |
||
|
9011908B07
|
9011908B07
90119-08B07 New Genuine Part |
90119-08B07 |
US $1.43 |
||
|
9011906686
|
9011906686
90119-06686 BOLT WWASHER |
90119-06686 |
US $0.96 |
||
|
9011906932
|
9011906932
90119-06932 BOLT WWASHER |
90119-06932 |
from US $0.63 |
||
|
9011908718
|
9011908718
90119-08718 BOLT WWASHER |
90119-08718 |
from US $1.92 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.61 |
||
|
9090540005
|
9090540005
90905-40005 New Genuine Part |
90905-40005 |
US $1.60 |
||
|
9095901369
|
9095901369
90959-01369 Clamp, Hood Lock Control Cable |
90959-01369 |
from US $0.97 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.76 |
||
