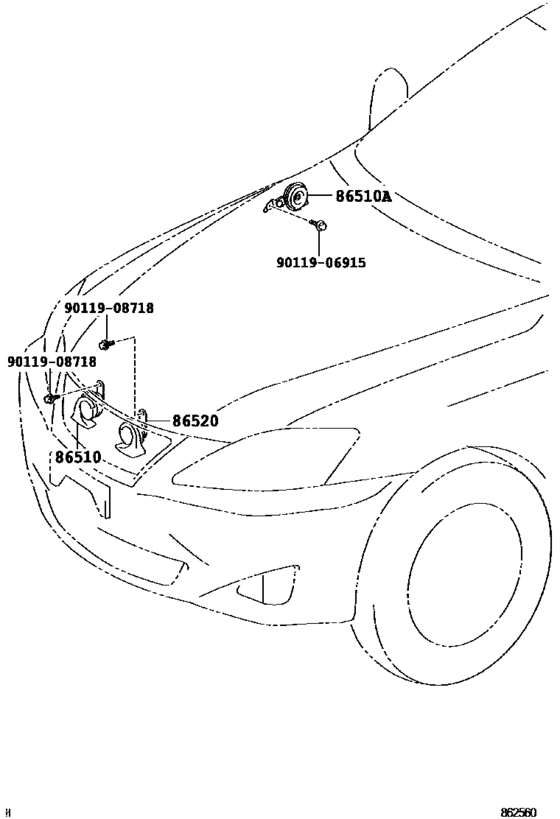

Horn ([08.2005 - ] (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86510
|
86510
86510-30670 Horn Assy, High PitchedHIGH PITCHED [08.2005 - 08.2008] GSE20..ATM KOREA SPEC |
86510-30670 |
US $32.47 |
||
|
86510
|
86510
86510-30700 Horn Assy, High Pitched[08.2005 - 08.2008] GSE2# |
86510-30700 |
from US $36.79 |
||
|
86510A
|
86510A
86510-30660 Horn Assy, SecuritySECURITY [08.2005 - 08.2008] GSE2# |
86510-30660 |
from US $32.47 |
||
|
86520
|
86520
86520-30580 Horn Assy, Low PitchedLOW PITCHED [08.2005 - 08.2008] GSE20..ATM KOREA SPEC |
86520-30580 |
US $32.47 |
||
|
86520
|
86520
86520-30610 Horn Assy, Low Pitched[08.2005 - 08.2008] GSE2# |
86520-30610 |
from US $36.79 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9011908718
|
9011908718
90119-08718 BOLT WWASHER |
90119-08718 |
from US $1.92 |
