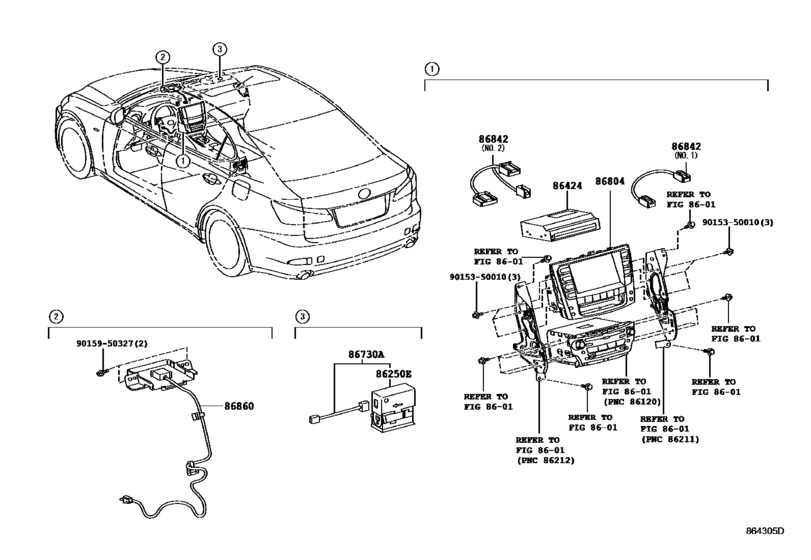

Navigation & Front Monitor Display ([08.2009 - 08.2012] DVD NAVIGATION SYSTEM (0908-1208)ATM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86250E
|
86250E
86250-52030 Microphone Assy, Amplifier[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86250-52030 |
US $61.44 |
||
|
86424
|
86424
86424-53010
Deck, Dvd
[08.2009 - 08.2010] GSE20..ATM KOREA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(D VD NAVIGATION) |
86424-53010 |
— | ||
|
86730A
|
86730A
86730-53020
Microphone Assy, Telephone
[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86730-53020 |
— | ||
|
86730A
|
86730A
86730-53040
Microphone Assy, Telephone
[08.2009 - 08.2010] GSE2#; GSE20,21..ATM USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&CAR TELEPHONE-WITHOUT; GSE20..ATM KOREA SPEC&CAR TELEPHONE-WITHOUT; GSE21 MEXICO SPEC&CAR TELEPHONE-WITHOUT; GSE2# CAR TELEPHONE-WITHOUT |
86730-53040 |
— | ||
|
86804
|
86804
86804-53370
Cover Sub-Assy, Navigation Computer
[08.2009 - 08.2010] GSE20,25..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE20,25 AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86804-53370 |
— | ||
|
86804
|
86804
86804-53460
Cover Sub-Assy, Navigation Computer
[08.2009 - 08.2010] GSE20..ATM KOREA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(D VD NAVIGATION) |
86804-53460 |
— | ||
|
86804
|
86804
86804-53760
Cover Sub-Assy, Navigation Computer
[11.2011 - 08.2012] GSE20,25..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE20,25..ATM AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86804-53760 |
— | ||
|
86804
|
86804
86804-53840
Cover Sub-Assy, Navigation Computer
[08.2011 - 11.2011] GSE20..ATM KOREA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(D VD NAVIGATION); GSE20..ATM KOREA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WI TH(DVD NAVIGATION) |
86804-53840 |
— | ||
|
86804
|
86804
86804-53C50
Cover Sub-Assy, Navigation Computer
[11.2011 - 08.2012] GSE20..ATM KOREA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(D VD NAVIGATION); GSE20..ATM KOREA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WI TH(DVD NAVIGATION) |
86804-53C50 |
— | ||
|
86804
|
86804
86804-53C80
Cover Sub-Assy, Navigation Computer
[07.2011 - 08.2011] GSE20,25..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE20,25..ATM AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86804-53C80 |
— | ||
|
86804
|
86804
86804-53D00
Cover Sub-Assy, Navigation Computer
[08.2011 - 11.2011] GSE20,25..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE20,25..ATM AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86804-53D00 |
— | ||
|
86842
|
86842
86842-53030
Wire, Navigation, No.1
[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.1; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION,NO.1 |
86842-53030 |
— | ||
|
86842
|
86842
86842-53050
Wire, Navigation, No.1
[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.2; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION,NO.2 |
86842-53050 |
— | ||
|
86842
|
86842
86842-53070
Wire, Navigation, No.1
[08.2010 - 08.2011] GSE20,21..ATM CANADA SPEC&F PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SY STEM-WITH(HDD NAVIGATION); GSE2#..ATM LUXURY PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION |
86842-53070 |
— | ||
|
86842
|
86842
86842-53080
Wire, Navigation, No.1
[08.2009 - 08.2010] GSE20..ATM KOREA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(D VD NAVIGATION),NO.1 |
86842-53080 |
— | ||
|
86842
|
86842
86842-53090
Wire, Navigation, No.1
[08.2009 - 08.2010] GSE20..ATM KOREA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(D VD NAVIGATION),NO.2 |
86842-53090 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 04.2013] GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER; GSE20 KOREA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20 KOREA SPEC&AUDIO-AM/FM DVD 13SPEAKER |
86842-53200 |
US $48.78 |
||
|
86860
|
86860
86860-53050 Antenna Assy, NavigationNAVIGATION [08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86860-53050 |
US $151.42 |
||
|
86860
|
86860
86860-53100
Antenna Assy, Navigation
[08.2012 -] GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER |
86860-53100 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
