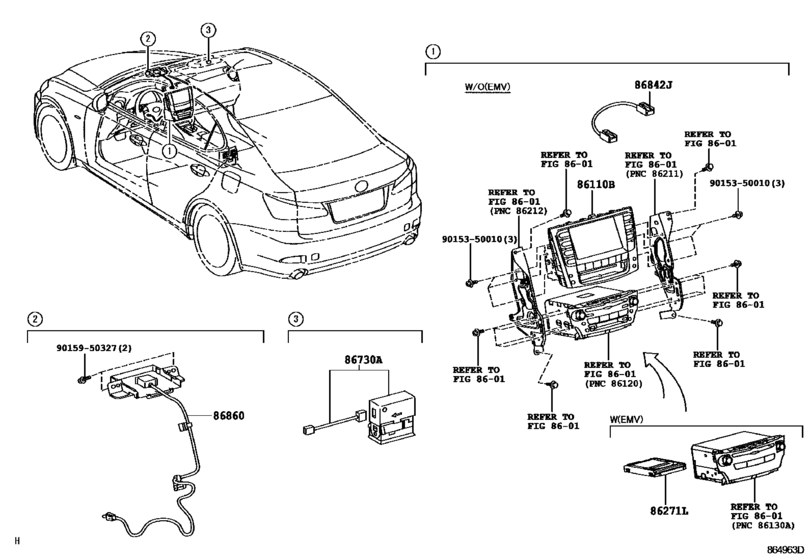

Navigation & Front Monitor Display ([08.2012 - ] (1208- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86110B
|
86110B
86110-53130
Multi-Display Assy
[08.2012 - 04.2013] GSE20 DENSO,KOREA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20 DENSO,KOREA SPEC&AUDIO-AM/FM DVD 13SPEAKER |
86110-53130 |
— | ||
|
86110B
|
86110B
86110-53200
Multi-Display Assy
[08.2012 - 04.2013] GSE20,25 DENSO,AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20,25 DENSO,AUDIO-AM/FM DVD 13SPEAKER |
86110-53200 |
— | ||
|
86271L
|
86271L
86271-30681
Hard Disc
[08.2012 - 04.2013] GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER; GSE2# CANADA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# CANADA SPEC&AUDIO-AM/FM DVD 13SPEAKER; GSE2# USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&AUDIO-AM/FM DVD 5.1CH |
86271-30681 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30683
Hard Disc
[08.2012 - 04.2013] GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER; GSE2# CANADA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# CANADA SPEC&AUDIO-AM/FM DVD 13SPEAKER; GSE2# USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&AUDIO-AM/FM DVD 5.1CH |
86271-30683 |
— | ||
|
86271L
|
86271L
86271-30720
Hard Disc
[08.2012 - 04.2013] GSE20 KOREA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20 KOREA SPEC&AUDIO-AM/FM DVD 13SPEAKER |
86271-30720 |
— | ||
|
86271L
|
86271L
86271-53050
Hard Disc
[08.2011 - 11.2011] GSE2#..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE2#..ATM AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86271-53050 |
— | ||
|
86271L
|
86271L
86271-60141
Hard Disc
[08.2009 - 08.2010] GSE2#..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86271-60141 |
— | ||
|
86271L
|
86271L
86271-60142
Hard Disc
[08.2010 - 07.2011] GSE20,21..ATM CANADA SPEC&F PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SY STEM-WITH(HDD NAVIGATION); GSE2#..ATM LUXURY PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION |
86271-60142 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-60143
Hard Disc
[08.2010 - 07.2011] GSE20,21..ATM CANADA SPEC&F PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SY STEM-WITH(HDD NAVIGATION); GSE2#..ATM LUXURY PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION |
86271-60143 |
— | ||
|
86271L
|
86271L
86271-60143
Hard Disc
[11.2011 - 07.2012] GSE2#..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE2#..ATM AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86271-60143 |
— | ||
|
86271L
|
86271L
86271-60144
Hard Disc
[07.2012 - 08.2012] GSE2#..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE2#..ATM AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86271-60144 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-60145
Hard Disc
[07.2012 - 08.2012] GSE2#..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE2#..ATM AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86271-60145 |
— | ||
|
86730A
|
86730A
86730-53020
Microphone Assy, Telephone
[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86730-53020 |
— | ||
|
86730A
|
86730A
86730-53040
Microphone Assy, Telephone
[08.2009 - 08.2010] GSE2#; GSE20,21..ATM USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&CAR TELEPHONE-WITHOUT; GSE20..ATM KOREA SPEC&CAR TELEPHONE-WITHOUT; GSE21 MEXICO SPEC&CAR TELEPHONE-WITHOUT; GSE2# CAR TELEPHONE-WITHOUT |
86730-53040 |
— | ||
|
86842J
|
86842J
86842-53070
Wire, Navigation, No.1
[08.2009 - 08.2010] GSE2#..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86842-53070 |
— | ||
|
86860
|
86860
86860-53050 Antenna Assy, NavigationNAVIGATION [08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86860-53050 |
US $151.42 |
||
|
86860
|
86860
86860-53100
Antenna Assy, Navigation
[08.2012 -] GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER |
86860-53100 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
